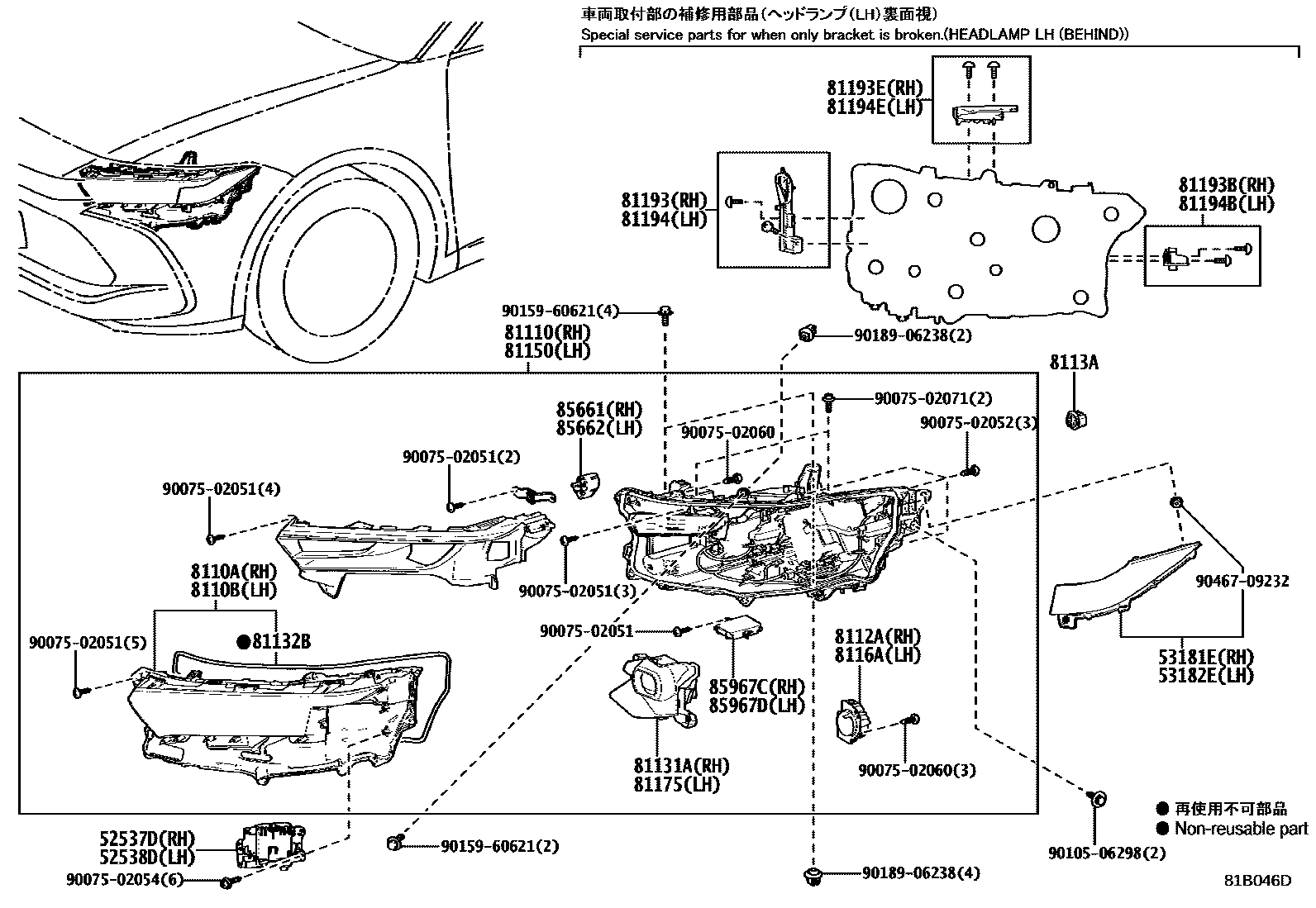

HEADLAMP
52537DRETAINER, FRONT BUMPER END, RH
52538DRETAINER, FRONT BUMPER END, LH
53181ECOVER, HEADLAMP, RH
53182ECOVER, HEADLAMP, LH
8110ALENS SUB-ASSY, HEADLAMP, RH
DECONTENT PACKAGE&HEADLAMP-LED(PROJECTOR) & WITH(*AHB)
MID LUX PACKAGE&HEADLAMP-TRINOCULAR FULL LED & WITH(*AHS)
CENTRAL ASIA SPEC&MID LUX PACKAGE&HEADLAMP-LED(PROJECTOR)
CENTRAL ASIA SPEC&HEADLAMP-LED(PROJECTOR)
8110BLENS SUB-ASSY, HEADLAMP, LH
DECONTENT PACKAGE&HEADLAMP-LED(PROJECTOR) & WITH(*AHB)
MID LUX PACKAGE&HEADLAMP-TRINOCULAR FULL LED & WITH(*AHS)
CENTRAL ASIA SPEC&MID LUX PACKAGE&HEADLAMP-LED(PROJECTOR)
CENTRAL ASIA SPEC&HEADLAMP-LED(PROJECTOR)
81110HEADLAMP ASSY, RH
TAIWAN SPEC&HEADLAMP-LED(PROJECTOR) & WITH(*AHB)
sub81105-30P71
DECONTENT PACKAGE&HEADLAMP-LED(PROJECTOR) & WITH(*AHB)
sub81105-30P71
DECONTENT PACKAGE&HEADLAMP-LED(PROJECTOR) & WITH(*AHB)
MID LUX PACKAGE&HEADLAMP-TRINOCULAR FULL LED & WITH(*AHS)
CENTRAL ASIA SPEC&HEADLAMP-LED(PROJECTOR)
CENTRAL ASIA SPEC&MID LUX PACKAGE&HEADLAMP-LED(PROJECTOR)
8112AUNIT, HEADLAMP CLEARANCE LED, NO.1 RH
DECONTENT PACKAGE&HEADLAMP-LED(PROJECTOR) & WITH(*AHB)
MID LUX PACKAGE&HEADLAMP-TRINOCULAR FULL LED & WITH(*AHS)
CENTRAL ASIA SPEC&MID LUX PACKAGE&HEADLAMP-LED(PROJECTOR)
81131AUNIT, HEADLAMP, RH
DECONTENT PACKAGE&HEADLAMP-LED(PROJECTOR) & WITH(*AHB)
MID LUX PACKAGE&HEADLAMP-TRINOCULAR FULL LED & WITH(*AHS)
CENTRAL ASIA SPEC&HEADLAMP-LED(PROJECTOR)
CENTRAL ASIA SPEC&MID LUX PACKAGE&HEADLAMP-LED(PROJECTOR)
81132BGASKET, HEADLAMP LENS
8113ALED, HEADLAMP FRONT TURN SIGNAL
DECONTENT PACKAGE&HEADLAMP-LED(PROJECTOR) & WITH(*AHB)
81150HEADLAMP ASSY, LH
TAIWAN SPEC&HEADLAMP-LED(PROJECTOR) & WITH(*AHB)
sub81106-30P71
DECONTENT PACKAGE&HEADLAMP-LED(PROJECTOR) & WITH(*AHB)
sub81106-30P71
DECONTENT PACKAGE&HEADLAMP-LED(PROJECTOR) & WITH(*AHB)
MID LUX PACKAGE&HEADLAMP-TRINOCULAR FULL LED & WITH(*AHS)
CENTRAL ASIA SPEC&MID LUX PACKAGE&HEADLAMP-LED(PROJECTOR)
CENTRAL ASIA SPEC&HEADLAMP-LED(PROJECTOR)
8116AUNIT, HEADLAMP CLEARANCE LED, NO.1 LH
DECONTENT PACKAGE&HEADLAMP-LED(PROJECTOR) & WITH(*AHB)
MID LUX PACKAGE&HEADLAMP-TRINOCULAR FULL LED & WITH(*AHS)
CENTRAL ASIA SPEC&MID LUX PACKAGE&HEADLAMP-LED(PROJECTOR)
81175UNIT ASSY, HEADLAMP, LH
DECONTENT PACKAGE&HEADLAMP-LED(PROJECTOR) & WITH(*AHB)
MID LUX PACKAGE&HEADLAMP-TRINOCULAR FULL LED & WITH(*AHS)
CENTRAL ASIA SPEC&HEADLAMP-LED(PROJECTOR)
CENTRAL ASIA SPEC&MID LUX PACKAGE&HEADLAMP-LED(PROJECTOR)
81193RETAINER, HEADLAMP PROTECTOR, UPPER RH
81193BRETAINER, HEADLAMP PROTECTOR, UPPER RH NO.2
81193ERETAINER, HEADLAMP PROTECTOR, UPPER RH NO.3
81194RETAINER, HEADLAMP PROTECTOR, UPPER LH
81194BRETAINER, HEADLAMP PROTECTOR, UPPER LH NO.2
81194ERETAINER, HEADLAMP PROTECTOR, UPPER LH NO.3
85661MOTOR, HEADLAMP LEVELING, RH
MID LUX PACKAGE&HEADLAMP-TRINOCULAR FULL LED & WITH(*AHS)
CENTRAL ASIA SPEC&MID LUX PACKAGE&HEADLAMP-LED(PROJECTOR)
DECONTENT PACKAGE&HEADLAMP-LED(PROJECTOR) & WITH(*AHB)
85662MOTOR, HEADLAMP LEVELING, LH
DECONTENT PACKAGE&HEADLAMP-LED(PROJECTOR) & WITH(*AHB)
85967CCOMPUTER, LIGHT CONTROL LED, RH
TAIWAN SPEC&HEADLAMP-LED(PROJECTOR) & WITH(*AHB)
sub8596A-30041
DECONTENT PACKAGE&HEADLAMP-LED(PROJECTOR) & WITH(*AHB)
sub8596A-30041
CENTRAL ASIA SPEC&MID LUX PACKAGE&HEADLAMP-LED(PROJECTOR)
MID LUX PACKAGE&HEADLAMP-TRINOCULAR FULL LED & WITH(*AHS)
DECONTENT PACKAGE&HEADLAMP-LED(PROJECTOR) & WITH(*AHB)
85967DCOMPUTER, LIGHT CONTROL LED, LH
TAIWAN SPEC&HEADLAMP-LED(PROJECTOR) & WITH(*AHB)
sub8596A-30031
DECONTENT PACKAGE&HEADLAMP-LED(PROJECTOR) & WITH(*AHB)
sub8596A-30031
CENTRAL ASIA SPEC&MID LUX PACKAGE&HEADLAMP-LED(PROJECTOR)
MID LUX PACKAGE&HEADLAMP-TRINOCULAR FULL LED & WITH(*AHS)
DECONTENT PACKAGE&HEADLAMP-LED(PROJECTOR) & WITH(*AHB)
9007502051
main90075-02051
9007502052
main90075-02052
9007502054
main90075-02054
9007502060
main90075-02060
9007502071
main90075-02071
9010506298
main90105-06298
9015960621
main90159-60621
9018906238
main90189-06238
9046709232
main90467-09232
33 parts on this diagram · 2 diagrams in section
