SIDE MOULDING

0001 1ROOF & DOOR MOULDING 0002 1ARCH & DOOR MOULDING

67495CCOVER, FRONT DOOR FRONT LOWER FRAME, UPPER RH

main67401-30290iAZSH30..M202306-202404

main67495-30140iAZSH3#,TZSH35202301-202302

main67495-30141iAZSH3#,TZSH35202302-202306

67496CCOVER, FRONT DOOR FRONT LOWER FRAME, UPPER LH

main67402-30290iAZSH30..RHD202306-202503

main67496-30140iAZSH3#,TZSH35202301-202302

main67496-30141iAZSH3#,TZSH35202302-202306

75551EMOULDING, ROOF DRIP SIDE FINISH, RH

main75551-30570iAZSH30..RHD202301-202503

main75551-30580iTZSH35;AZSH35..LHD202301

75552EMOULDING, ROOF DRIP SIDE FINISH, LH

main75552-30570iAZSH30..RHD202301-202503

main75552-30580iTZSH35;AZSH35..LHD202301

75561CLIP, ROOF DRIP SIDE FINISH MOULDING, NO.1

main75561-52050×4iAZSH30..M202301-202404

75710MOULDING ASSY, FRONT DOOR BELT, RH

main75710-30570supersedes 75710-30560iAZSH30..M202301-202404

BODY COLOR-TWO-TONES

75720MOULDING ASSY, FRONT DOOR BELT, LH

main75720-30570supersedes 75720-30560iAZSH30..M202301-202404

BODY COLOR-TWO-TONES

75730MOULDING ASSY, REAR DOOR BELT, RH

main75730-30530supersedes 75730-30520iAZSH30..RHD202301-202503

BODY COLOR-TWO-TONES

75740MOULDING ASSY, REAR DOOR BELT, LH

main75740-30530supersedes 75740-30520iAZSH30..RHD202301-202503

BODY COLOR-TWO-TONES

75753MOULDING, FRONT DOOR WINDOW FRAME, UPPER RH

main75753-30150iAZSH30..M202301-202404

75754AMOULDING, FRONT DOOR WINDOW FRAME, UPPER LH

main75754-30150iAZSH30..M202301-202404

75755AMOULDING, FRONT DOOR WINDOW FRAME, RH(CENTER PILLAR SIDE)

main75755-30200iAZSH30..M202301-202404

75756DMOULDING, FRONT DOOR WINDOW FRAME, LH(CENTER PILLAR SIDE)

main75756-30200iAZSH35,TZSH35;AZSH30..LHD..(B,G)202301

75761BMOULDING, REAR DOOR WINDOW FRAME, RH(CENTER PILLAR SIDE)

main75761-30180iAZSH30..M202301-202404

75762BMOULDING, REAR DOOR WINDOW FRAME, LH(CENTER PILLAR SIDE)

main75762-30180iAZSH30..M202301-202404

75763AMOULDING, REAR DOOR WINDOW FRAME, UPPER RH

main75763-30220iAZSH30..M202301-202404

75764AMOULDING, REAR DOOR WINDOW FRAME, UPPER LH

main75764-30220iAZSH30..M202301-202404

75765BMOULDING, REAR DOOR WINDOW FRAME, RH(REAR PILLAR SIDE)

main75765-30180iAZSH30..M202301-202404

75766BMOULDING, REAR DOOR WINDOW FRAME, LH(REAR PILLAR SIDE)

main75766-30180iAZSH30..M202301-202404

75792CLIP, DOOR WINDOW FRAME MOULDING

main75792-47010×4iAZSH30..M202301-202404

9026904051

main90269-04051

9046705175

main90467-05175

9046707227

main90467-07227

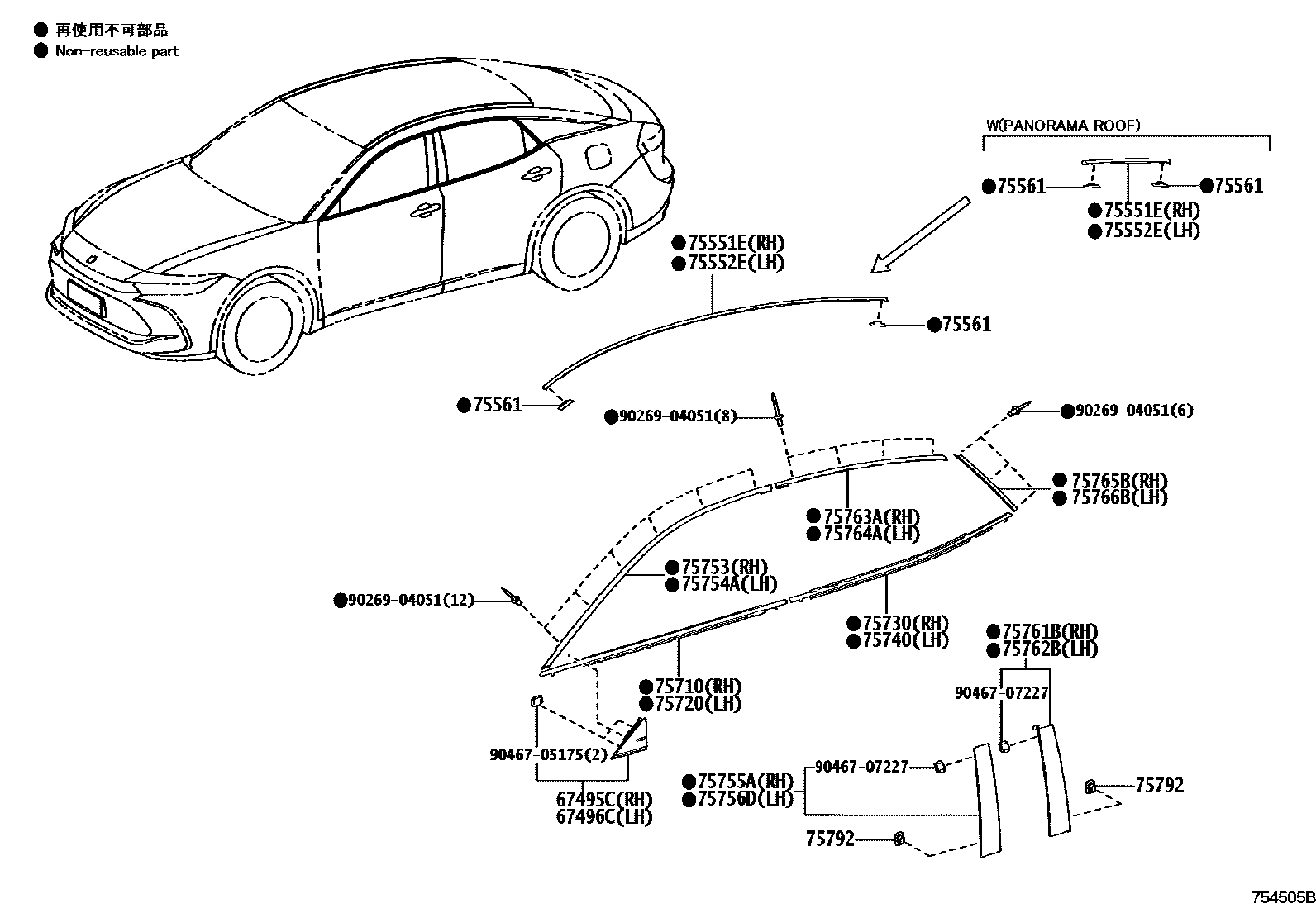

23 parts on this diagram · 2 diagrams in section
