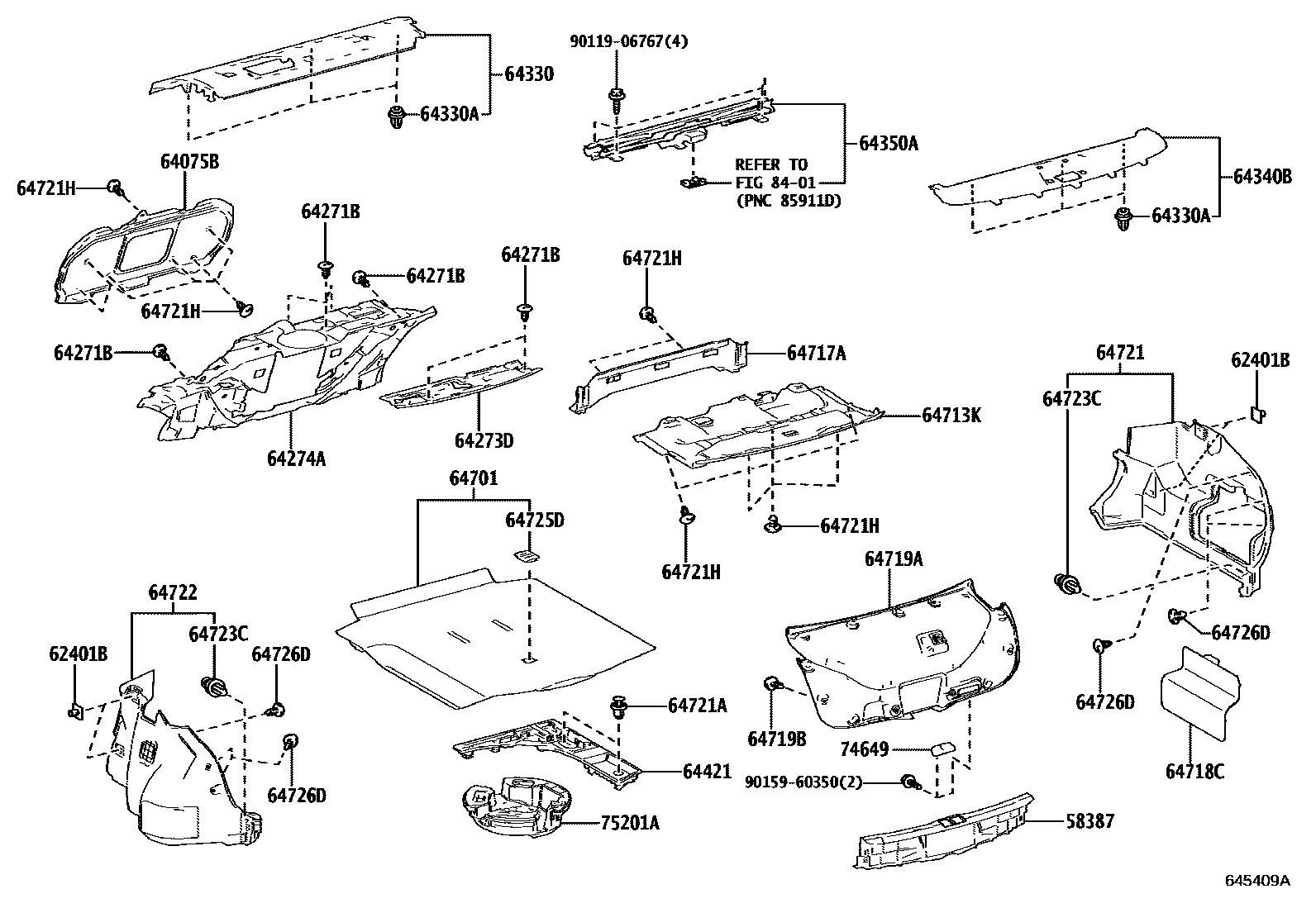

PACKAGE TRAY PANEL & LUGGAGE COMPARTMENT MAT
58387PLATE, REAR FLOOR FINISH
BLACK,TRIM0#,2#
BLACK,TRIM2#
62401BFASTENER, HOOK
64075BCOVER, LUGGAGE COMPARTMENT TRIM, FRONT
MID LUX PACKAGE,BLACK,TRIM0#,2#
BLACK,TRIM0#,2#
64271BCLIP(FOR ROOM PARTITION BOARD)
DECONTENT PACKAGE,BLACK
sub90467-08186
64273DPAD, ROOM PARTITION, NO.1
64274APAD, ROOM PARTITION, NO.2
MID LUX PACKAGE
DECONTENT PACKAGE
64330PANEL ASSY, PACKAGE TRAY TRIM
BLACK,TRIM0#,2#
DECONTENT PACKAGE,BLACK,TRIM0#,2#
BLACK,TRIM2#
BLACK,TRIM0#,2#
BLACK,TRIM2#
BLACK,TRIM0#,2#
BLACK,TRIM0#,2#
MID LUX PACKAGE,BLACK,TRIM0#,2#
64330ACLIP(FOR PACKAGE TRAY TRIM PANEL)
DECONTENT PACKAGE
MID LUX PACKAGE
64340BPANEL ASSY, PACKAGE TRAY TRIM, NO.2
MID LUX PACKAGE,BLACK,TRIM0#,2#
BLACK,TRIM0#,2#
64350ASHADE ASSY, REAR WINDOW
MID LUX PACKAGE
64421TRAY SUB-ASSY, LUGGAGE COMPARTMENT
SPARE TIRE-TEMPORARY(T165/80D17)
64701MAT SUB-ASSY, LUGGAGE COMPARTMENT
BLACK,TRIM2#
TAIWAN SPEC&SPARE TIRE-WITHOUT(REPAIR KIT ONLY),BLACK,TRIM0#,2#
BLACK,TRIM0#,2#
BLACK,TRIM0#,2#
SPARE TIRE-TEMPORARY(T165/80D17),BLACK,TRIM2#
64713KCOVER, LUGGAGE COMPARTMENT TRIM, FRONT UPPER
MID LUX PACKAGE,BLACK,TRIM0#,2#
BLACK,TRIM0#,2#
DECONTENT PACKAGE,BLACK,TRIM0#,2#
BLACK,TRIM2#
BLACK,TRIM0#,2#
64717ACOVER, LUGGAGE COMPARTMENT TRIM, FRONT
BLACK,TRIM2#
BLACK,TRIM0#,2#
64718CCOVER, LUGGAGE TRIM SERVICE HOLE
BLACK,TRIM0#,2#
BLACK,TRIM2#
64719ACOVER, LUGGAGE COMPARTMENT DOOR
CENTRAL ASIA SPEC,BLACK,TRIM0#,2#
BLACK,TRIM2#
BLACK,TRIM0#,2#
AUTO & EASY CLOSER DOOR-WITH(EASY CLOSER & HANDS FREE *PBD),BLACK,TRIM0#,2#
BLACK,TRIM2#
BLACK,TRIM0#,2#
TAIWAN SPEC&AUTO & EASY CLOSER DOOR-WITH(HANDS FREE POWER BACK DOOR),BLACK,TRIM0#,2#
64719BCLIP(FOR LUGGAGE COMPARTMENT DOOR)
64721COVER, LUGGAGE COMPARTMENT TRIM, INNER RH
BLACK,TRIM2#
BLACK,TRIM0#,2#
CENTRAL ASIA SPEC,BLACK,TRIM0#,2#
BLACK,TRIM2#
BLACK,TRIM0#,2#
AUTO & EASY CLOSER DOOR-WITH(HANDS FREE POWER BACK DOOR),BLACK,TRIM0#,2#
AUTO & EASY CLOSER DOOR-WITH(EASY CLOSER & HANDS FREE *PBD),BLACK,TRIM0#,2#
64721ACLIP(FOR LUGGAGE COMPARTMENT TRIM INNER COVER)
SPARE TIRE-TEMPORARY(T165/80D17)
64721HCLIP(LUGGAGE COMPARTMENT)
64722COVER, LUGGAGE COMPARTMENT TRIM, INNER LH
BLACK,TRIM0#,2#
BLACK,TRIM2#
64723CCLIP, LUGGAGE COMPARTMENT TRIM COVER
64725DHOOK, LUGGAGE COMPARTMENT TRIM, NO.1
64726DCLIP, LUGGAGE TRIM, REAR
74649GRIP, LUGGAGE COMPARTMENT DOOR ASSIST
75201ABOX, TOOL
TAIWAN SPEC&SPARE TIRE-WITHOUT(REPAIR KIT ONLY)
SPARE TIRE-TEMPORARY(T165/80D17)
8401
9011906767
main90119-06767
9015960350
main90159-60350
29 parts on this diagram · 2 diagrams in section
