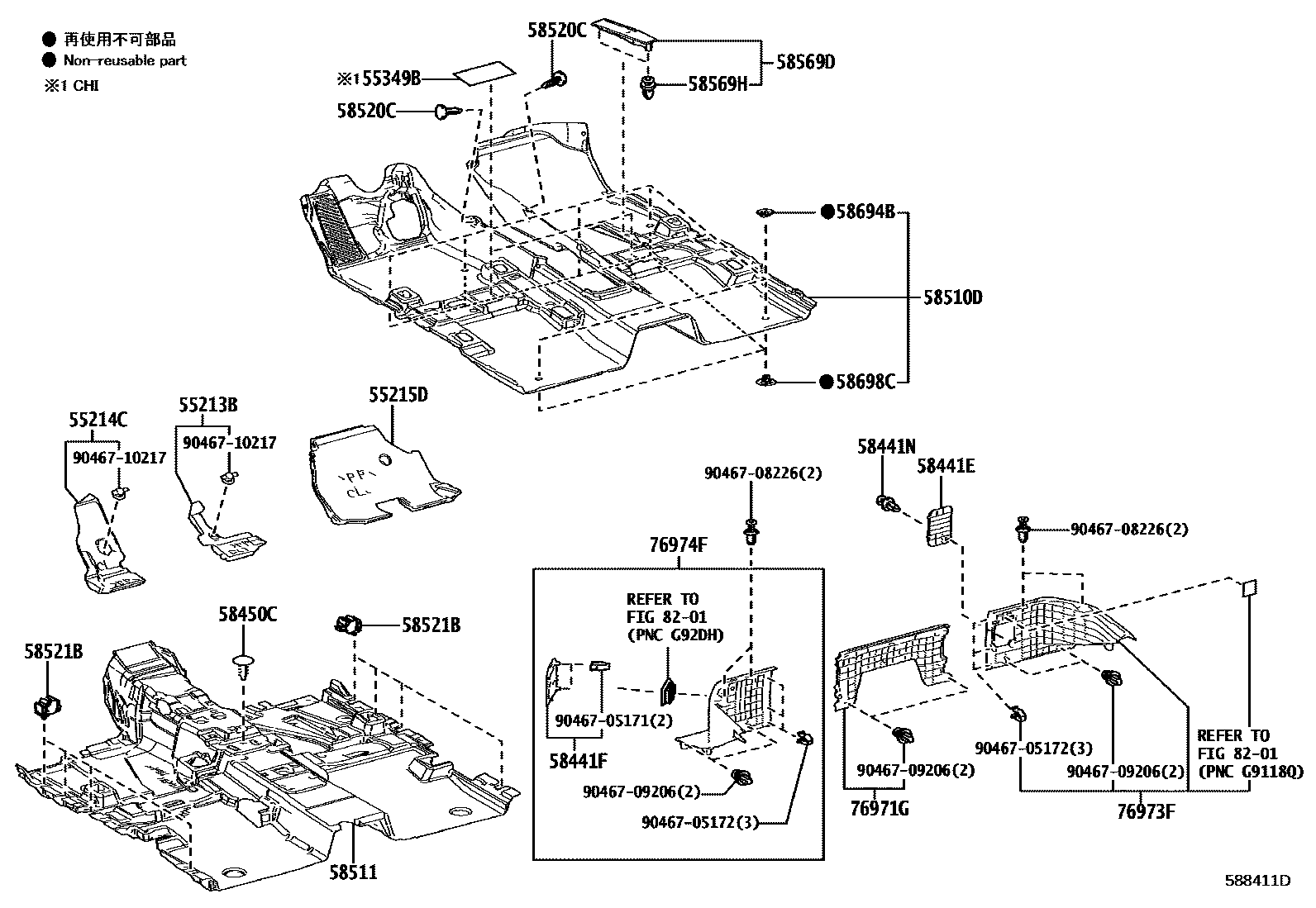

MAT & CARPET
55213BPAD, DASH PANEL INSULATOR, NO.1
55214CPAD, DASH PANEL INSULATOR, NO.2
55215DPAD, DASH PANEL INSULATOR, NO.3
55349BSHEET, ACTIVATED CARBON
58441ECOVER, BATTERY SERVICE HOLE
BLACK,TRIM2#
BLACK,TRIM0#,2#
58441FCOVER, BATTERY SERVICE HOLE
BLACK,TRIM2#
BLACK,TRIM0#,2#
58441NCLIP(FOR BATTERY SERVICE HOLE COVER)
58450CCLIP
58510DCARPET ASSY, FLOOR, FRONT
BLACK,TRIM0#,2#
BLACK,TRIM2#
BLACK,TRIM0#,2#
58511MAT, FLOOR, FRONT
58520CCLIP(FOR FRONT FLOOR CARPET)
58521BHOOK, FLOOR CARPET
58569DCOVER, FRONT FLOOR CAUTION PLATE
BLACK,TRIM2#
BLACK,TRIM0#,2#
BLACK,TRIM2#
BLACK,TRIM0#,2#
58569HCLIP, FRONT FLOOR CAUTION PLATE COVER, NO.1
58694BPLATE, MAT SET, UPPER
58698CPLATE, MAT SET, LOWER
76971GCOVER, REAR UNDER
BLACK,TRIM0#,2#
BLACK,TRIM2#
76973FCOVER, REAR UNDER SIDE, RH
BLACK,TRIM2#
BLACK,TRIM0#,2#
76974FCOVER, REAR UNDER SIDE, LH
BLACK,TRIM2#
BLACK,TRIM0#,2#
8201
9046705171
9046705172
9046708226
9046709206
9046710217
25 parts on this diagram · 2 diagrams in section
