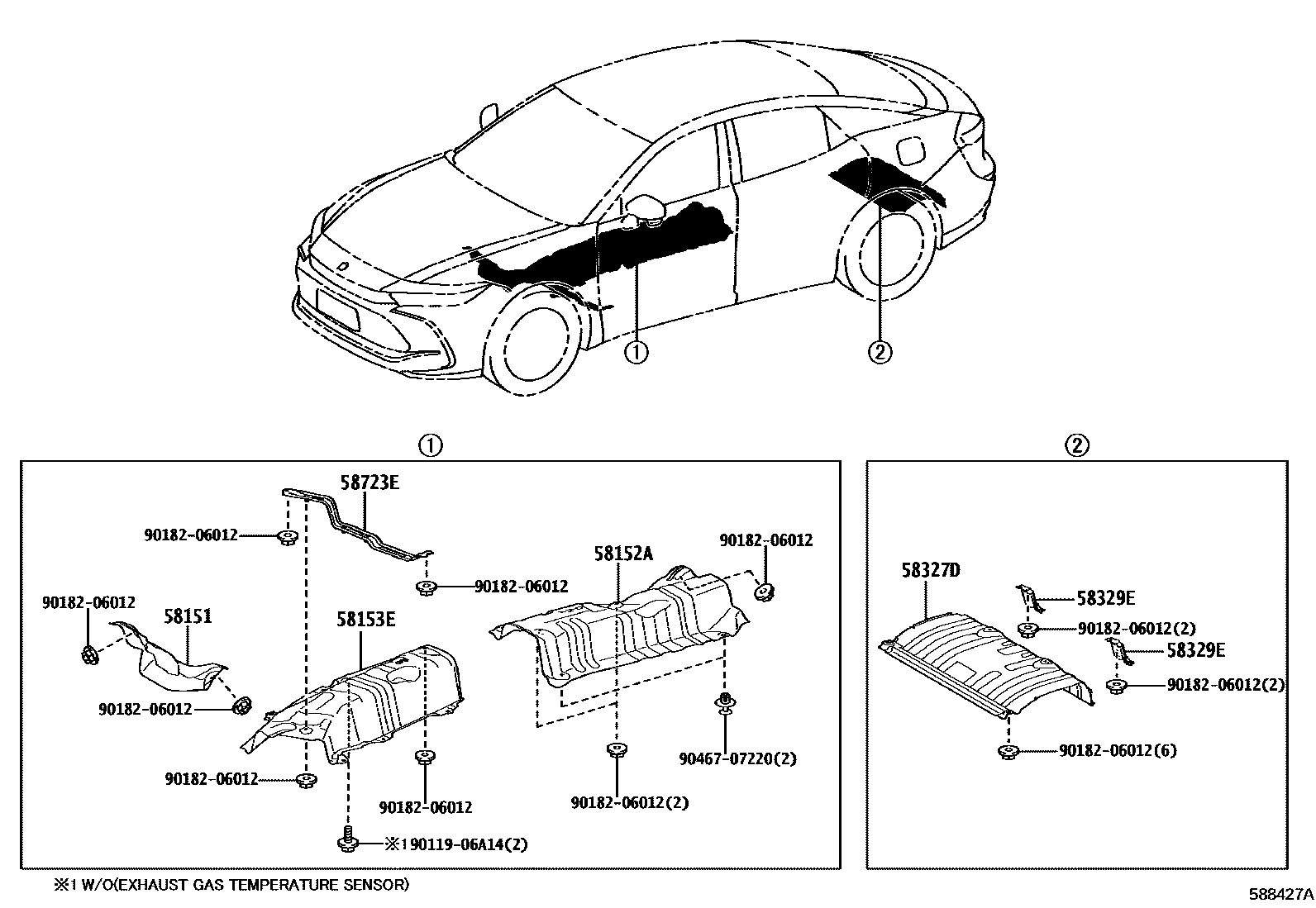

FLOOR INSULATOR

58151INSULATOR, FRONT FLOOR HEAT, NO.1

main58151-30230iTZSH35202301

main58151-42060iAZSH30..M202301-202503

58152AINSULATOR, FRONT FLOOR HEAT, NO.1 LOWER

main58152-30080iAZSH30..M202301-202503

58153EINSULATOR, FRONT FLOOR HEAT, NO.2

main58153-30050iAZSH35,TZSH35;AZSH30..LHD..(B,G)202301-202503

58327DINSULATOR, MAIN MUFFLER HEAT, UPPER

main58327-30110iAZSH30..M202301-202503

58329EINSULATOR, MAIN MUFFLER HART, REAR UPPER

main58329-30050iAZSH30..M202301-202503

58723ECUSHION, ENGINE SERVICE COVER

main58723-42040iAZSH30..M202301-202503

9011906A14

main90119-06A14

9018206012

main90182-06012

9046707220

main90467-07220

9 parts on this diagram · 1 diagram in section
