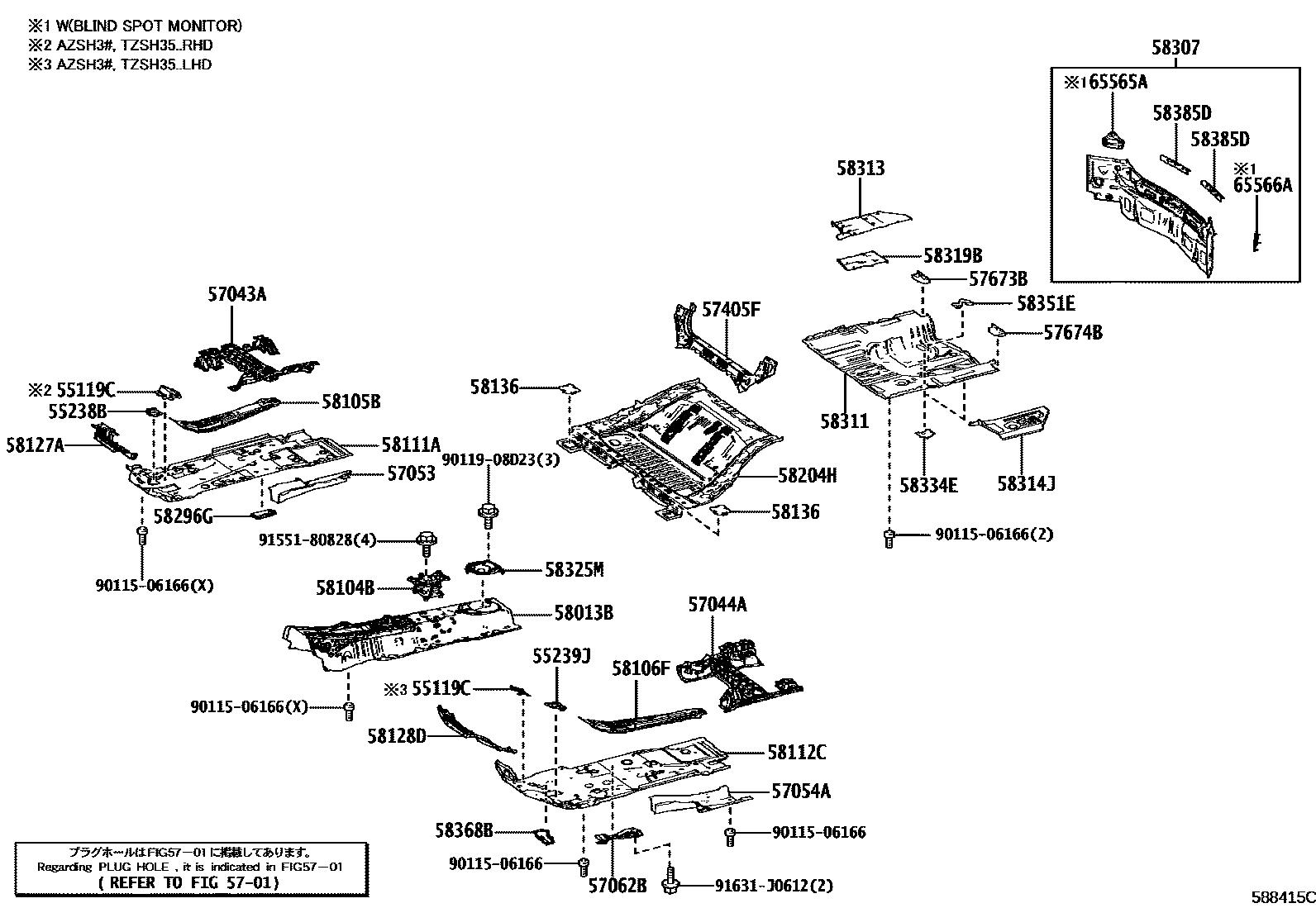

FLOOR PAN & LOWER BACK PANEL
55119CBRACKET, CLUTCH BOOSTER
55238BPLATE, DASH PANEL INSULATOR, LOWER RH
55239JPLATE, DASH PANEL INSULATOR, LOWER LH
5701
57043AREINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, REAR RH
57044AREINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, REAR LH
57053REINFORCEMENT SUB-ASSY, FRONT FLOOR CROSSMEMBER, RH
57054AREINFORCEMENT SUB-ASSY, FRONT FLOOR CROSSMEMBER, LH
57062BBRACKET SUB-ASSY, FUEL TANK SUPPORT, LH
57405FMEMBER SUB-ASSY, CENTER FLOOR CROSS, REAR
57673BBRACE, REAR FLOOR NO.2 CROSSMEMBER, RH
57674BBRACE, REAR FLOOR NO.2 CROSSMEMBER, LH
58013BPANEL SUB-ASSY, FRONT FLOOR, CENTER
58105BPANEL SUB-ASSY, FRONT FLOOR REAR UPPER SUB
58106FBRACKET SUB-ASSY, FRONT SEAT MOUNTING, OUTSIDE LH
58112CPAN, FRONT FLOOR, LH
58127AREINFORCE, FRONT CROSS TO FRONT PANEL MEMBER, RH
58128DREINFORCE, FRONT CROSS TO FRONT PANEL MEMBER, LH
58136COVER, FRONT FLOOR HOLE
58204HPAN SUB-ASSY, CENTER FLOOR, REAR
58296GBRACKET, FRONT FLOOR BRACE MOUNTING
58307PANEL SUB-ASSY, BODY LOWER BACK
CENTRAL ASIA SPEC&MID LUX PACKAGE
ST.KITTS SPEC
GUYANA SPEC
DJIBOUTI SPEC
NAMIBIA SPEC
MAURITIUS SPEC
UAE SPEC&DECONTENT PACKAGE
CENTRAL ASIA SPEC
MID LUX PACKAGE
58311PAN, REAR FLOOR
58313PANEL, REAR FLOOR SIDE, RH
58314JPANEL, REAR FLOOR SIDE, LH
58319BBRACKET, REAR FLOOR SIDE PANEL
58325MCOVER, REAR FLOOR SERVICE HOLE, NO.1
58334EREINFORCEMENT, REAR FLOOR PART PANEL, NO.2
58351EBRACKET, SPARE WHEEL CLAMP
58368BBRACKET, FUEL TUBE, NO.2
58385DBRACKET, REAR BUMPER COVER
65565APATCH, SIDE PANEL REAR END, RH
MID LUX PACKAGE
65566APATCH, SIDE PANEL REAR END, LH
MID LUX PACKAGE
9011506166
main90115-06166
9011908D23
main90119-08D23
9155180828
main91551-80828
91631J0612
main91631-J0612
39 parts on this diagram · 1 diagram in section
