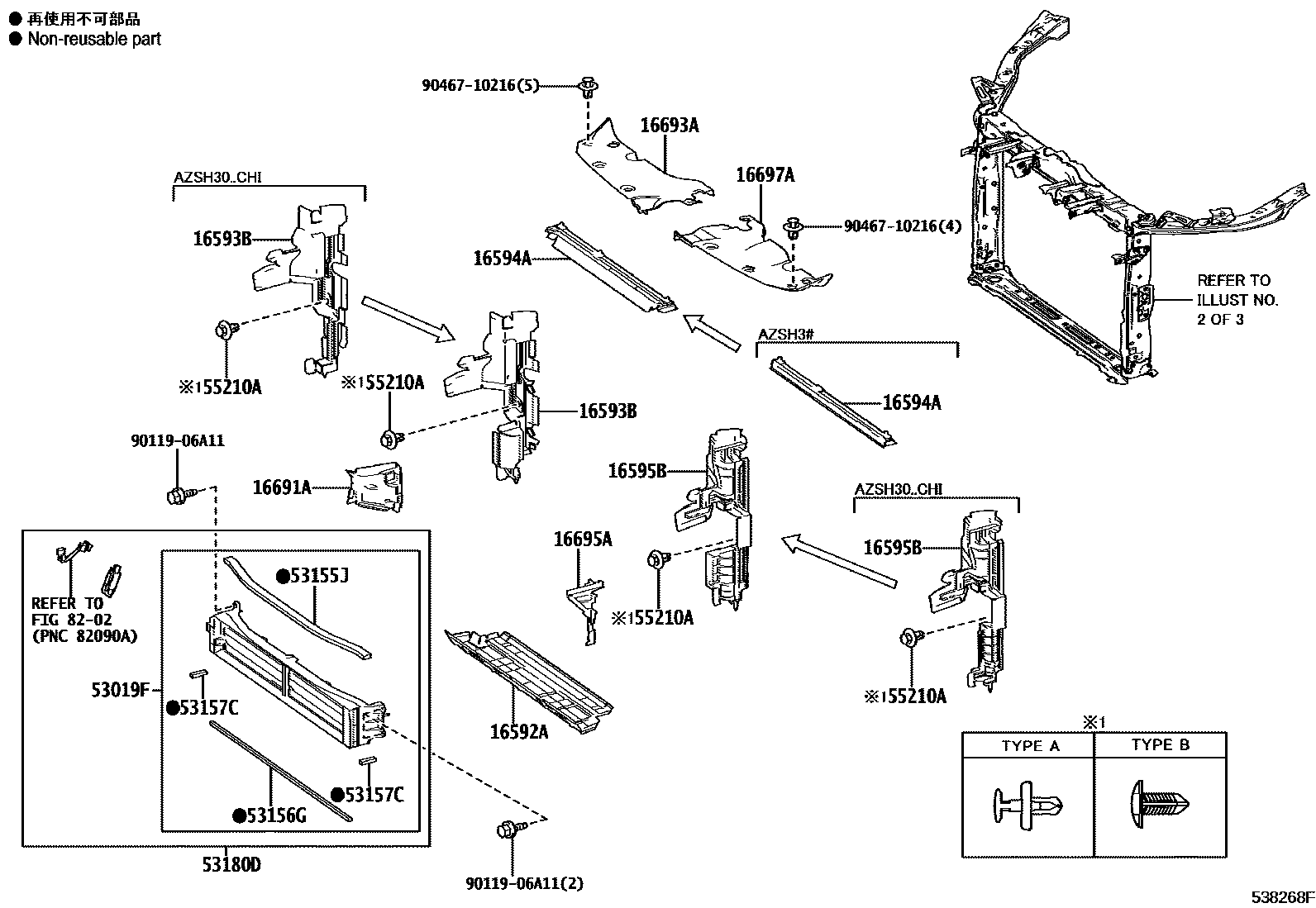

FRONT FENDER APRON & DASH PANEL

0001 1AIRGUIDE & RADIATOR SUPPORT C0002 1RADIATOR SUPPORT & FENDER APR0003 1DASH PANEL 0004 1DASH PANEL

16592AGUIDE, RADIATOR AIR, NO.3

main16592-25060iA25AFXS..AZSH30..RHD¥3,850202301-202503

16593BGUIDE, RADIATOR AIR, NO.1 RH

main16593-25300iA25AFXS..AZSH30..M¥3,850202301-202404

main16593-25310iT24AFTS..TZSH35¥3,850202301

main16593-25340iA25AFXS..AZSH30..RHD202301-202503

16594AGUIDE, RADIATOR AIR, NO.2

main16594-25020iT24AFTS..TZSH35¥2,380202301-202501

main16594-25040iA25AFXS..AZSH30..RHD¥1,540202301-202503

main16594-25050iT24AFTS..TZSH35202501

16595BGUIDE, RADIATOR AIR, NO.1 LH

main16595-25290iA25AFXS..AZSH30..G¥3,850202301-202404

main16595-25300iA25AFXS..AZSH30..LHD..B;A25AFXS,T24AFTS..AZSH35,TZSH35¥3,850202301-202503

16691APLATE, RADIATOR SIDE AIR GUIDE, FRONT RH

main16691-25160iA25AFXS..AZSH30..M¥1,440202301-202503

16693APLATE, RADIATOR SIDE AIR GUIDE, REAR RH

main16693-25030iA25AFXS..AZSH30..LHD..(B,G);A25AFXS,T24AFTS..AZSH35,TZSH35¥3,980202301-202503

16695APLATE, RADIATOR SIDE AIR GUIDE, FRONT LH

main16695-25160iA25AFXS..AZSH30..M¥1,440202301-202503

16697APLATE, RADIATOR SIDE AIR GUIDE, REAR LH

main16697-25030iA25AFXS..AZSH30..M¥4,500202301-202503

53019FSHUTTER SUB-ASSY, RADIATOR

main53019-33020iAZSH30..M¥9,100202301-202404

53155JSEAL, RADIATOR GRILLE, NO.1

main53155-33120iAZSH30..M¥550202301-202404

53156GSEAL, RADIATOR GRILLE, NO.2

main53156-33010iAZSH30..M¥370202301-202404

53157CSEAL, RADIATOR GRILLE, NO.3

main53157-33010iAZSH30..M¥370202301-202404

53180DSHUTTER ASSY, RADIATOR

main53180-33090iAZSH30..CHI¥22,600202301-202303

sub53180-33091¥22,700

main53180-33091iAZSH30..CHI¥22,700202304-202311

sub53180-33092¥20,600

main53180-33092iAZSH30..M¥20,600202312-202404

55210INSULATOR ASSY, DASH PANEL

main55210-30550iAZSH3#,TZSH35..RHD¥17,200202301-202405

sub55210-30551¥15,600

main55210-30551iAZSH30..RHD¥15,600202406-202503

main55210-30560iAZSH35,TZSH35..LHD;AZSH30..LHD..(B,G)202301-202405

sub55210-30561

main55210-30561iAZSH35,TZSH35..LHD;AZSH30..LHD..(B,G)202406

55210ACLIP

main90467-07220iAZSH30..M¥80202301-202503

TYPE A:REFER ILLUST.

main90467-08186-C3iAZSH30..RHD202301-202503

BLACK,TYPE B:REFER ILLUST.

sub90467-08186¥120

8202

9011906A11

main90119-06A11¥60

9046710216

main90467-10216¥100

18 parts on this diagram · 4 diagrams in section
