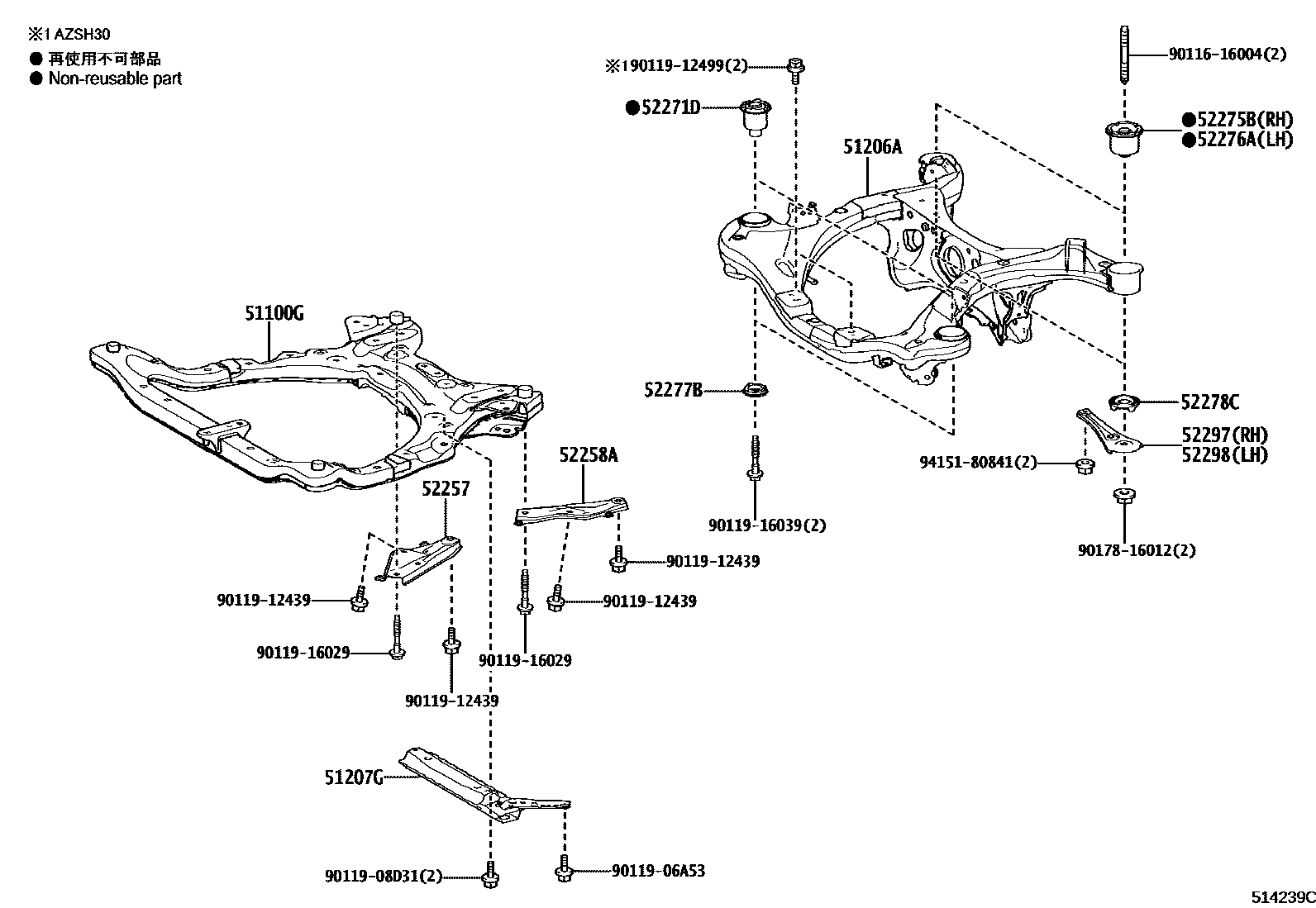

SUSPENSION CROSSMEMBER & UNDER COVER

0001 1SUSPENSION CROSSMEMBER 0002 1SUSPENSION CROSSMEMBER 0003 1UNDER COVER

51100GFRAME ASSY, FRONT

main51100-42051iAZSH35,TZSH35;AZSH30..LHD..(B,G)¥60,200202301-202503

51206AMEMBER SUB-ASSY, REAR SUSPENSION

main51206-30190iTZSH35..LHD..GEN¥66,200202404

TAIWAN SPEC

main51206-30200iAZSH30..RHD202301-202503

main51206-30210iTZSH35..GCC,GEN202301-202404

51207GBRACKET SUB-ASSY, STRUT BAR

main51207-30110iAZSH35;AZSH30..LHD..(B,G)¥2,220202301-202503

52257BRACE, FRONT SUSPENSION MEMBER, REAR RH

main52257-42020iAZSH30..M¥2,560202301-202503

52258ABRACE, FRONT SUSPENSION MEMBER, REAR LH

main52258-42020iAZSH30..M¥2,560202301-202503

52271DCUSHION, REAR SUSPENSION MEMBER BODY MOUNTING, FRONT

main52271-48040iTZSH35¥2,570202301

main52271-48050iAZSH30..M¥2,570202301-202503

52275BCUSHION, REAR SUSPENSION MEMBER BODY MOUNT, REAR RH

main52275-48030iAZSH30..RHD¥3,280202301-202503

52276ACUSHION, REAR SUSPENSION MEMBER BODY MOUNT, REAR LH

main52276-48020iAZSH35,TZSH35;AZSH30..LHD..(B,G)¥3,280202301-202503

52277BSTOPPER, REAR SUSPENSION MEMBER, REAR UPPER

main52277-48030iTZSH35¥1,010202301

main52277-48040iAZSH30..M¥840202301-202503

52278CSTOPPER, REAR SUSPENSION MEMBER, REAR LOWER

main52278-48020iAZSH30..RHD¥630202301-202503

52297BRACE, REAR SUSPENSION MEMBER, REAR LOWER RH

main52297-30060iAZSH30..M¥1,720202301-202503

52298BRACE, REAR SUSPENSION MEMBER, REAR LOWER LH

main52297-30060iAZSH30..M¥1,720202301-202503

9011616004

main90116-16004¥610

9011906A53

main90119-06A53¥90

9011908D31

main90119-08D31¥80

9011912439

main90119-12439¥190

9011912499

main90119-12499¥190

9011916029

main90119-16029¥490

9011916039

main90119-16039¥610

9017816012

main90178-16012¥220

9415180841

main94151-80841¥80

21 parts on this diagram · 3 diagrams in section
