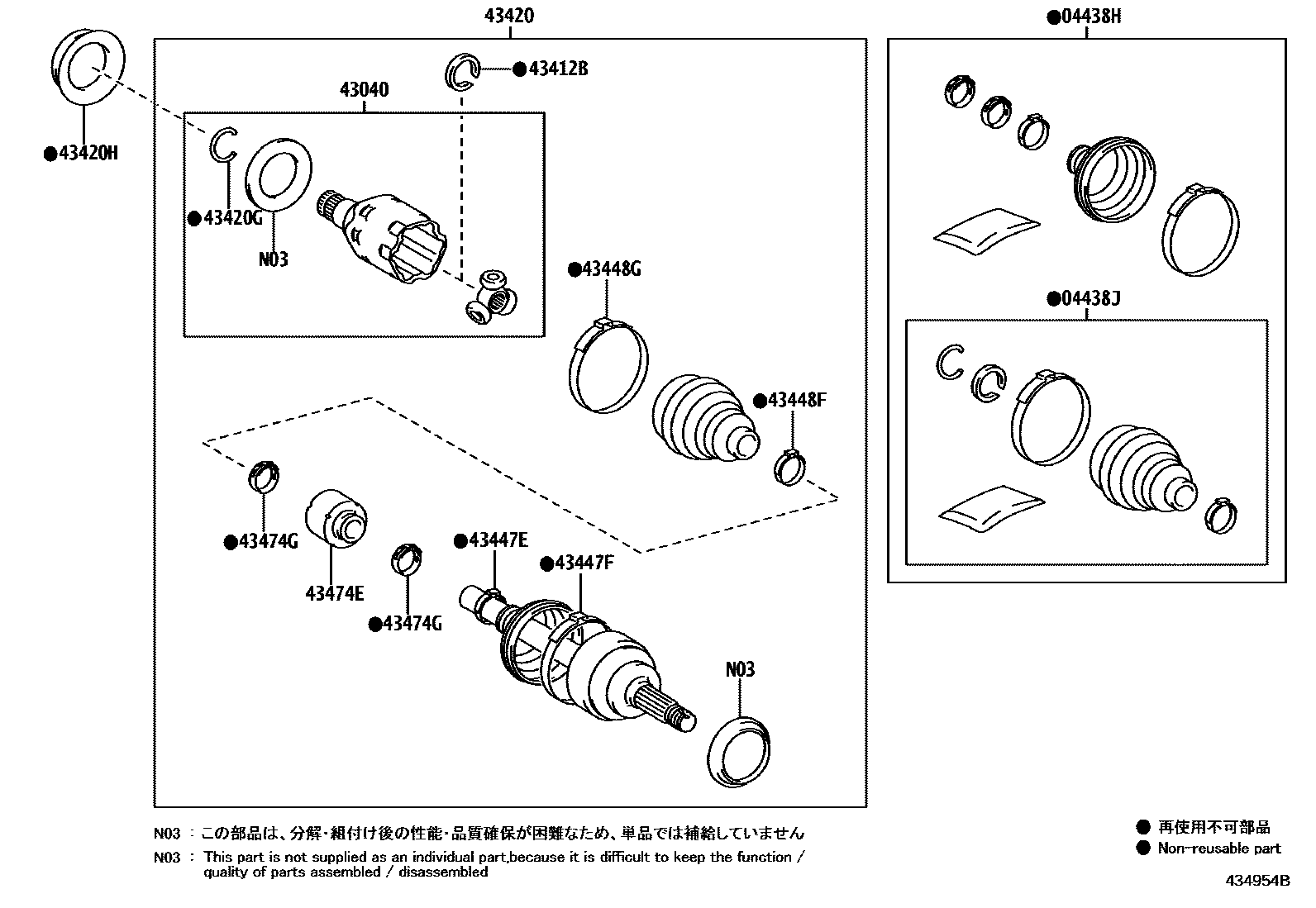

FRONT DRIVE SHAFT

0001 1LH 0002 1RH 0003 1LH 0004 1RH 0005 1

04438HBOOT KIT, FRONT DRIVE SHAFT, IN & OUTBOARD, LH

main04428-28170iAZSH30..M202301-202503

main04428-48150iTZSH35202301-202304

sub04428-48170

main04428-48170iTZSH35202305

04438JBOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, LH

main04437-28160iAZSH30..RHD202301-202503

main04438-48170iTZSH35202301

43040JOINT ASSY, FRONT DRIVE INBOARD, LH

main43040-28060iAZSH30..RHD202301-202503

main43040-48070iTZSH35202301

43412BRING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER LH)

main43425-28010iAZSH35;AZSH30..LHD..(B,G)202301-202503

main43425-42040iTZSH35202301

43420SHAFT ASSY, FRONT DRIVE, LH

main43420-30060iTZSH35202301

main43420-30070iAZSH35;AZSH30..B,G202301-202409

sub43420-30071

main43420-30071iAZSH30..RHD202410-202503

43420GRING, HOLE SNAP (FOR FRONT DRIVE SHAFT LH)

main43425-42060iTZSH35202301

main90521-33002iAZSH30..M202301-202503

43420HOIL SEAL, FRONT DRIVE SHAFT, LH

main90311-50058iAZSH30..M202301-202503

43447ECLAMP (FOR FRONT AXLE OUTBOARD JOINT BOOT LH)

main42345-28050iAZSH30..M202301-202503

main42345-48240iTZSH35202301

43447FCLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT LH)

main42345-48280iTZSH35202301

main42345-78090iAZSH30..RHD202301-202503

43448FCLAMP (FOR FRONT AXLE INBOARD JOINT BOOT LH)

main42345-28050iAZSH30..M202301-202503

main42345-48240iTZSH35202301

43448GCLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT LH)

main42345-28040iAZSH30..M202301-202503

main42345-48270iTZSH35202301

43474EDAMPER, FRONT DRIVE SHAFT, LH

main43474-42050iAZSH35;AZSH30..LHD..(B,G)202301-202503

main43474-42080iTZSH35202301

43474GCLAMP (FOR FRONT DRIVE SHAFT DAMPER LH)

main42345-12090iAZSH30..M202301-202503

main42345-42130iTZSH35202301-202304

sub42345-42250

main42345-42250iTZSH35202305

13 parts on this diagram · 5 diagrams in section
