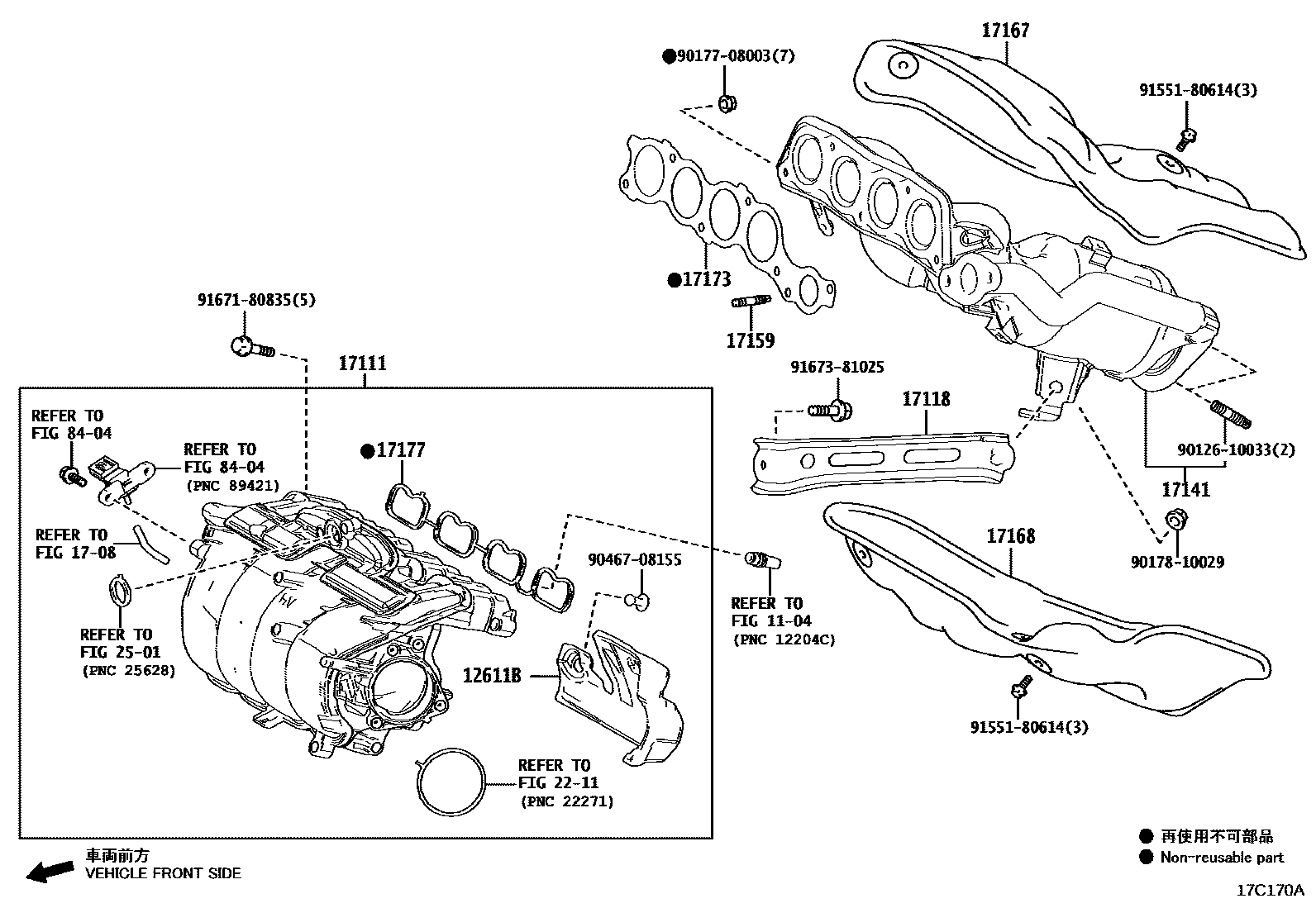

MANIFOLD

0001 1 0002 1 0003 1 0004 1

1104

12611BCOVER, ENGINE, NO.1

main12613-25020iA25AFXS..AZSH30..M202301-202503

1708

17111MANIFOLD, INTAKE

main17120-25020iA25AFXS..AZSH30..M202301-202503

main17120-25080iT24AFTS..TZSH35202301

17118STAY, MANIFOLD

main17118-25030iA25AFXS..AZSH30..M202301-202503

main17118-25040iT24AFTS..TZSH35202301

17141MANIFOLD, EXHAUST

main17141-25590iA25AFXS..AZSH30..G202301-202404

main17141-25630iA25AFXS..AZSH35;A25AFXS..AZSH30..LHD..B202301-202503

17159BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)

main90126-08052iA25AFXS..AZSH30..M202301-202503

17167INSULATOR, EXHAUST MANIFOLD HEAT, NO.1

main17167-25030iA25AFXS..AZSH30..G202301-202404

main17167-25040iA25AFXS..AZSH30..RHD202301-202503

17168INSULATOR, EXHAUST MANIFOLD HEAT, NO.2

main17168-25040iA25AFXS..AZSH30..RHD202301-202503

17173GASKET, EXHAUST MANIFOLD TO HEAD

main17173-25020iA25AFXS..AZSH30..M202301-202503

main17173-25030iT24AFTS..TZSH35202301

17177GASKET, INTAKE MANIFOLD TO HEAD, NO.1

main17171-25010iA25AFXS..AZSH35;A25AFXS..AZSH30..LHD..(B,G)202301-202503

main17177-25040iT24AFTS..TZSH35202301

2211

2501

8404

9012610033

main90126-10033

9017708003

main90177-08003

9017810029

main90178-10029

9046708155

main90467-08155

9155180614

main91551-80614

9167180835

main91671-80835

9167381025

main91673-81025

21 parts on this diagram · 4 diagrams in section
