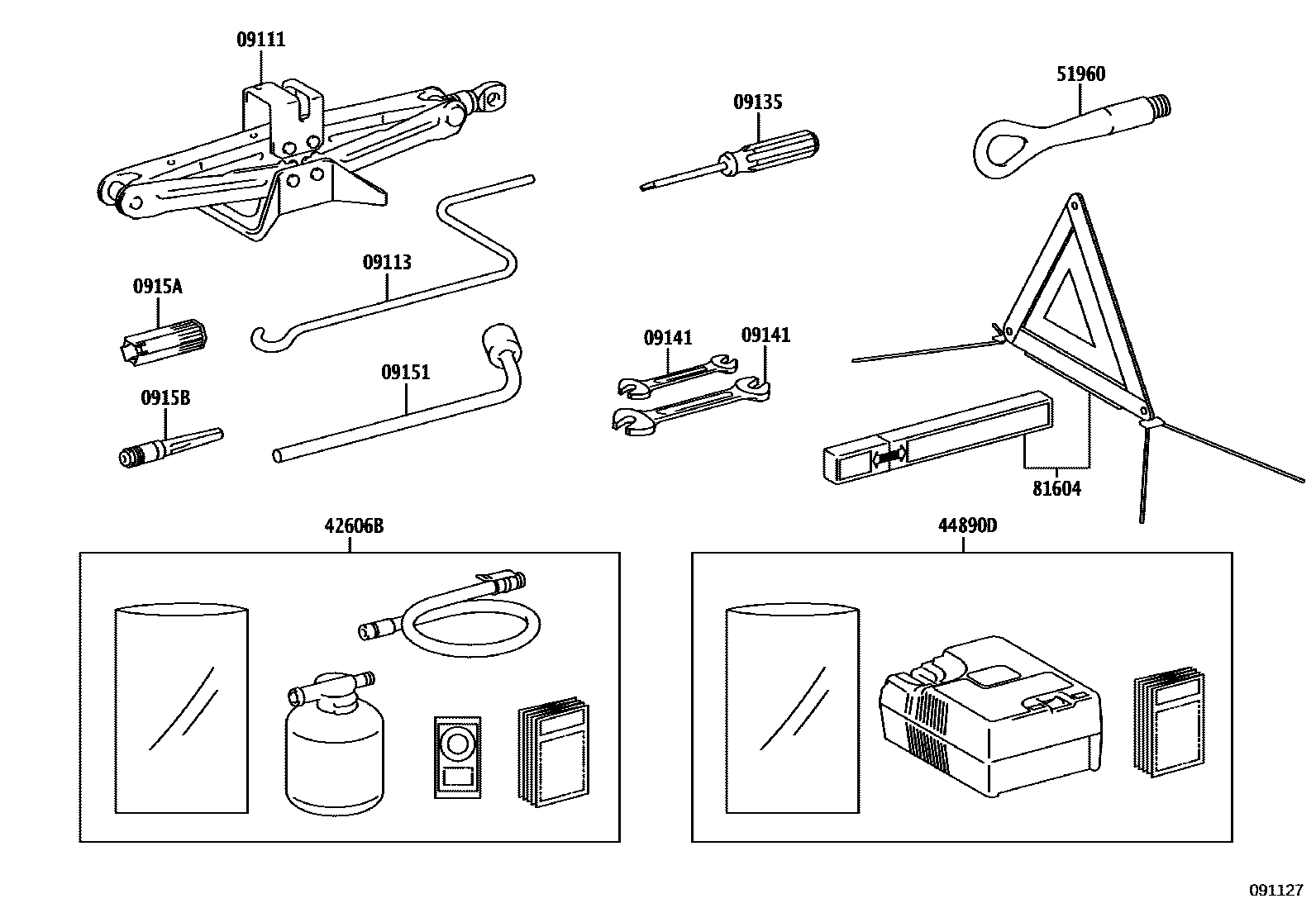

STANDARD TOOL

09111JACK SUB-ASSY

main09111-30200iAZSH30..GCC;AZSH35,TZSH35..GCC,GEN¥8,100202301

TAIWAN SPEC

main09111-30200iAZSH30..RHD¥8,100202301-202504

main09111-30200iAZSH30..GCC;AZSH35,TZSH35..GCC,GEN¥8,100202301

SPARE TIRE-TEMPORARY(T165/80D17)

09113HANDLE, JACK

main09113-30060iTZSH35..CHI¥980202301

TAIWAN SPEC

main09113-30060iAZSH30..RHD¥980202301-202504

main09113-30060iAZSH30..GCC;AZSH35,TZSH35..GCC,GEN¥980202301

SPARE TIRE-TEMPORARY(T165/80D17)

09135DRIVER, SCREW

main99915-10700iAZSH30..LHD..GEN¥460202301-202504

main99915-10700iAZSH30..GCC;AZSH35,TZSH35..GCC,GEN¥460202301

TAIWAN SPEC

09141SPANNER

main99914-10810iAZSH30..LHD..GEN¥240202301-202504

8 X 10

main99914-10810iAZSH30..GCC;AZSH35,TZSH35..GCC,GEN¥240202301

8 X 10,TAIWAN SPEC

main99914-11214iAZSH30..RHD¥400202301-202504

12 X 14

09151WRENCH, HUB BOLT BOX

main09151-78010iAZSH30..GCC;AZSH35,TZSH35..GCC,GEN¥1,270202301

TAIWAN SPEC

main09151-78010iAZSH30..RHD¥1,270202301-202504

main09151-78010iAZSH30..GCC;AZSH35,TZSH35..GCC,GEN¥1,270202301

SPARE TIRE-TEMPORARY(T165/80D17)

0915ASOCKET, HUB BOLT TEMPORARY SETTING

main0915A-53010iAZSH30..RHD¥1,000202301-202504

main0915A-53010iAZSH30..GCC;AZSH35,TZSH35..GCC,GEN¥1,000202301

TAIWAN SPEC

main0915A-53010iAZSH30..GCC;AZSH35,TZSH35..GCC,GEN¥1,000202301

SPARE TIRE-TEMPORARY(T165/80D17)

0915BPIN, WHEEL GUIDE

main0915B-53010iAZSH30..RHD¥820202301-202504

main0915B-53010iAZSH30..GCC;AZSH35,TZSH35..GCC,GEN¥820202301

TAIWAN SPEC

main0915B-53010iAZSH30..GCC;AZSH35,TZSH35..GCC,GEN¥820202301

SPARE TIRE-TEMPORARY(T165/80D17)

42606BREPAIR KIT, TUBELESS TIRE

main42606-42110iAZSH30..M¥3,600202301-202404

main42606-42110iAZSH30,TZSH35..(A,G)..CHI¥3,600202301

SPARE TIRE-TEMPORARY(T165/80D17)

44890DCOMPRESSOR ASSY, AIR

main44890-42070iAZSH30..M¥7,500202301-202404

51960HOOK ASSY, FRONT

main51961-48100iAZSH30..M¥2,000202301-202503

81604REFLECTOR SET, TRIANGLE

main81604-78010iAZSH30..M¥3,540202301-202404

11 parts on this diagram · 1 diagram in section
