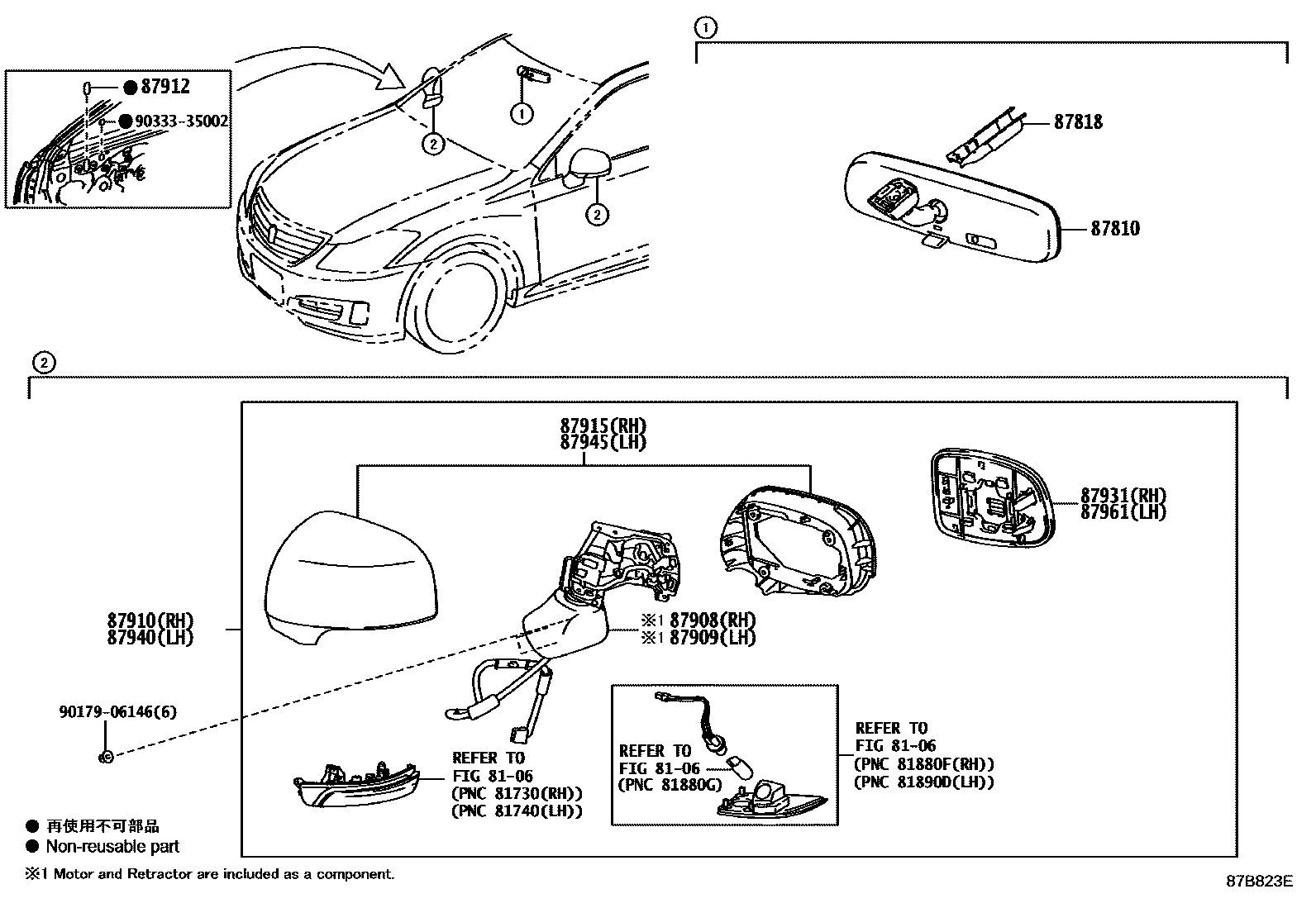

MIRROR
8106
87810MIRROR ASSY, INNER REAR VIEW
87818COVER, INNER RR VIEW MIRROR
87908ACTUATOR ASSY, OUTER MIRROR, RH
WHITE PEARL CS.,062
SILVER ME.,1F7
PREMIUM SILVER PEARL,1F3
BLACK,202
BLACKISH RED MC.,3R0
SILKY GOLD M.M.,5A4
DK.BLUE MC.,8S6
87909ACTUATOR ASSY, OUTER MIRROR, LH
87910MIRROR ASSY, OUTER REAR VIEW, RH
WHITE PEARL CS.,062
SILVER ME.,1F7
PREMIUM SILVER PEARL,1F3
BLACK,202
BLACKISH RED MC.,3R0
SILKY GOLD M.M.,5A4
DK.BLUE MC.,3R0 ,8S6
87912PROTECTOR, OUTER MIRROR
87915COVER, OUTER MIRROR, RH
WHITE PEARL CS.,062
SILVER ME.,1F7
BLACK,202
DK.BLUE MC.,8S6
87931OUTER MIRROR, RH
87940MIRROR ASSY, OUTER REAR VIEW, LH
WHITE PEARL CS.,062
SILVER ME.,1F7
PREMIUM SILVER PEARL,1F3
BLACK,202
BLACKISH RED MC.,3R0
SILKY GOLD M.M.,5A4
DK.BLUE MC.,3R0 ,8S6
87945COVER, OUTER MIRROR, LH
WHITE PEARL CS.,062
SILVER ME.,1F7
BLACK,202
DK.BLUE MC.,8S6
87961MIRROR OUTER, LH
9017906146
main90179-06146
9033335002
main90333-35002
14 parts on this diagram · 1 diagram in section
