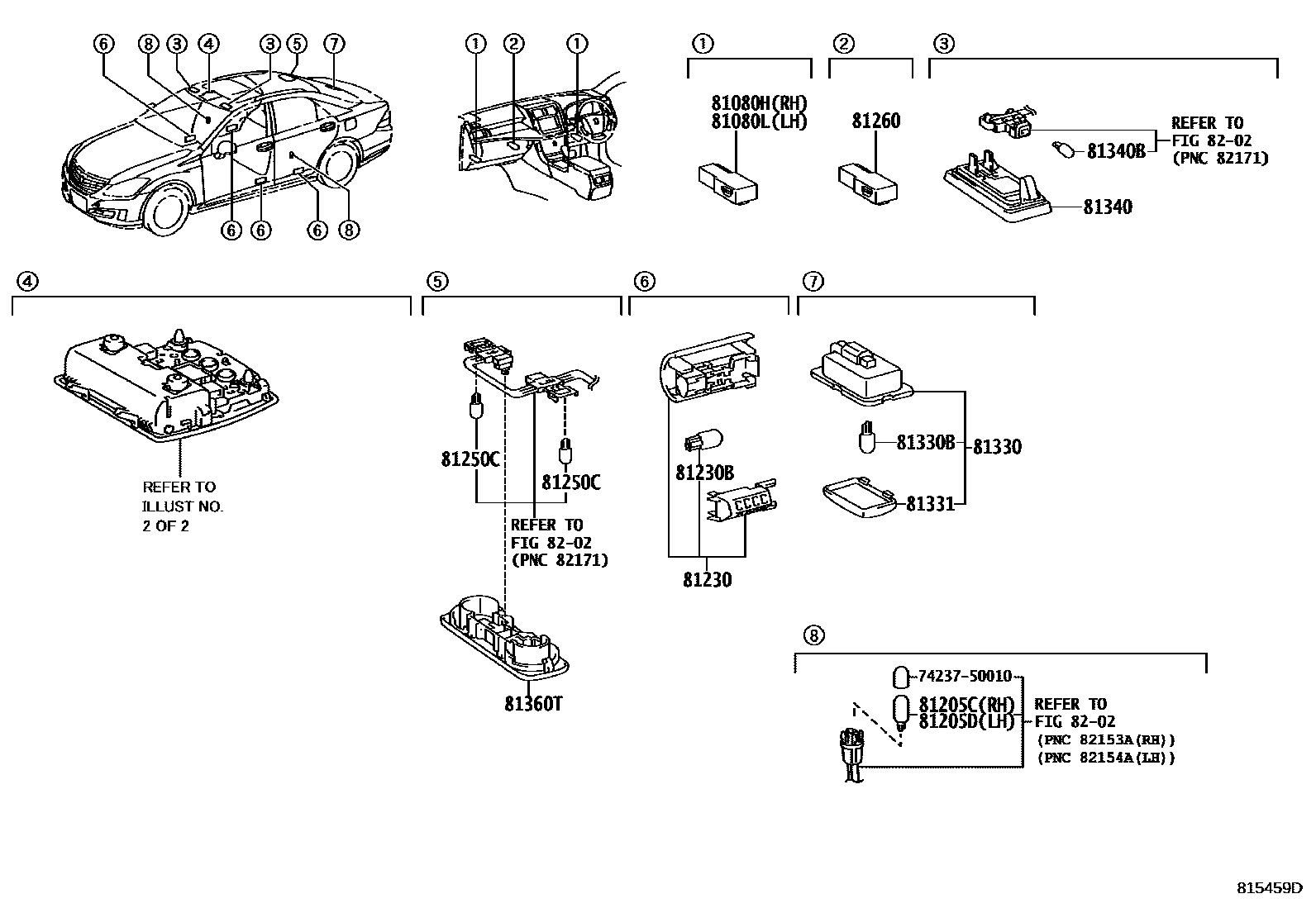

INTERIOR LAMP
81080HLAMP ASSY, INTERIOR ILLUMINATION, NO.1 RH
81080LLAMP ASSY, INTERIOR ILLUMINATION, NO.1 LH
81205CBULB, ASH RECEPTACLE LAMP, REAR RH
81205DBULB, ASH RECEPTACLE LAMP, REAR LH
81230LAMP ASSY, COURTESY
81230BBULB(FOR COURTESY LAMP)
12V 5W
81250CBULB, SPOT LAMP
12V 8W
81260LAMP ASSY, GLOVE BOX
81330LAMP ASSY, LUGGAGE COMPARTMENT, NO.1
81330BBULB, LUGGAGE COMPARTMENT LAMP
12V 3.8W
81331LENS, LUGGAGE COMPARTMENT LAMP
81340LAMP ASSY, VANITY
SHELL,TRIM0#
GRAY,TRIM1#
81340BBULB (FOR VANITY LAMP)
12V 8W
81360TLAMP ASSY, SPOT
SHELL,TRIM0#
GRAY,TRIM1#
8202
7423750010PANEL, REAR ARMREST BASE, LOWER
16 parts on this diagram · 2 diagrams in section
