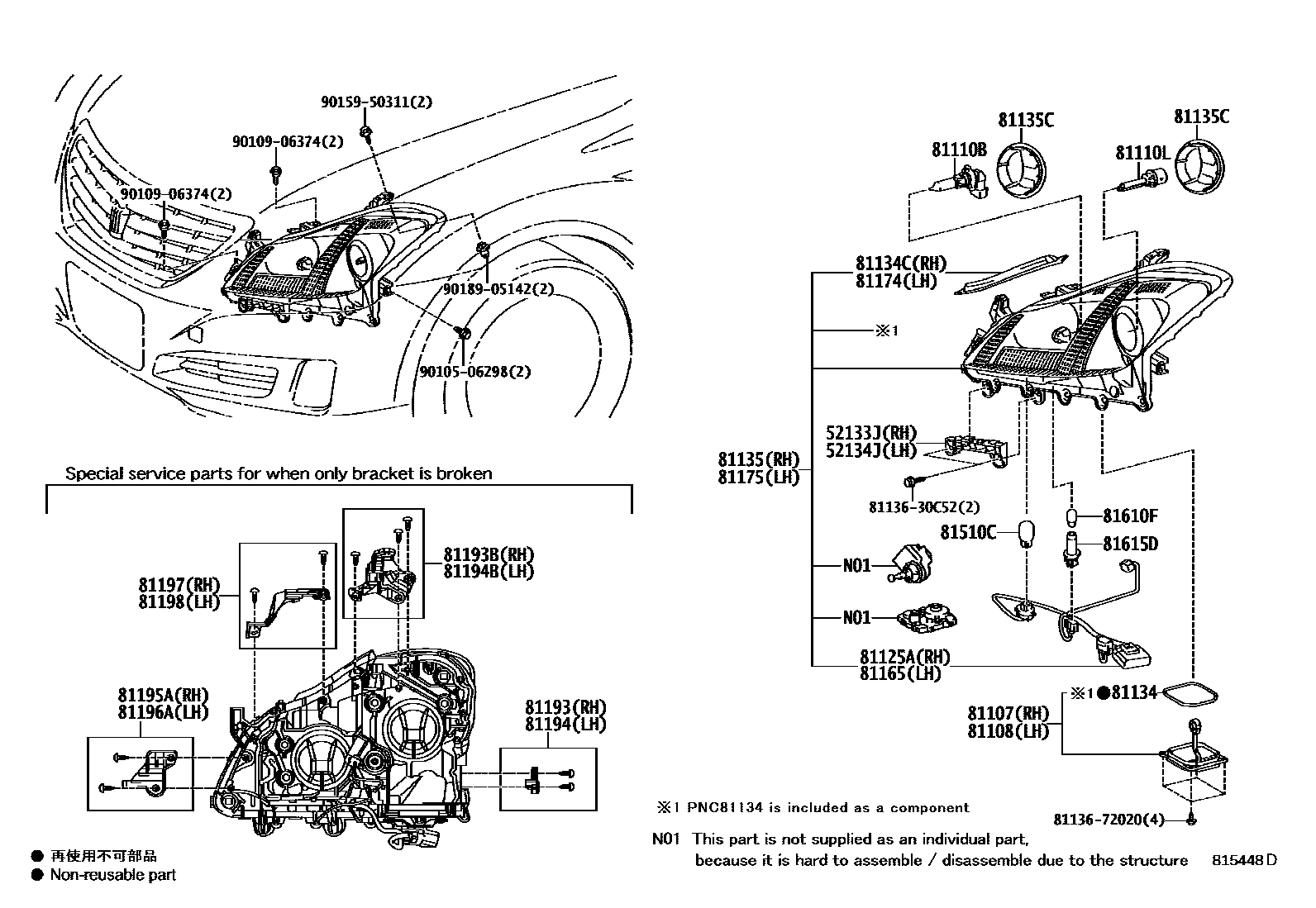

HEADLAMP
52133JREINFORCEMENT, FRONT BUMPER BAR, RH
52134JREINFORCEMENT, FRONT BUMPER BAR, LH
81107COMPUTER SUB-ASSY, HEADLAMP LIGHT CONTROL, RH
81108COMPUTER SUB-ASSY, HEADLAMP LIGHT CONTROL, LH
81110BBULB(FOR HEADLAMP, NO.1)
12V65W(SAE),60W(ECE)
81110LBULB, DISCHARGE HEADLAMP
45V 35W
81125ACORD, HEADLAMP, RH
81134GASKET, HEADLAMP
81134CGASKET, HEADLAMP BODY, RH
81135CCOVER, HEADLAMP BACK, NO.1
81165CORD, HEADLAMP, LH
81174GASKET, HEADLAMP BODY, LH
81193RETAINER, HEADLAMP PROTECTOR, UPPER RH
81193BRETAINER, HEADLAMP PROTECTOR, UPPER RH NO.2
81194RETAINER, HEADLAMP PROTECTOR, UPPER LH
81194BRETAINER, HEADLAMP PROTECTOR, UPPER LH NO.2
81195ARETAINER, HEADLAMP PROTECTOR, LOWER RH
81196ARETAINER, HEADLAMP PROTECTOR, LOWER LH
81197BRACKET, HEADLAMP, LOWER RH
81198BRACKET, HEADLAMP, LWR LH
81510CBULB (FOR FRONT TURN SIGNAL LAMP)
12V 21W,AMBER
81610FBULB(FOR CLEARANCE LAMP)
12V 5W
81615DSOCKET, CLEARANCE LAMP
8113630C52PROTECTOR, HEADLAMP, NO.1 RH
main81136-30C52
8113672020PROTECTOR, HEADLAMP, NO.1 RH
main81136-72020
9010506298
main90105-06298
9010906374
main90109-06374
9015950311
main90159-50311
9018905142
main90189-05142
31 parts on this diagram · 1 diagram in section
