SIDE MOULDING
57497ASHIELD, REAR FLOOR HOUSING
57498ASHIELD, REAR FLOOR HOUSING, NO.2
67495CCOVER, FRONT DOOR FRONT LOWER FRAME, UPPER RH
67496CCOVER, FRONT DOOR FRONT LOWER FRAME, UPPER LH
75085ESCREW, NO.1
75085FSCREW, NO.2
75551MOULDING, ROOF DRIP SIDE FINISH, RH
WHITE PEARL CS.,062
SILVER ME.,1F7
PREMIUM SILVER PEARL,1F3
BLACK,202
BLACKISH RED MC.,3R0
SILKY GOLD M.M.,5A4
DK.BLUE MC.,3R0 ,8S6
75552MOULDING, ROOF DRIP SIDE FINISH, LH
WHITE PEARL CS.,062
SILVER ME.,1F7
PREMIUM SILVER PEARL,1F3
BLACK,202
BLACKISH RED MC.,3R0
SILKY GOLD M.M.,5A4
DK.BLUE MC.,3R0 ,8S6
75561CLIP, ROOF DRIP SIDE FINISH MOULDING, NO.1
75562CLIP, ROOF DRIP SIDE FINISH MOULDING, NO.2
75707MOULDING SUB-ASSY, REAR DOOR WINDOW FRAME, RH
75708MOULDING SUB-ASSY, REAR DOOR WINDOW FRAME, LH
75710MOULDING ASSY, FRONT DOOR BELT, RH
75720MOULDING ASSY, FRONT DOOR BELT, LH
75730MOULDING ASSY, REAR DOOR BELT, RH
75740MOULDING ASSY, REAR DOOR BELT, LH
75753MOULDING, FRONT DOOR WINDOW FRAME, UPPER RH
75754AMOULDING, FRONT DOOR WINDOW FRAME, UPPER LH
75755CMOULDING, FRONT DOOR WINDOW FRAME, REAR RH
75756CMOULDING, FRONT DOOR WINDOW FRAME, REAR LH
75761AMOULDING, REAR DOOR WINDOW FRAME, FRONT RH
NO PAINT REQ.
75762AMOULDING, REAR DOOR WINDOW FRAME, FRONT LH
NO PAINT REQ.
75850AMOULDING ASSY, BODY ROCKER PANEL, RH
WHITE PEARL CS.,062
SILVER ME.,1F7
PREMIUM SILVER PEARL,1F3
BLACK,202
BLACKISH RED MC.,3R0
SILKY GOLD M.M.,5A4
DK.BLUE MC.,3R0 ,8S6
WHITE PEARL CS.,062
SILVER ME.,1F7
BLACK,202
DK.BLUE MC.,8S6
75850BSCREW, NO.3
75850CGROMMET, NO.1
75851FGROMMET(FOR BODY ROCKER PANEL MOULDING)
75860AMOULDING ASSY, BODY ROCKER PANEL, LH
WHITE PEARL CS.,062
SILVER ME.,1F7
PREMIUM SILVER PEARL,1F3
BLACK,202
BLACKISH RED MC.,3R0
SILKY GOLD M.M.,5A4
DK.BLUE MC.,3R0 ,8S6
WHITE PEARL CS.,062
SILVER ME.,1F7
BLACK,202
DK.BLUE MC.,8S6
75861APROTECTOR, ROCKER PANEL MOULDING, NO.1
75862APROTECTOR, ROCKER PANEL MOULDING, NO.2
75863CPROTECTOR, ROCKER PANEL MOULDING, NO.3
75864BPROTECTOR, ROCKER PANEL MOULDING, NO.4
75867ACLIP, ROCKER PANEL MOULDING
75867CCLIP, ROCKER PANEL MOULDING
75868BCLIP, ROCKER PANEL MOULDING, NO.2
75871MOULDING, FRONT FENDER WHEEL OPENING, RH
75872MOULDING, FRONT FENDER WHEEL OPENING, LH
75873MOULDING, QUARTER PANEL WHEEL OPENING, RH
75874MOULDING, QUARTER PANEL WHEEL OPENING, LH
75875ACLIP, FRONT FENDER WHEEL OPENING MOULDING
9015960364
main90159-60364
9016240035
main90162-40035
9016440096
main90164-40096
9018904059
main90189-04059
9018904231
main90189-04231
9018906006
main90189-06006
9026904051
main90269-04051

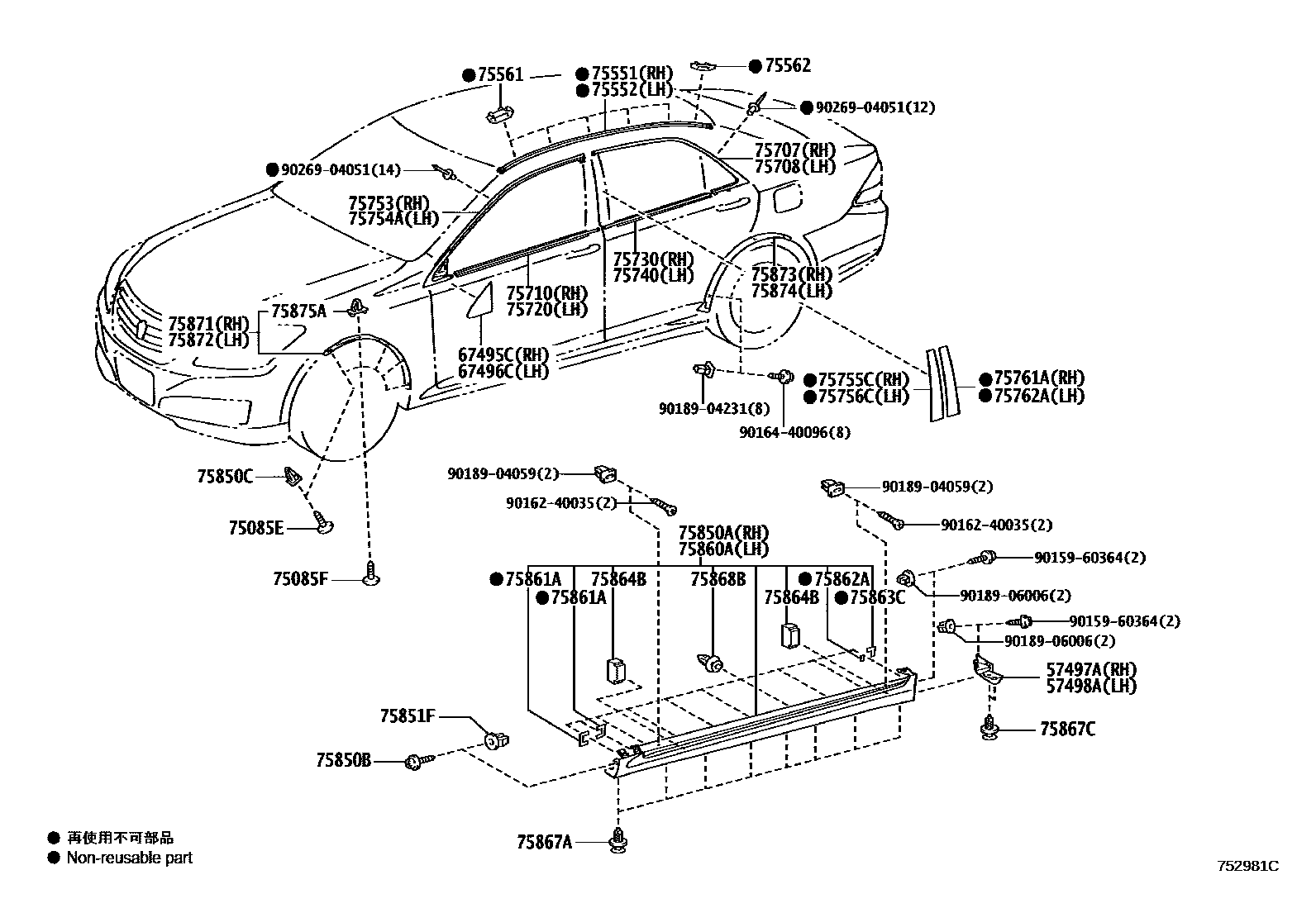

46 parts on this diagram · 1 diagram in section
