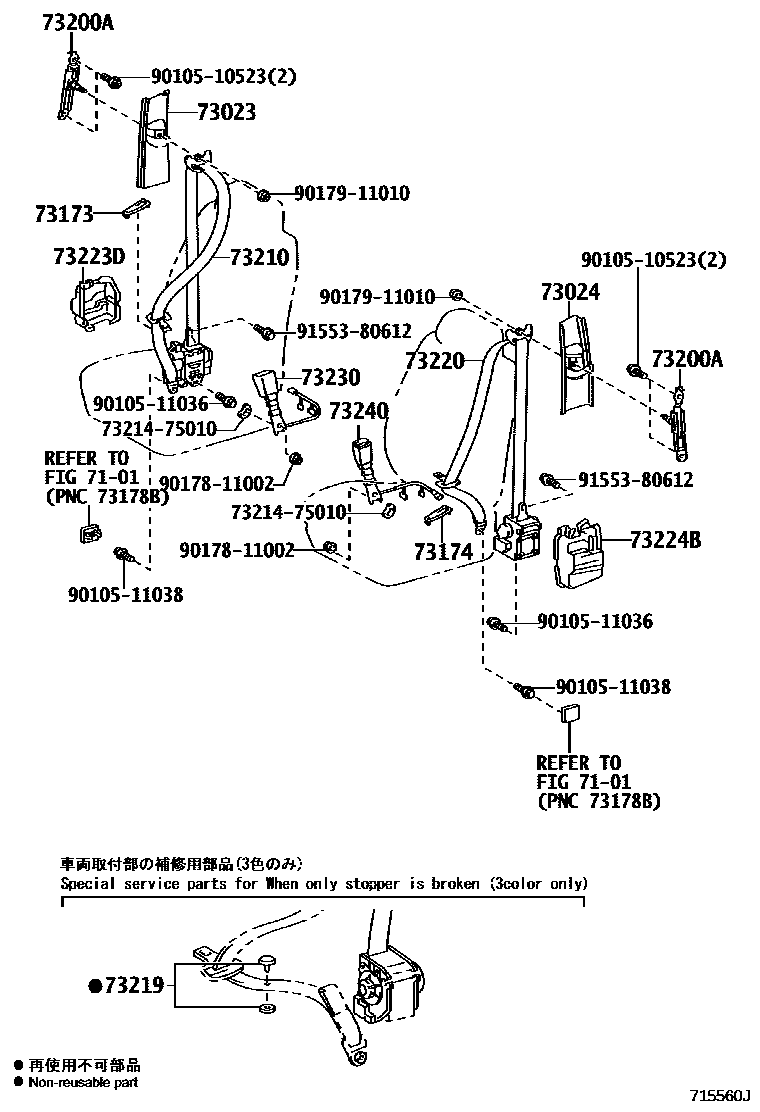

SEAT BELT & CHILD RESTRAINT SEAT
7101
73023PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, RH
73024PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, LH
73173COVER, FRONT SEAT BELT HOLE, RH
73174COVER, FRONT SEAT BELT HOLE, LH
73200AADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR
73210BELT ASSY, FRONT SEAT OUTER, RH
73219STOPPER, TONGUE PLATE
BLACK
GRAY
BEIGE
73220BELT ASSY, FRONT SEAT OUTER, LH
73223COVER, SEAT BELT RETRACTOR
73223DCOVER, FRONT SEAT BELT RETRACTOR, RH
73224BCOVER, FRONT SEAT BELT RETRACTOR, LH
73230BELT ASSY, FRONT SEAT INNER, RH
SHELL,TRIM0#
GRAY,TRIM1#
73240BELT ASSY, FRONT SEAT INNER, LH
SHELL,TRIM0#
GRAY,TRIM1#
7321475010PLATE, FRONT SEAT BELT ANCHOR
main73214-75010
9010510523
main90105-10523
9010511036
main90105-11036
9010511038
main90105-11038
9017811002
main90178-11002
9017911010
main90179-11010
9155380612
main91553-80612
21 parts on this diagram · 2 diagrams in section
