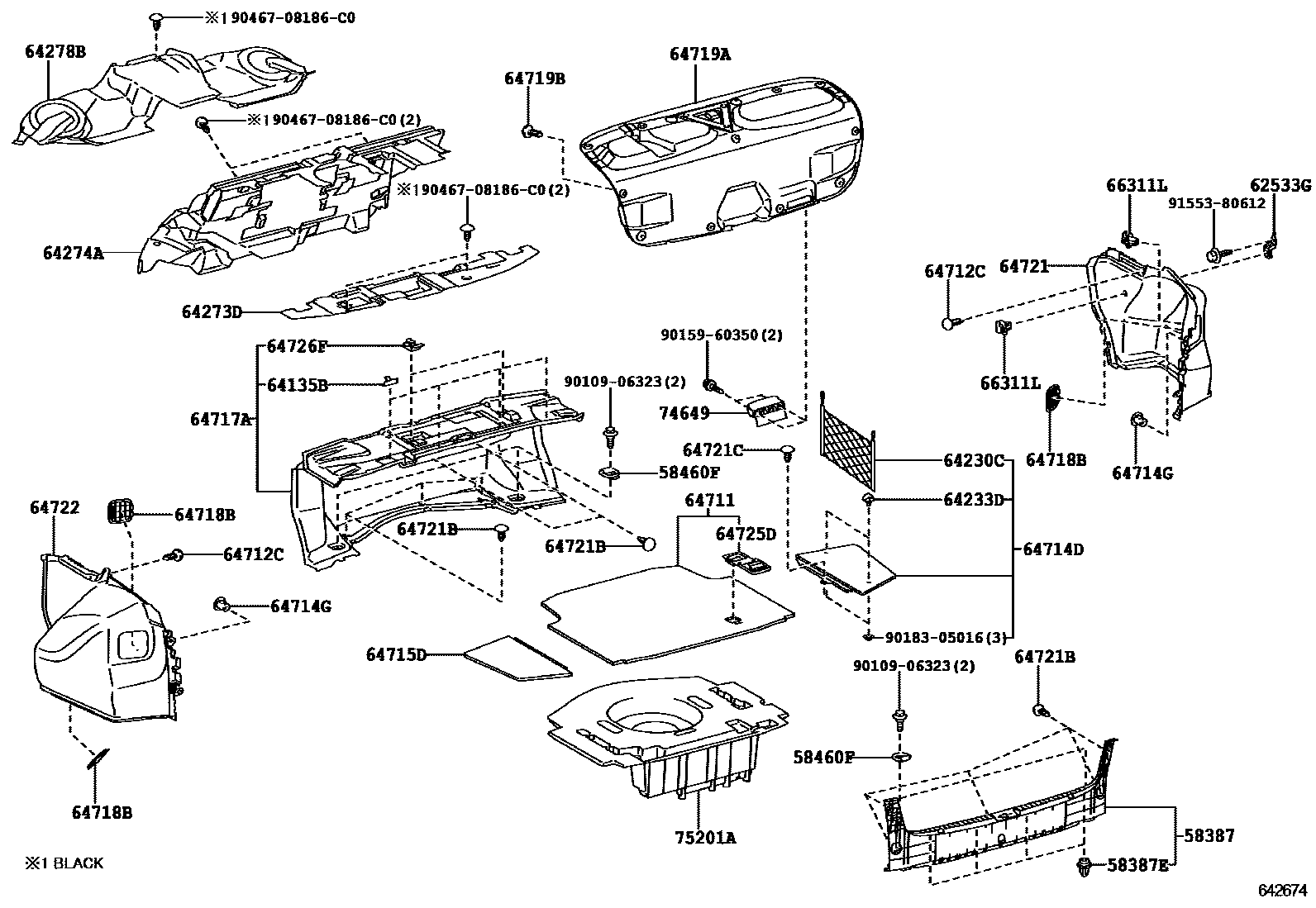

PACKAGE TRAY PANEL & LUGGAGE COMPARTMENT MAT
58387PLATE, REAR FLOOR FINISH
BLACK,TRIM0#,1#
58387ECLIP(FOR REAR FLOOR FINISH PLATE)
58460FSTRIKER ASSY, LUGGAGE HOLD BELT
62533GBRACKET, QUARTER TRIM, RH
64135BBRACKET, LUGGAGE COMPARTMENT TRAY, REAR RH
64230CNET ASSY, ROOM PARTITION
64233DHOOK, ROOM PARTITION NET, REAR RH
BLACK,TRIM0#,1#
64273DPAD, ROOM PARTITION, NO.1
64274APAD, ROOM PARTITION, NO.2
64278BPAD, ROOM PARTITION, NO.3
64711MAT, LUGGAGE COMPARTMENT FLOOR
BLACK,TRIM0#,1#
64712CCLIP(FOR LUGGAGE COMPARTMENT TRIM COVER)
64714DCOVER, LUGGAGE COMPARTMENT TRIM, SIDE, RH
BLACK,TRIM0#,1#
64714GCLIP(FOR LUGGAGE COMPARTMENT TRIM SIDE COVER)
64715DCOVER, LUGGAGE COMPARTMENT TRIM, SIDE, LH
BLACK,TRIM0#,1#
64717ACOVER, LUGGAGE COMPARTMENT TRIM, FRONT
BLACK,TRIM0#,1#
64718BCOVER, LUGGAGE TRIM SERVICE HOLE
64719ACOVER, LUGGAGE COMPARTMENT DOOR
BLACK,TRIM0#,1#
64719BCLIP(FOR LUGGAGE COMPARTMENT DOOR)
64721COVER, LUGGAGE COMPARTMENT TRIM, INNER RH
BLACK,TRIM0#,1#
64721BCOVER, LUGGAGE COMPARTMENT TRIM, NO.1
64721CCLIP(LUGGAGE COMPARTMENT)
64722COVER, LUGGAGE COMPARTMENT TRIM, INNER LH
BLACK,TRIM0#,1#
64725DHOOK, LUGGAGE COMPARTMENT TRIM, NO.1
64726FHOOK, LUGGAGE COMPARTMENT TRIM, NO.2
BLACK
66311LHOOK,ROPE
BLACK,TRIM0#,1#
74649GRIP, LUGGAGE COMPARTMENT DOOR ASSIST
75201ABOX, TOOL
BLACK,TRIM0#,1#
9010906323
main90109-06323
9015960350
main90159-60350
9018305016
main90183-05016
9046708186C0
main90467-08186C0
9155380612
main91553-80612
33 parts on this diagram · 2 diagrams in section
