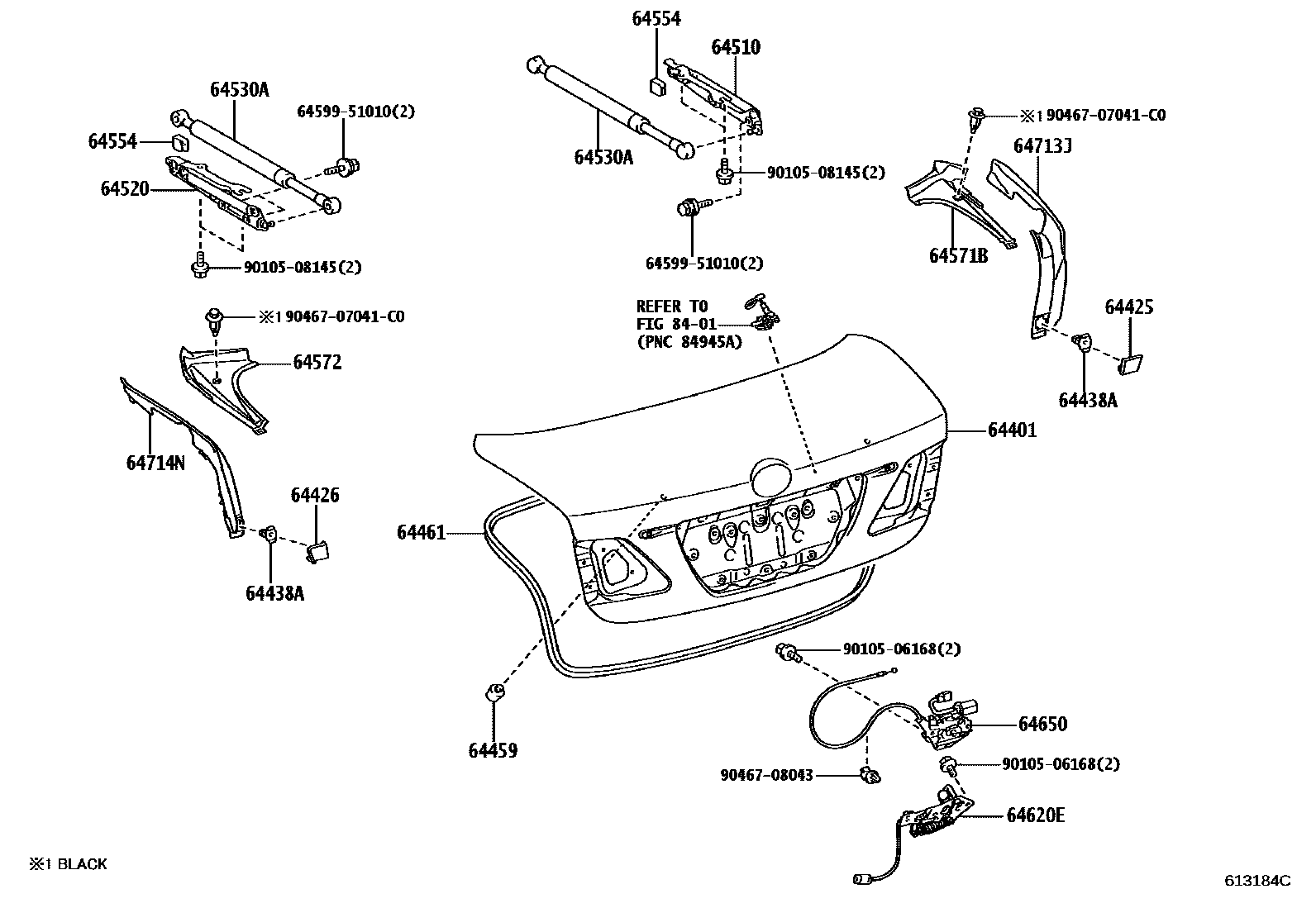

LUGGAGE COMPARTMENT DOOR & LOCK

64401PANEL SUB-ASSY, LUGGAGE COMPARTMENT DOOR

main64401-30C30iGRS202201009-201212

64425PLUG, LUGGAGE COMPARTMENT DOOR, RH

main64425-30040iGRS202201009-201212

64426PLUG, LUGGAGE COMPARTMENT DOOR, LH

main64426-30010iGRS202201009-201212

64438ACLAMP, LUGGAGE ROOM CARPET

main64438-30010×2iGRS202201009-201212

64459CUSHION, LUGGAGE COMPARTMENT DOOR

main90541-09116×2iGRS202201009-201212

64461WEATHERSTRIP, LUGGAGE COMPARTMENT DOOR

main64461-30320iGRS202201009-201212

64510HINGE ASSY, LUGGAGE COMPARTMENT DOOR, RH

main64510-30480iGRS202201009-201212

64520HINGE ASSY, LUGGAGE COMPARTMENT DOOR, LH

main64520-30250iGRS202201009-201212

64530ASUPPORT ASSY, LUGGAGE COMPARTMENT DOOR

main64530-0W120×2iGRS202201009-201212

main64530-0W130×2iGRS202201009-201212

JIKOUSIKI

64554STOPPER, LUGGAGE DOOR BALANCER

main64554-30041iGRS202201009-201212

RH

main64554-30051iGRS202201009-201212

LH

64571BCOVER, LUGGAGE COMPARTMENT DOOR HINGE, RH

main64571-30130iGRS202201009-201212

64572COVER, LUGGAGE COMPARTMENT DOOR HINGE, LH

main64572-30080iGRS202201009-201212

64620ESTRIKER ASSY, LUGGAGE COMPARTMENT DOOR

main64620-50020iGRS202201009-201212

64650CLOSER ASSY, LUGGAGE DOOR

main64650-30041iGRS202201009-201212

64713JCOVER, LUGGAGE COMPARTMENT UPPER, NO.1 RH

main64713-30100iGRS202201009-201212

64714NCOVER, LUGGAGE COMPARTMENT UPPER, NO.1 LH

main64714-30500iGRS202201009-201212

8401

6459951010BOLT, LUGGAGE DOOR HINGE

main64599-51010

9010506168

main90105-06168

9010508145

main90105-08145

9046707041C0

main90467-07041C0

9046708043

main90467-08043

22 parts on this diagram · 1 diagram in section
