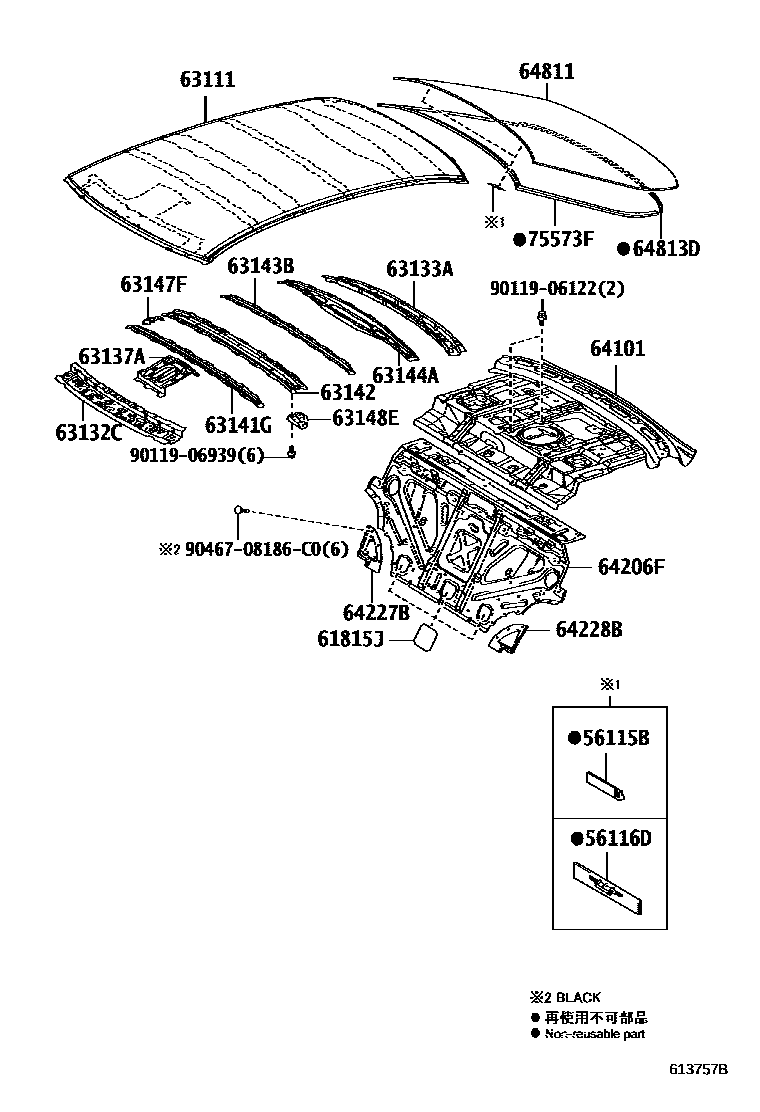

ROOF PANEL & BACK WINDOW GLASS

56115BSTOPPER, BACK WINDOW GLASS, NO.1

main56115-30110iGRS202201009-201212

56116DSTOPPER, BACK WINDOW GLASS, NO.2

main56116-22050iGRS202201009-201212

61815JCOVER, ROOF SIDE, INNER UPPER

main61815-30120×3iGRS202201009-201212

63111PANEL, ROOF

main63111-30690iGRS202201009-201212

63132CPANEL, WINDSHIELD HEADER, INNER

main63132-30310iGRS202201009-201212

63133AFRAME, BACK WINDOW, UPPER

main63133-30290iGRS202201009-201212

63137ABRACKET, DOME LAMP, NO.1

main63137-30250iGRS202201009-201212

63141GREINFORCEMENT, ROOF PANEL, NO.1

main63143-30270iGRS202201009-201212

63142REINFORCEMENT, ROOF PANEL, NO.2

main63141-30220iGRS202201009-201212

63143BREINFORCEMENT, ROOF PANEL, NO.3

main63144-30200iGRS202201009-201212

63144AREINFORCEMENT, ROOF PANEL, NO.4

main63128-30060iGRS202201009-201212

63147FBRACKET, ROOF PANEL REINFORCEMENT, RH

main63146-30120iGRS202201009-201212

63148EBRACKET, ROOF PANEL REINFORCEMENT, LH

main63147-30050iGRS202201009-201212

64101PANEL SUB-ASSY, UPPER BACK

main64101-30880iGRS202201009-201212

64206FPANEL SUB-ASSY, ROOM PARTITION

main64206-30090iGRS202201009-201212

64227BEXTENSION, CENTER FLOOR TO BLACE, NO.1

main64227-30140iGRS202201009-201212

64228BEXTENSION, CENTER FLOOR TO BRACE, NO.2

main64228-30120iGRS202201009-201212

64811GLASS, BACK WINDOW

main64801-30921supersedes 64801-30922iGRS202201009-201212

*EHT,T=3.5,DARKGREEN,HONG KONG SPEC

64813DDAM, BACK WINDOW GLASS ADHESIVE

main64813-30220iGRS202201009-201212

sub56117-50140

75573FMOULDING, BACK WINDOW, OUTSIDE

main75573-30381iGRS202201009-201212

9011906122

main90119-06122

9011906939

main90119-06939

9046708186C0

main90467-08186C0

23 parts on this diagram · 1 diagram in section
