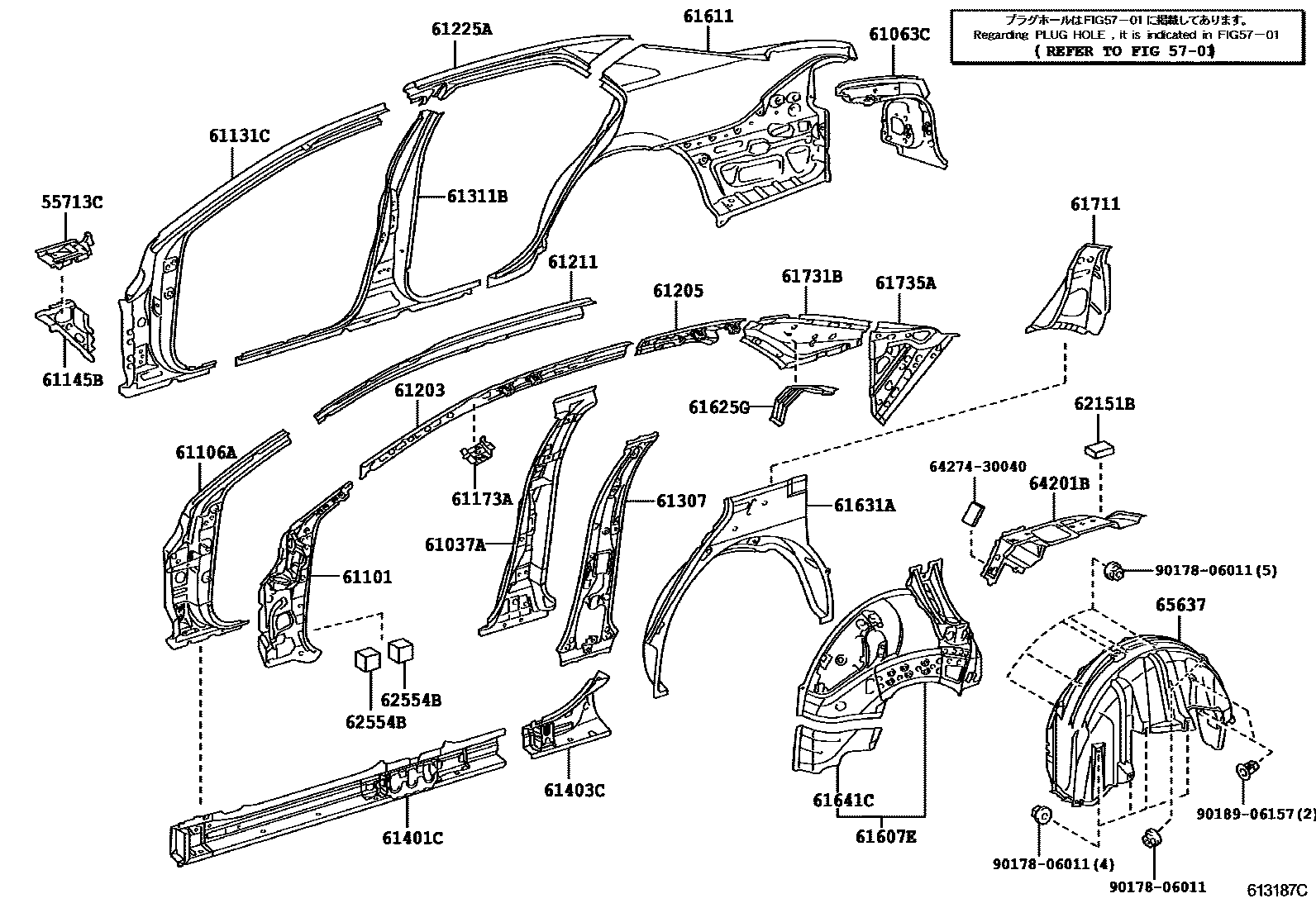

SIDE MEMBER
55713CPANEL, COWL TOP SIDE, RH
5701
61037AREINFORCEMENT SUB-ASSY, CENTER BODY PILLAR, RH
61063CTROUGH SUB-ASSY, LUGGAGE DOOR OPENING, FRONT RH
61101PANEL SUB-ASSY, COWL SIDE, RH
61106AREINFORCE SUB-ASSY, FRONT BODY PILLAR, UPPER RH
61131CPILLAR, FRONT BODY, OUTER RH
61145BGUSSET, FRONT BODY PILLAR, LOWER RH
61173AREINFORCEMENT, FRONT BODY PILLAR, UPPER INNER RH
61203RAIL SUB-ASSY, ROOF SIDE, INNER RH
61205RAIL SUB-ASSY, ROOF SIDE, INNER REAR RH
61211RAIL, ROOF SIDE, OUTER RH
61225ARAIL, ROOF SIDE OUTER UPPER NO.1, RH
61307PILLAR SUB-ASSY, CENTER BODY, INNER RH
61311BPILLAR, CENTER BODY, OUTER RH
61401CPANEL SUB-ASSY, ROCKER, OUTER RH
61403CREINFORCE SUB-ASSY, ROCKER, OUTER RH
61607EPANEL, QUARTER WHEEL HOUSE, INNER RH
61611PANEL, QUARTER, RH
61625GEXTENSION, QUARTER PANEL, REAR RH
61631APANEL, QUARTER WHEEL HOUSE, OUTER RH
61641CGUSSET, QUARTER WHEEL HOUSE, FRONT RH
61711PANEL, ROOF SIDE, OUTER RH
61731BPANEL, ROOF SIDE, INNER RH
61735APANEL, ROOF SIDE, INNER REAR RH
62151BPAD, COWL SIDE SILENCER
62554BPAD, PILLAR, NO.4
64201BSTRAINER SUB-ASSY, PACKAGE TRAY TO FLOOR, RH
65637LINER, REAR WHEEL HOUSE, RH
6427430040PAD, ROOM PARTITION TRIM, NO.1
main64274-30040
9017806011
main90178-06011
9018906157
main90189-06157
32 parts on this diagram · 2 diagrams in section
