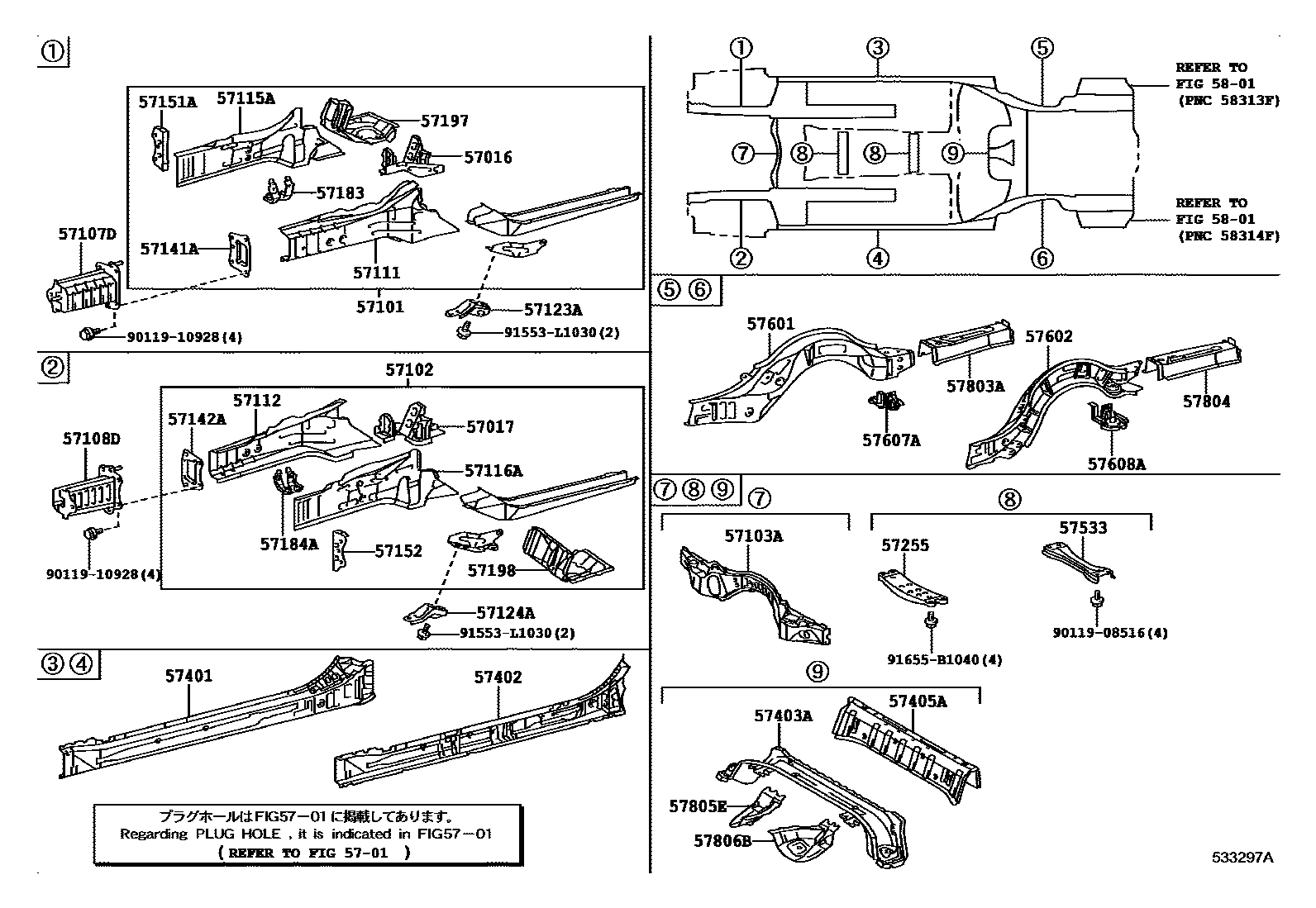

FLOOR SIDE MEMBER

5701

57016REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, RH

main57016-30040iGRS202201009-201212

57017REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, LH

main57017-30040iGRS202201009-201212

57101MEMBER SUB-ASSY, FRONT SIDE, RH

main57101-30163iGRS202201009-201212

57102MEMBER SUB-ASSY, FRONT SIDE, LH

main57102-30143iGRS202201009-201212

57103ACROSSMENBER SUB-ASSY, FLOOR, NO.3

main57103-30021iGRS202201009-201205

sub57103-30022

main57103-30022iGRS202201206-201212

57107DREINFORCE SUB-ASSY, FRONT BUMPER MOUNTING, RH

main57107-30061iGRS202201009-201212

57108DREINFORCE SUB-ASSY, FRONT BUMPER MOUNTING, LH

main57108-30080iGRS202201009-201212

sub57108-30081

57111MEMBER, FRONT SIDE, RH

main57111-30082iGRS202201009-201212

57112MEMBER, FRONT SIDE, LH

main57112-30082iGRS202201009-201212

57115APLATE, FRONT SIDE MEMBER, OUTER RH

main57115-30060iGRS202201009-201212

57116APLATE, FRONT SIDE MEMBER, OUTER LH

main57116-30030iGRS202201009-201212

57123AREINFORCEMENT, STRUT BAR BRACKET, RH

main57305-30010iGRS202201009-201212

57124AREINFORCEMENT, STRUT BAR BRACKET, LH

main57306-30010iGRS202201009-201212

57141ASUPPORT, FRONT BUMPER ARM, RH

main57141-30040iGRS202201009-201212

57142ASUPPORT, FRONT BUMPER ARM, LH

main57142-30040iGRS202201009-201212

57151AREINFORCEMENT, FRONT SIDE MEMBER, NO.1 RH

main57151-30040iGRS202201009-201212

57152REINFORCEMENT, FRONT SIDE MEMBER, NO.1 LH

main57152-30040iGRS202201009-201212

57183PLATE, FRONT SIDE MEMBER, NO.4 RH

main57183-30030iGRS202201009-201212

57184APLATE, FRONT SIDE MEMBER, NO.4 LH

main57184-30020iGRS202201009-201212

57197BOX, TORQUE, FRONT RH

main57197-30040iGRS202201009-201212

57198BOX, TORQUE, FRONT LH

main57198-30041iGRS202201009-201212

57255MEMBER, ENGINE REAR MOUNTING

main57255-30130iGRS202201009-201212

57401MEMBER SUB-ASSY, MAIN FLOOR SIDE, RH

main57401-30101iGRS202201009-201212

57402MEMBER SUB-ASSY, MAIN FLOOR SIDE, LH

main57402-30091iGRS202201009-201212

57403AMEMBER SUB-ASSY, CENTER FLOOR CROSS, NO.3

main57430-30011iGRS202201009-201211

main57430-30012iGRS202201211-201212

57405AMEMBER SUB-ASSY, CENTER FLOOR CROSS, NO.2

main57405-30050iGRS202201009-201212

57533BRACE, FRONT FLOOR, CENTER

main57533-30050iGRS202201009-201212

57601MEMBER SUB-ASSY, REAR FLOOR SIDE, RH

main57601-30917iGRS202201009-201211

sub57601-30922

main57601-30922iGRS202201211-201212

57602MEMBER SUB-ASSY, REAR FLOOR SIDE, LH

main57602-30928iGRS202201009-201211

sub57602-30934

main57602-30934iGRS202201211-201212

57607AMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.3

main57607-53020iGRS202201009-201212

57608AMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.4

main57608-53030iGRS202201009-201212

57803AREINFORCEMENT SUB-ASSY, REAR FLOOR SIDE MEMBER, REAR RH

main57803-30021iGRS202201009-201212

57804REINFORCEMENT SUB-ASSY, REAR FLOOR SIDE MEMBER, REAR LH

main57804-30032iGRS202201009-201212

57805EREINFORCEMENT SUB-ASSY, BELT ANCHOR, RH

main57805-30060iGRS202201009-201212

57806BREINFORCEMENT SUB-ASSY, BELT ANCHOR, LH

main57806-30050iGRS202201009-201212

5801

9011908516

main90119-08516

9011910928

main90119-10928

91553L1030

main91553-L1030

91655B1040

main91655-B1040

41 parts on this diagram · 1 diagram in section
