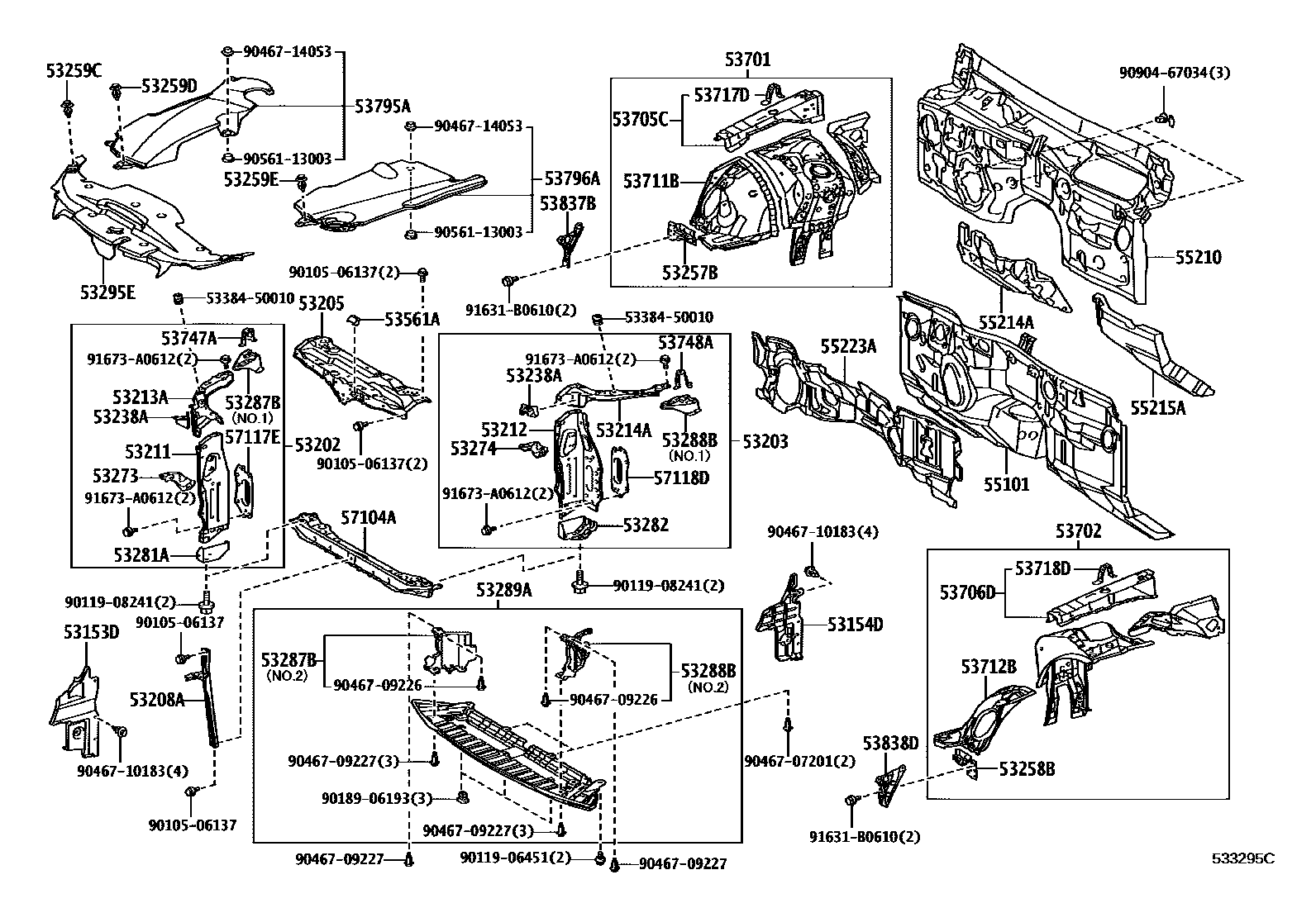

FRONT FENDER APRON & DASH PANEL
53153DGUIDE, RADIATOR GRILLE SIDE AIR, RH
53154DGUIDE, RADIATOR GRILLE SIDE AIR, LH
53202SUPPORT SUB-ASSY, RADIATOR, RH
53203SUPPORT SUB-ASSY, RADIATOR, LH
53205SUPPORT SUB-ASSY, RADIATOR, UPPER
53208ASUPPORT SUB-ASSY, HOOD LOCK
53211SUPPORT, RADIATOR, RH
53212SUPPORT, RADIATOR, LH
53213ASUPPORT, RADIATOR, UPPER RH
53214ASUPPORT, RADIATOR, UPPER LH
53238ABRACKET, HOOD BUMPER MOUNTING
53257BBRACKET, RADIATOR SUPPORT TO FRONT FENDER
53258BBRACKET, RADIATOR SUPPORT TO FRONT FENDER, LH
53259CCLIP, RADIATOR SUPPORT TO FRAME SEAL
53259DCLIP, RADIATOR SUPPORT TO FRAME SEAL, NO.2
53259ECLIP, RADIATOR SUPPORT TO FRAME SEAL, NO.3
53273BRACKET, FRONT BUMPER ARM MOUNTING, RH
53274BRACKET, FRONT BUMPER ARM MOUNTING, LH
53281AREINFORCEMENT, FRONT BODY MOUNTING, RH
53282REINFORCEMENT, FRONT BODY MOUNTING, LH
53287BEXTENSION, RADIATOR SUPPORT, RH
NO.1
NO.2
53288BEXTENSION, RADIATOR SUPPORT, LH
NO.1
NO.2
53289ACOVER, RADIATOR SUPPORT OPENING
53295ESEAL, COOL AIR INTAKE DUCT
53561AGUIDE, HOOD AUXILIARY CATCH HOOK
53701APRON SUB-ASSY, FRONT FENDER, RH
sub53701-30A92
53702APRON SUB-ASSY, FRONT FENDER, LH
sub53702-30832
53705CBRACKET SUB-ASSY, FRONT SUSPENSION UPPER, NO.1 RH
53706DMEMBER SUB-ASSY, FRONT APRON TO COWL SIDE, LH
53711BAPRON, FRONT FENDER, FRONT RH
sub53711-24050
53712BAPRON, FRONT FENDER, FRONT LH
sub53712-24060
53717DGUSSET, FENDER APRON, RH
53718DGUSSET, FENDER APRON, LH
53747AEXTENSION, APRON FENDER SIDE, RH
53748AEXTENSION, APRON FENDER SIDE, LH
53795ACOVER, ENGINE ROOM, SIDE
53796ACOVER, ENGINE ROOM SIDE, LH
53837BBRACKET, FRONT SIDE PANEL, NO.2
53838DBRACKET, FRONT SIDE PANEL, NO.2 LH
55101PANEL SUB-ASSY, DASH
55210INSULATOR ASSY, DASH PANEL
55214APAD, DASH PANEL INSULATOR, NO.2
55215APAD, DASH PANEL INSULATOR, NO.3
55223AINSULATOR, DASH PANEL, OUTER
sub55223-30241
57104AMEMBER SUB-ASSY, FRONT CROSS
57117ERETAINER, FRONT BUMPER ARM, RH
57118DRETAINER, FRONT BUMPER ARM, LH
5338450010BAR, HOOD SILENCER SUPPORT
main53384-50010
9010506137
main90105-06137
9011906451
main90119-06451
9011908241
main90119-08241
9018906193
main90189-06193
9046707201
main90467-07201
9046709226
main90467-09226
9046709227
main90467-09227
9046710183
main90467-10183
9046714053
main90467-14053
9056113003
main90561-13003
9090467034
main90904-67034
91631B0610
main91631-B0610
91673A0612
main91673-A0612
61 parts on this diagram · 1 diagram in section
