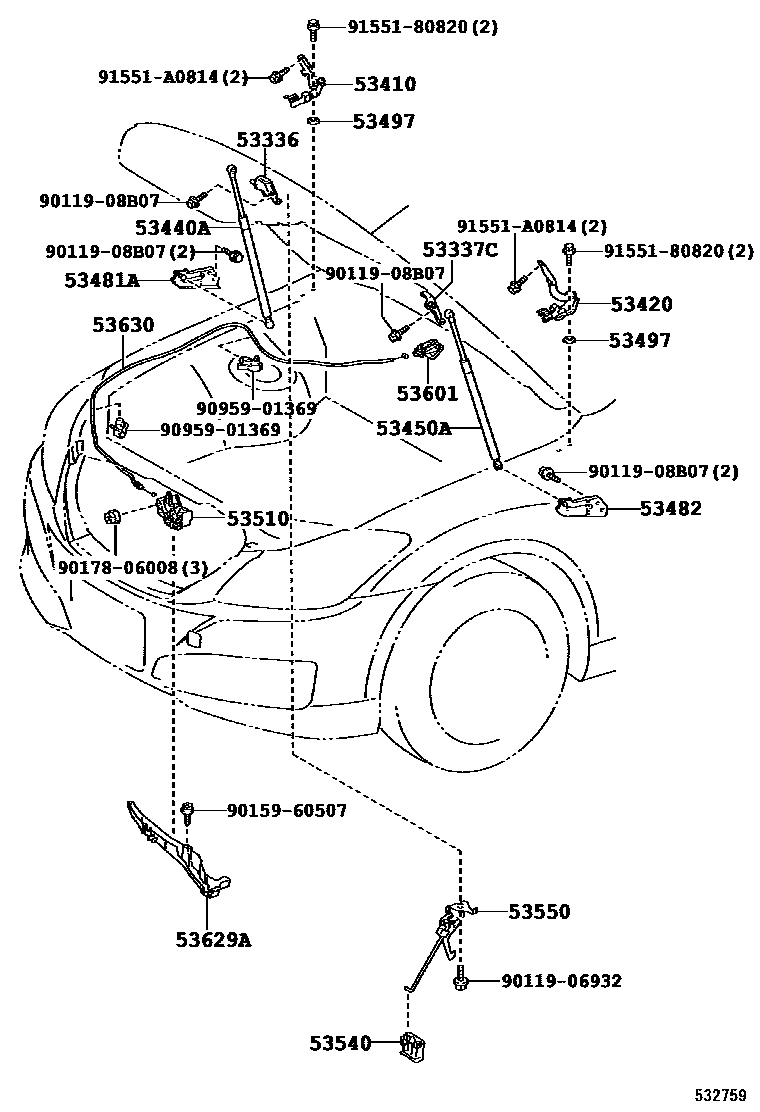

HOOD LOCK & HINGE
53336BRACKET, HOOD STAY, RH
53337CBRACKET, HOOD STAY, LH
53410HINGE ASSY, HOOD, RH
53420HINGE ASSY, HOOD, LH
53440ASUPPORT ASSY, HOOD, RH
53450ASUPPORT ASSY, HOOD, LH
53481ABRACKET, HOOD SUPPORT, RH
53482BRACKET, HOOD SUPPORT, LH
53497PAD, HOOD HINGE, NO.1
T=1.0
53510LOCK ASSY, HOOD
53540LEVER ASSY, AUXILIARY CATCH RELEASE
53550HOOK ASSY, HOOD AUXILIARY CATCH
53601LEVER SUB-ASSY, HOOD LOCK CONTROL
53629ACOVER, HOOD LOCK CONTROL CABLE
53630CABLE ASSY, HOOD LOCK CONTROL
9011906932
main90119-06932
9011908B07
main90119-08B07
9015960507
main90159-60507
9017806008
main90178-06008
9095901369
main90959-01369
9155180820
main91551-80820
91551A0814
main91551-A0814
22 parts on this diagram · 1 diagram in section
