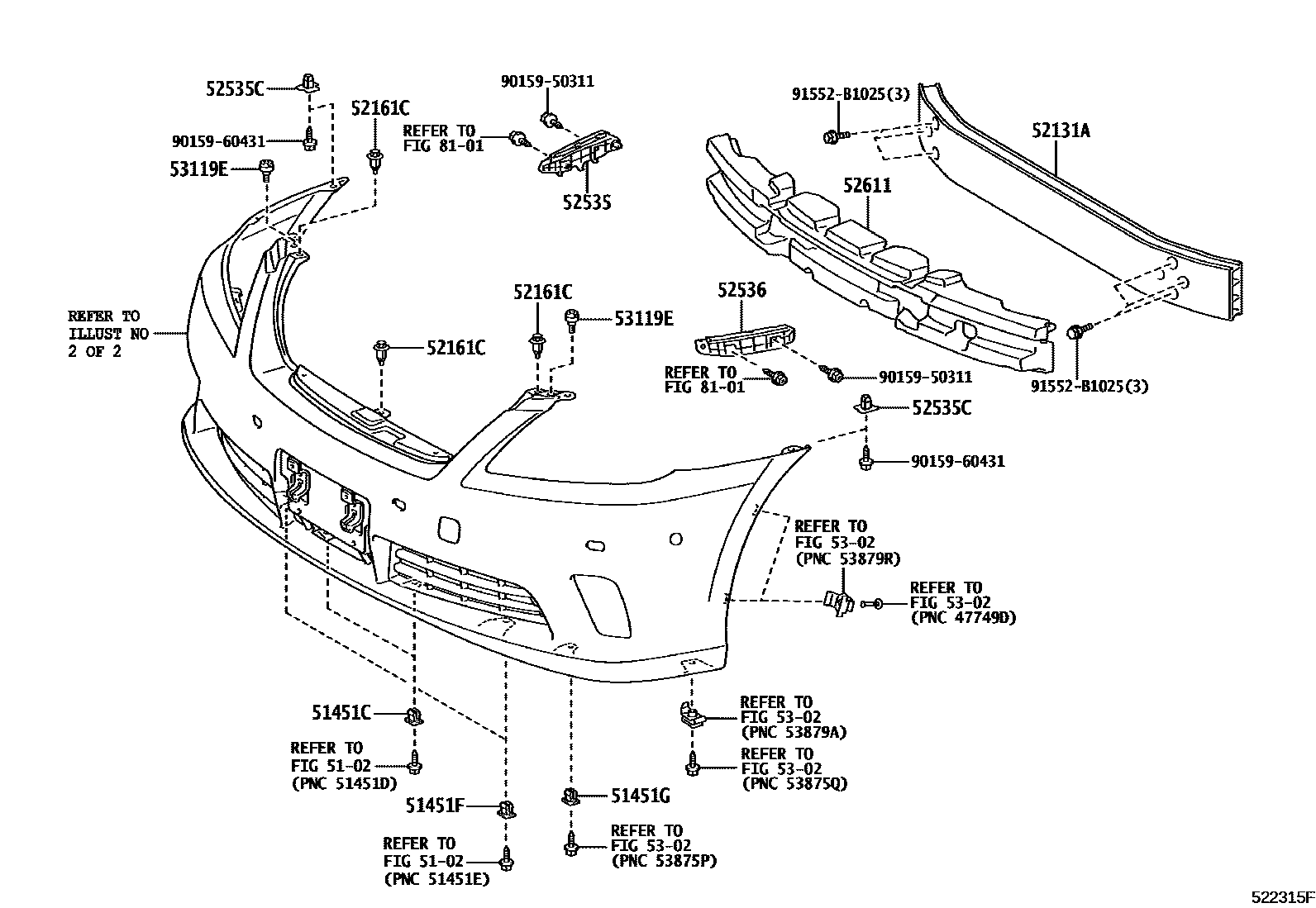

FRONT BUMPER & BUMPER STAY

0001 1 0002 1

5102

51451CGROMMET(FOR ENGINE UNDER COVER)

main90189-06193iGRS202201009-201107

main90189-06237iGRS202201108-201212

51451FGROMMET, NO.1

main90189-06193iGRS202201009-201107

main90189-06237iGRS202201108-201212

51451GGROMMET, NO.2

main90189-06193iGRS202201009-201107

main90189-06237iGRS202201108-201212

52131AREINFORCEMENT, FRONT BUMPER

main52131-30290iGRS202201009-201212

52161CPIECE, FRONT BUMPER

main52161-16010iGRS202201009-201212

sub52161-0K040

52535RETAINER, FRONT BUMPER SIDE, RH

main52535-30200iGRS202201009-201212

52535CRETAINER, FRONT BUMPER SIDE

main52535-50060iGRS202201009-201212

52536RETAINER, FRONT BUMPER SIDE, LH

main52536-30200iGRS202201009-201212

52611ABSORBER, FRONT BUMPER ENERGY

main52611-30380iGRS202201009-201212

5302

53119EPROTECTOR, RADIATOR GRILLE

main53119-12150iGRS202201009-201212

8101

9015950311

main90159-50311

9015960431

main90159-60431

91552B1025

main91552-B1025

16 parts on this diagram · 2 diagrams in section
