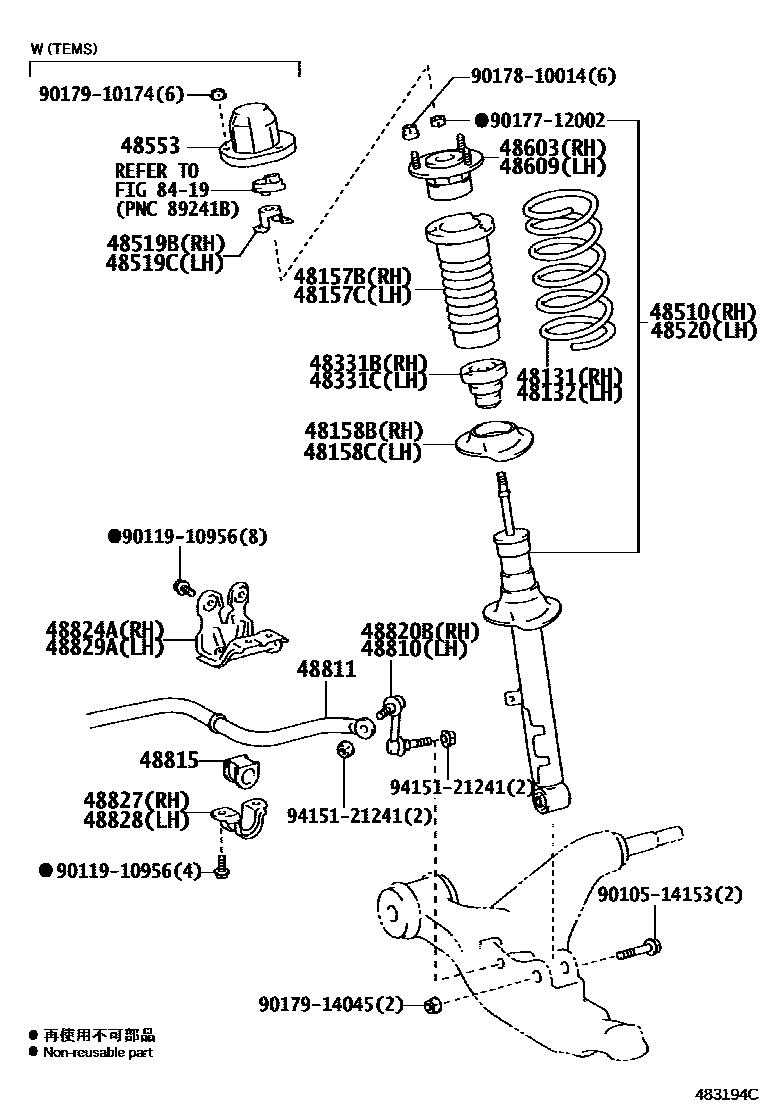

FRONT SPRING & SHOCK ABSORBER
48131SPRING, FRONT COIL, RH
48132SPRING, FRONT COIL, LH
48157BINSULATOR, FRONT COIL SPRING, UPPER RH
48157CINSULATOR, FRONT COIL SPRING, UPPER LH
48158BINSULATOR, FRONT COIL SPRING, LOWER RH
48158CINSULATOR, FRONT COIL SPRING, LOWER LH
48331BBUMPER, FRONT SPRING, RH
48331CBUMPER, FRONT SPRING, LH
48510ABSORBER ASSY, SHOCK, FRONT RH
MARK 48510-30581
48519BBRACKET, ACTUATOR SUPPORT, FRONT RH
48519CBRACKET, ACTUATOR SUPPORT, FRONT LH
48520ABSORBER ASSY, SHOCK, FRONT LH
MARK 48520-30121
48553CAP, SHOCK ABSORBER, UPPER
48603SUPPORT SUB-ASSY, FRONT SUSPENSION, RH
sub48609-30130
48609SUPPORT SUB-ASSY, FRONT SUSPENSION, LH
sub48609-30130
48810LINK ASSY, FRONT STABILIZER, LH
48811BAR, STABILIZER, FRONT
48815BUSH, FRONT STABILIZER BAR, NO.1
48820BLINK ASSY, FRONT STABILIZER, RH
48827BRACKET, FRONT STABILIZER, NO.2 RH
48828BRACKET, FRONT STABILIZER, NO.2 LH
8419
9010514153
main90105-14153
9011910956
main90119-10956
9017712002
main90177-12002
9017810014
main90178-10014
9017910174
main90179-10174
9017914045
main90179-14045
9415121241
main94151-21241
31 parts on this diagram · 1 diagram in section
