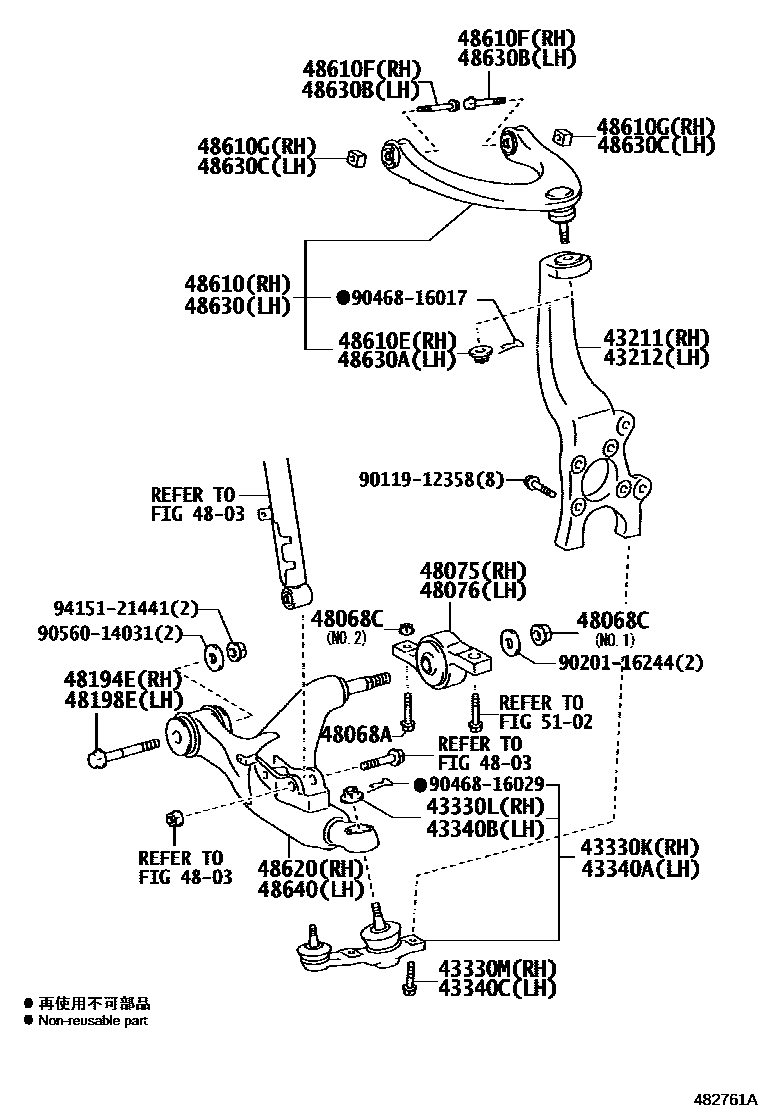

FRONT AXLE ARM & STEERING KNUCKLE
43211KNUCKLE, STEERING, RH
43212KNUCKLE, STEERING, LH
43330KJOINT ASSY, LOWER BALL, FRONT RH
43330LNUT, CASTLE (FOR FRONT LOWER BALL JOINT RH)
43330MBOLT (FOR FRONT LOWER BALL JOINT RH)
43340AJOINT ASSY, LOWER BALL, FRONT LH
43340BNUT, CASTLE (FOR FRONT LOWER BALL JOINT LH)
43340CBOLT (FOR FRONT LOWER BALL JOINT LH)
4803
48068ABOLT(FOR FRONT SUSPENSION LOWER ARM)
48068CNUT(FOR FRONT SUSPENSION LOWER ARM)
NO.2
NO.1
48075BRACKET SUB-ASSY, LWR ARM, NO,1
BLACK MARK
48076BRACKET SUB-ASSY, LWR ARM, NO.2
BLUE MARK
48194ECAM, FRONT SUSPENSION CAMBER ADJUST, NO.3 RH
48198ECAM, FRONT SUSPENSION CAMBER ADJUST, NO.3 LH
48610ARM ASSY, FRONT SUSPENSION UPPER, RH
48610ENUT, CASTLE(FOR FRONT SUSPENSION UPPER ARM RH)
48610FBOLT(FOR FRONT SUSPENSION UPPER ARM RH)
48610GNUT(FOR FRONT SUSPENSION UPPER ARM RH)
48620ARM ASSY, FRONT SUSPENSION, LOWER RH
48630ARM ASSY, FRONT SUSPENSION, UPPER LH
48630ANUT, CASTLE(FOR FRONT SUSPENSION UPPER ARM LH)
48630BBOLT(FOR FRONT SUSPENSION UPPER ARM LH)
48630CNUT(FOR FRONT SUSPENSION UPPER ARM LH)
48640ARM ASSY, FRONT SUSPENSION LOWER, LH
5102
9011912358
main90119-12358
9020116244
main90201-16244
9046816017
main90468-16017
9046816029
main90468-16029
9056014031
main90560-14031
9415121441
main94151-21441
32 parts on this diagram · 1 diagram in section
