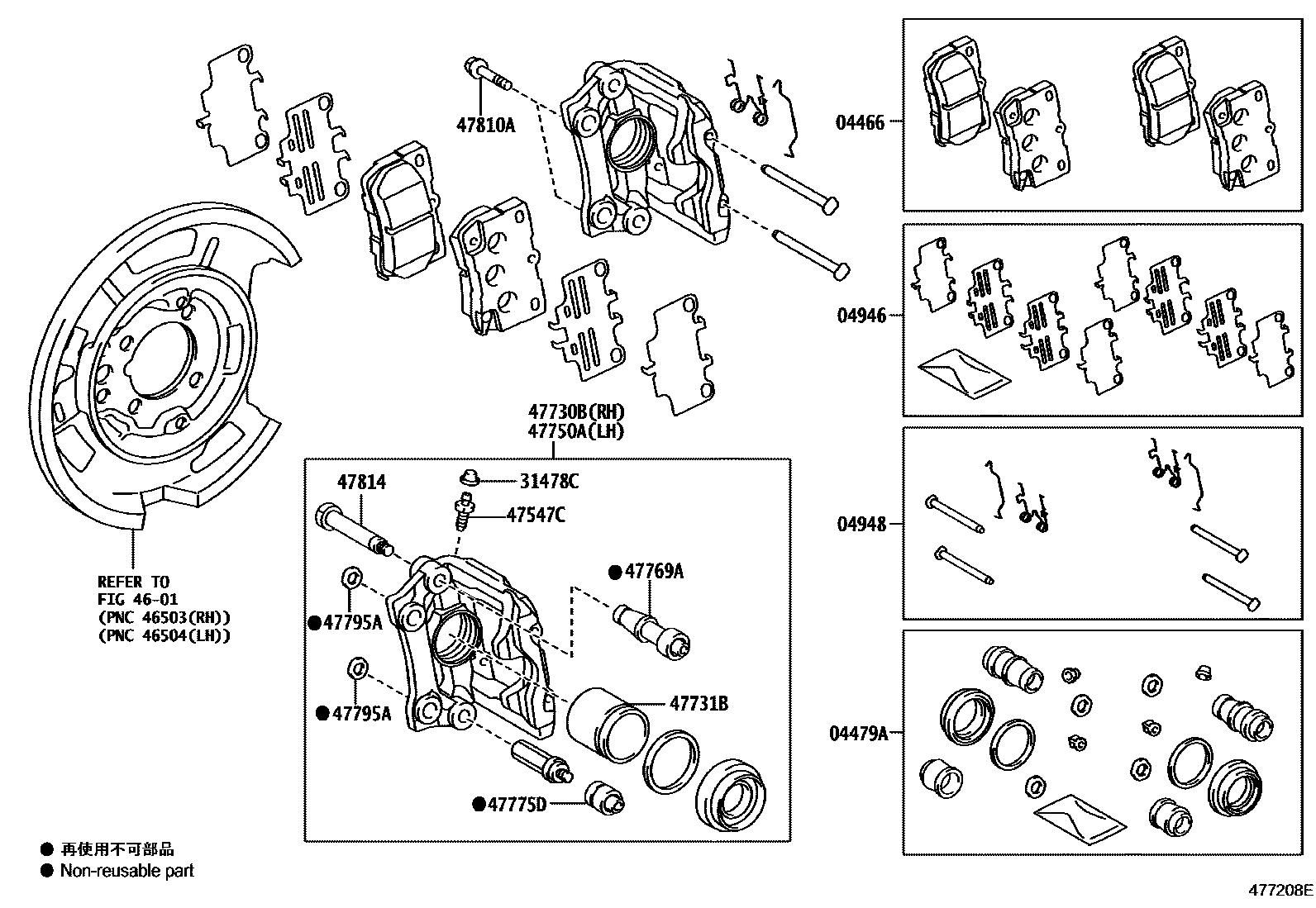

REAR DISC BRAKE CALIPER & DUST COVER

04466PAD KIT, DISC BRAKE, REAR

main04466-30230iGRS202201009-201212

MARK AK NS254

04479ACYLINDER KIT, DISC BRAKE, REAR

main04479-30510iGRS202201009-201104

sub04479-53070

main04479-53070iGRS202201104-201212

04946SHIM KIT, ANTI SQUEAL(FOR REAR DISC BRAKE)

main04946-30110iGRS202201009-201212

04948FITTING KIT, DISC BRAKE, REAR

main04948-30220iGRS202201009-201212

31478CCAP, BLEEDER PLUG(FOR REAR DISC BRAKE)

main31478-30010iGRS202201009-201212

4601

47547CPLUG, BLEEDER(FOR REAR DISC BRAKE)

main47547-27030iGRS202201009-201212

47730BCYLINDER ASSY, REAR DISC BRAKE, RH

main47830-53051iGRS202201009-201212

PNC 47810A=TYPE A

47731BPISTON, REAR DISC BRAKE

main47831-30300iGRS202201009-201212

47750ACYLINDER ASSY, DISC BRAKE, REAR LH

main47850-53051iGRS202201009-201212

PNC 47810A=TYPE A

47769ABUSH, CYLINDER SLIDE, NO.1(FOR REAR DISC BRAKE)

main47879-30300iGRS202201009-201212

47775DBOOT, BUSH DUST(FOR REAR DISC BRAKE)

main47875-30340iGRS202201009-201104

sub47875-30341

main47875-30341iGRS202201104-201212

47795APLATE, REAR DISC BRAKE CALIPER, NO.1

main47895-30300iGRS202201009-201212

47810ABOLT, HEXAGON(FOR REAR CALIPER)

main90105-10525iGRS202201009-201212

47814PIN, CYLINDER SLIDE, NO.1(FOR REAR DISC BRAKE)

main47814-30300iGRS202201009-201212

15 parts on this diagram · 1 diagram in section
