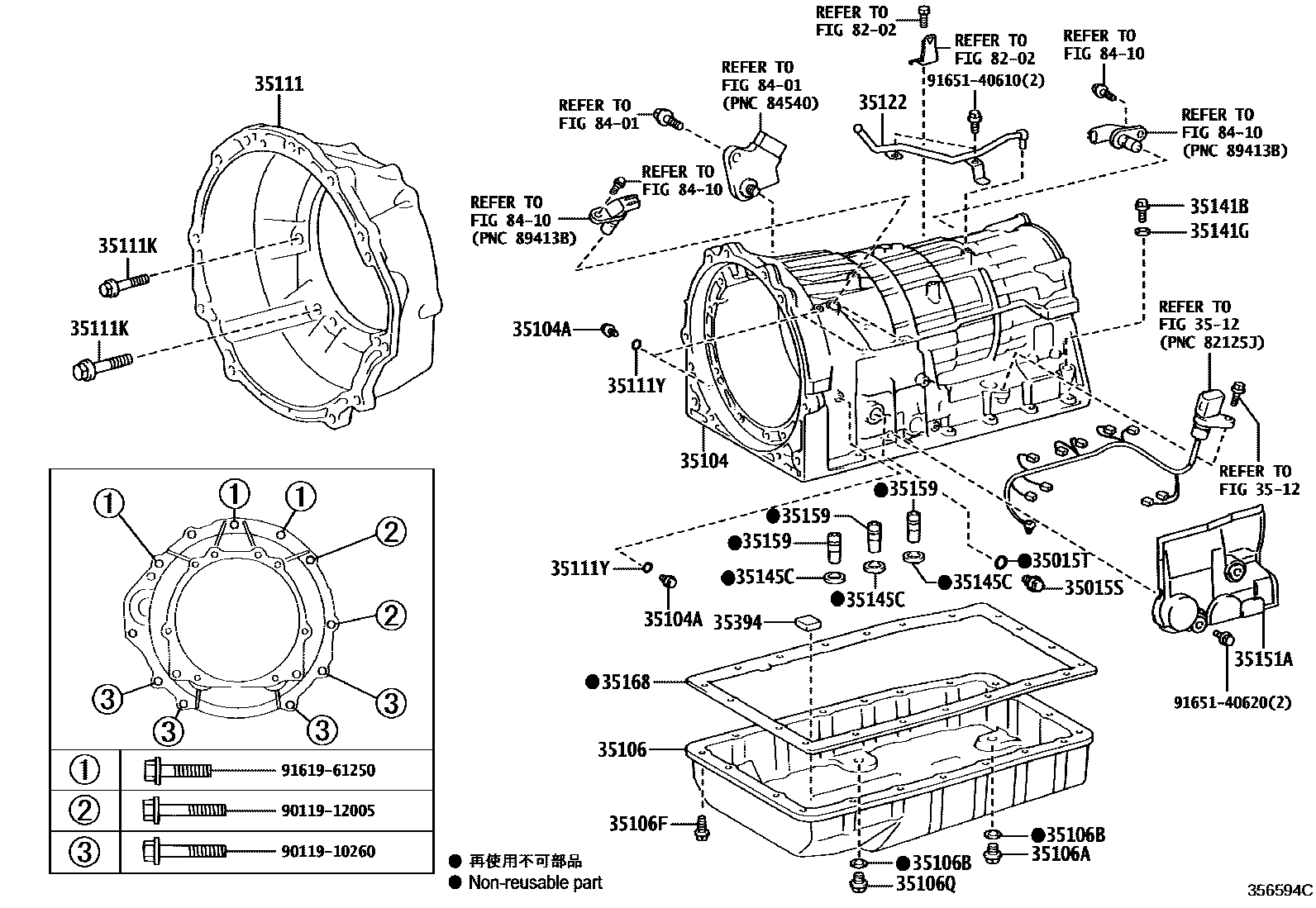

TRANSMISSION CASE & OIL PAN (ATM)

35015SPLUG, STRAIGHT(FOR TRANSMISSION CASE ADAPTER)

main90341-18059iGRS202201009-201212

35015TRING, O(FOR TRANSMISSION CASE ADAPTER)

main90301-15004iGRS202201009-201212

35104CASE SUB-ASSY, AUTOMATIC TRANSMISSION

main35104-22080iGRS202201009-201212

35104APLUG, AUTOMATIC TRANSMISSION CASE

main90341-08001×5iGRS202201009-201212

35106PAN SUB-ASSY, AUTOMATIC TRANSMISSION OIL

main35106-22120iGRS202201009-201212

35106APLUG SUB-ASSY, DRAIN (ATM)

main90341-10011iGRS202201009-201212

35106BGASKET, DRAIN PLUG (ATM)

main35178-30010×2iGRS202201009-201212

35106FBOLT (FOR AUTOMATIC TRANSMISSION OIL PAN)

main90119-06173×20iGRS202201009-201212

35106QPLUG (FOR AUTOMATIC TRANSMISSION OIL PAN)

main90341-10021iGRS202201009-201212

35111HOUSING, AUTOMATIC TRANSMISSION

main35111-22110iGRS202201009-201212

35111KBOLT (FOR TRANSMISSION HOUSING & CASE SETTING)

main90119-10232×6iGRS202201009-201212

*10-1.5PX35-30

main90119-10947×2iGRS202201009-201212

*10-1.50PX35-29.3

main90119-12378×2iGRS202201009-201212

*12-1.75PX38-30

35111YRING, O (FOR AUTOMATIC TRANSMISSION CASE)

main90301-06196×5iGRS202201009-201212

3512

35122TUBE, BREATHER (FOR AUTOMATIC TRANSAXLE)

main90930-03181iGRS202201009-201212

35141BPLUG (FOR AUTOMATIC TRANSMISSION CASE)

main90341-14011iGRS202201009-201212

35141GRING, O (FOR AUTOMATIC TRANSMISSION CASE)

main90301-11030iGRS202201009-201212

35145CGASKET, TRANSAXLE CASE

main35145-60020×3iGRS202201009-201212

35151ACOVER, TRANSAXLE CASE, UPPER

main35151-22020iGRS202201009-201212

35159GASKET, BRAKE DRUM

main35159-60010×3iGRS202201009-201212

35168GASKET, AUTOMATIC TRANSMISSION OIL PAN

main35168-22020iGRS202201009-201212

35394MAGNET, OIL CLEANER (FOR TRANSMISSION)

main35394-30011×3iGRS202201009-201212

8202

8401

8410

9011910260

main90119-10260

9011912005

main90119-12005

9161961250

main91619-61250

9165140610

main91651-40610

9165140620

main91651-40620

29 parts on this diagram · 1 diagram in section
