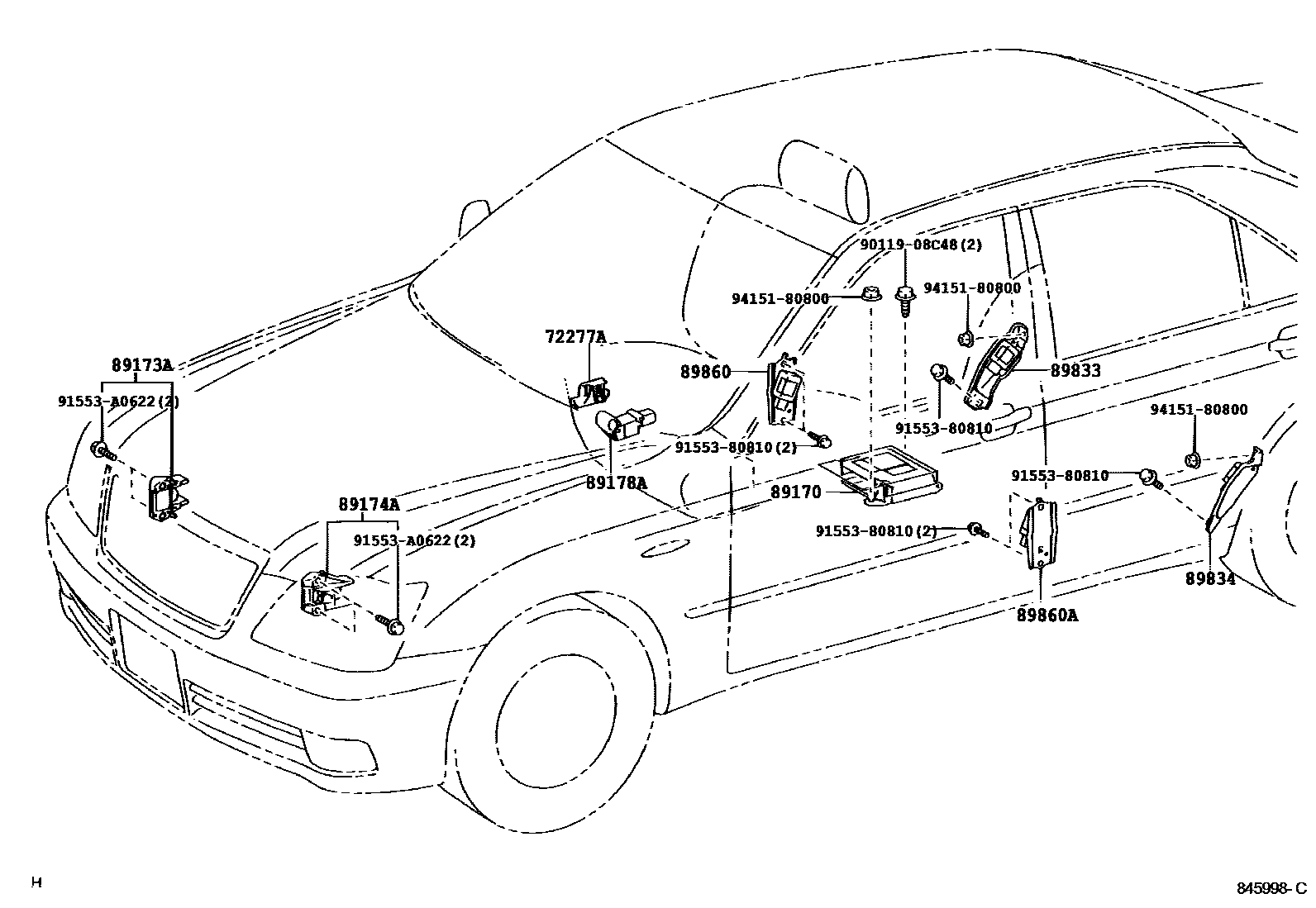

AIR BAG

72277APROTECTOR, SEAT SLIDE POSITION SENSOR

main72277-33021iGRS182200411-200509

89170SENSOR ASSY, AIRBAG

main89170-30411supersedes 89170-30620iGRS182200411-200509

SRS AIR BAG-WITH(DRIVER+PASSENGER+KNEE+SIDE+CURTAIN)

main89170-30610supersedes 89170-30620iGRS182200509-200802

SRS AIR BAG-WITH(DRIVER&PASSENGER&KNEE&SIDE&HEAD)

89173ASENSOR, AIRBAG, FRONT RH

main89173-49325iGRS182200411-200509

89174ASENSOR, AIRBAG, FRONT LH

main89173-49325iGRS182200411-200509

89178ASENSOR, SEAT POSITION AIRBAG

main89178-33050iGRS182200411-200509

89833SENSOR, AIRBAG, REAR RH

main89833-30010iGRS182200411-200509

SRS AIR BAG-WITH(DRIVER+PASSENGER+KNEE+SIDE+CURTAIN)

89834SENSOR, AIRBAG, REAR LH

main89834-30010iGRS182200411-200509

SRS AIR BAG-WITH(DRIVER+PASSENGER+KNEE+SIDE+CURTAIN)

89860SENSOR ASSY, SIDE AIRBAG, RH

main89860-30120iGRS182200411-200509

SRS AIR BAG-WITH(DRIVER+PASSENGER+KNEE+SIDE+CURTAIN)

89860ASENSOR ASSY, SIDE AIRBAG, LH

main89830-30120iGRS182200411-200509

SRS AIR BAG-WITH(DRIVER+PASSENGER+KNEE+SIDE+CURTAIN)

9011908C48

main90119-08C48

9155380810

main91553-80810

91553A0622

main91553-A0622

9415180800

main94151-80800

13 parts on this diagram · 1 diagram in section
