SIDE MOULDING

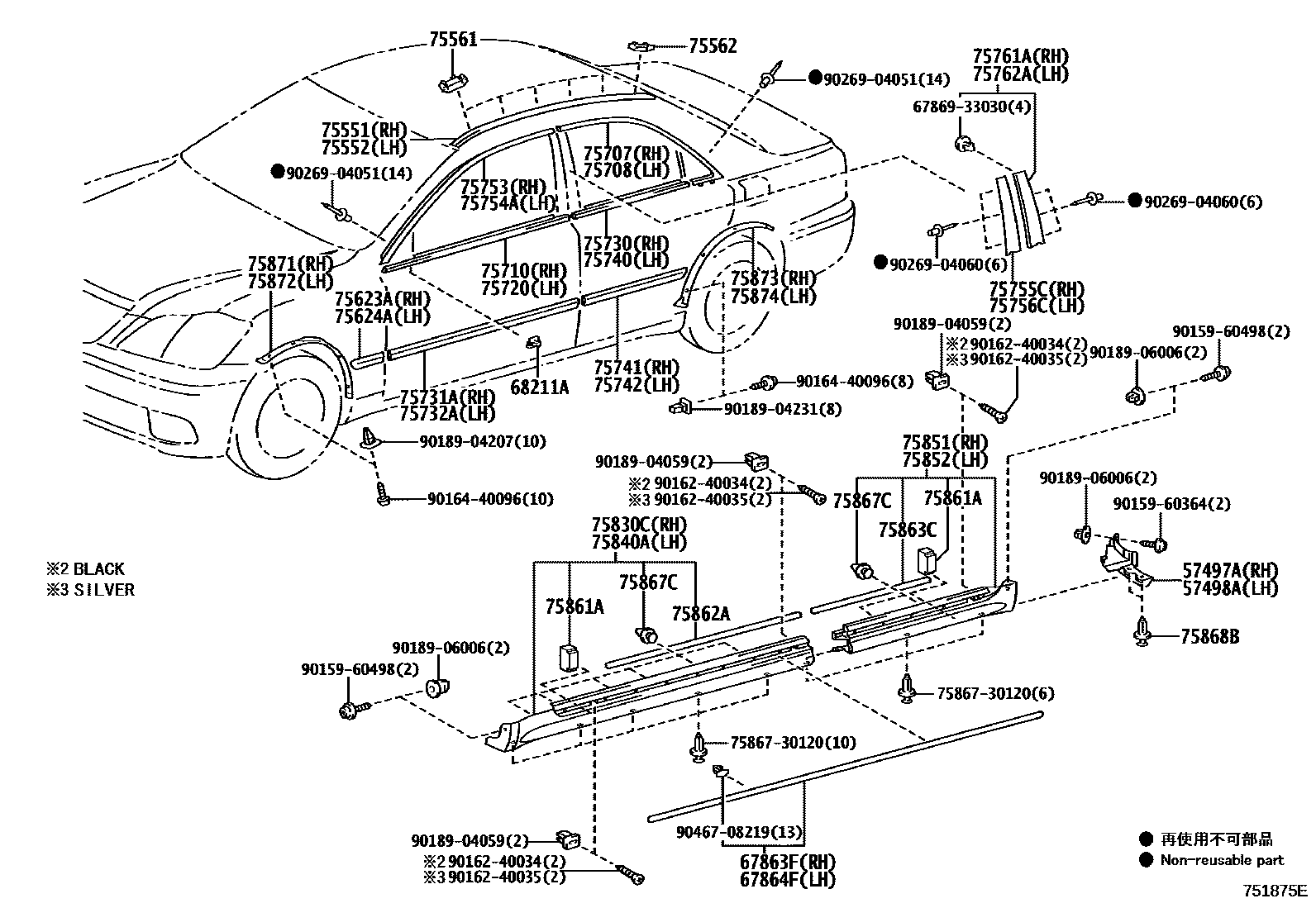

Parts diagram
57497ASHIELD, REAR FLOOR HOUSING
main57497-30030i200411-200509
57498ASHIELD, REAR FLOOR HOUSING, NO.2
main57498-30030i200411-200509
67863FWEATHERSTRIP, FRONT DOOR, NO.2 RH
main67863-30130i200411-200509
67864FWEATHERSTRIP, FRONT DOOR, NO.2 LH
main67863-30130i200411-200509
68211ACLIP, DOOR BELT MOULDING
main68211-30180×2i200411-200509
75551MOULDING, ROOF DRIP SIDE FINISH, RH
main75551-30440-A0i200509-200802
SUPER WHITE 2,040
main75551-30440-A1i200411-200509
WHITE PEARL CS.,062
main75551-30440-B0i200411-200509
SILVER ME.,1C0
main75551-30440-B1i200411-200509
SATIN PEARL MC.,1F3
main75551-30440-B2i200509-200802
SILVER ME.,1F7
main75551-30440-B3i200509-200802
QUARTZ GRAY PM.,1G4
main75551-30440-C0i200509-200802
BLACK,202
main75551-30440-D0i200411-200509
BLACKISH RED MC.,3R0
main75551-30440-D1i200509-200704
GINGER RED M.M.,3R6
main75551-30440-J0i200411-200509
DARK BLUE MC.,8P8
main75551-30440-J2i200509-200802
DK.BLUE MC.,8S6
75552MOULDING, ROOF DRIP SIDE FINISH, LH
main75552-30440-A0i200509-200802
SUPER WHITE 2,040
main75552-30440-A1i200509-200802
WHITE PEARL CS.,062
main75552-30440-B0i200411-200509
SILVER ME.,1C0
main75552-30440-B1i200411-200509
SATIN PEARL MC.,1F3
main75552-30440-B2i200509-200802
SILVER ME.,1F7
main75552-30440-B3i200509-200802
QUARTZ GRAY PM.,1G4
main75552-30440-C0i200411-200509
BLACK,202
main75552-30440-D0i200411-200509
BLACKISH RED MC.,3R0
main75552-30440-D1i200509-200704
GINGER RED M.M.,3R6
main75552-30440-J0i200411-200509
DARK BLUE MC.,8P8
main75552-30440-J2i200509-200802
DK.BLUE MC.,8S6
75561CLIP, ROOF DRIP SIDE FINISH MOULDING, NO.1
main75561-30110×10i200411-200509
75562CLIP, ROOF DRIP SIDE FINISH MOULDING, NO.2
main75562-30060×2i200411-200509
75623AMOULDING, FRONT FENDER, OUTSIDE REAR RH
main75623-30390-A0i200411-200509
SUPER WHITE 2,040
main75623-30390-A1i200509-200512
WHITE PEARL CS.,062
main75623-30390-B0i200411-200509
SILVER ME.,1C0
main75623-30390-B1i200411-200509
PREMIUM SILVER PEARL,1F3
main75623-30390-B2i200509-200512
SILVER ME.,1F7
main75623-30390-B3i200509-200512
QUARTZ GRAY PM.,1G4
main75623-30390-C0i200509-200512
BLACK,202
main75623-30390-D0i200411-200509
BLACKISH RED MC.,3R0
main75623-30390-D1i200509-200512
GINGER RED M.M.,3R6
main75623-30390-J0i200411-200509
DARK BLUE MC.,8P8
main75623-30390-J2i200509-200512
DK.BLUE MC.,8S6
main75623-30391-A0i200601-200802
SUPER WHITE 2,040
sub75623-30392
main75623-30391-A1i200601-200802
WHITE PEARL CS.,062
sub75623-30392
main75623-30391-B1i200601-200802
PREMIUM SILVER PEARL,1F3
sub75623-30392
main75623-30391-B2i200601-200802
SILVER ME.,1F7
sub75623-30392
main75623-30391-B3i200601-200802
QUARTZ GRAY PM.,1G4
sub75623-30392
main75623-30391-C0i200601-200802
BLACK,202
sub75623-30392
main75623-30391-D0i200704-200802
BLACKISH RED MC.,3R0
sub75623-30392
main75623-30391-D1i200601-200704
GINGER RED M.M.,3R6
sub75623-30392
main75623-30391-J2i200601-200802
DK.BLUE MC.,8S6
sub75623-30392
75624AMOULDING, FRONT FENDER, OUTSIDE REAR LH
main75624-30390-A0i200411-200509
SUPER WHITE 2,040
main75624-30390-A1i200509-200512
WHITE PEARL CS.,062
main75624-30390-B0i200411-200509
SILVER ME.,1C0
main75624-30390-B1i200509-200512
PREMIUM SILVER PEARL,1F3
main75624-30390-B2i200509-200512
SILVER ME.,1F7
main75624-30390-B3i200509-200512
QUARTZ GRAY PM.,1G4
main75624-30390-C0i200411-200509
BLACK,202
main75624-30390-D0i200411-200509
BLACKISH RED MC.,3R0
main75624-30390-D1i200509-200512
GINGER RED M.M.,3R6
main75624-30390-J0i200411-200509
DARK BLUE MC.,8P8
main75624-30390-J2i200509-200512
DK.BLUE MC.,8S6
main75624-30391-A0i200601-200802
SUPER WHITE 2,040
sub75624-30392
main75624-30391-A1i200601-200802
WHITE PEARL CS.,062
sub75624-30392
main75624-30391-B1i200601-200802
PREMIUM SILVER PEARL,1F3
sub75624-30392
main75624-30391-B2i200601-200802
SILVER ME.,1F7
sub75624-30392
main75624-30391-B3i200601-200802
QUARTZ GRAY PM.,1G4
sub75624-30392
main75624-30391-C0i200601-200802
BLACK,202
sub75624-30392
main75624-30391-D0i200704-200802
BLACKISH RED MC.,3R0
sub75624-30392
main75624-30391-D1i200601-200704
GINGER RED M.M.,3R6
sub75624-30392
main75624-30391-J2i200601-200802
DK.BLUE MC.,8S6
sub75624-30392
75707MOULDING SUB-ASSY, REAR DOOR WINDOW FRAME, RH
main75707-30050i200411-200509
75708MOULDING SUB-ASSY, REAR DOOR WINDOW FRAME, LH
main75708-30060i200411-200509
75710MOULDING ASSY, FRONT DOOR BELT, RH
main75710-30470i200411-200509
75720MOULDING ASSY, FRONT DOOR BELT, LH
main75720-30470i200411-200509
75730MOULDING ASSY, REAR DOOR BELT, RH
main75730-30350i200411-200509
75731AMOULDING, FRONT DOOR, OUTSIDE RH
main75731-30540-A0i200509-200512
SUPER WHITE 2,040
main75731-30540-A1i200411-200509
WHITE PEARL CS.,062
main75731-30540-B0i200411-200509
SILVER ME.,1C0
main75731-30540-B1i200411-200509
PREMIUM SILVER PEARL,1F3
main75731-30540-B2i200509-200512
SILVER ME.,1F7
main75731-30540-B3i200509-200512
QUARTZ GRAY PM.,1G4
main75731-30540-C0i200411-200509
BLACK,202
main75731-30540-D0i200411-200509
BLACKISH RED MC.,3R0
main75731-30540-D1i200509-200512
GINGER RED M.M.,3R6
main75731-30540-J0i200411-200509
DARK BLUE MC.,8P8
main75731-30540-J2i200509-200512
DK.BLUE MC.,8S6
main75731-30541-A0i200601-200802
SUPER WHITE 2,040
sub75731-30542
main75731-30541-A1i200601-200802
WHITE PEARL CS.,062
sub75731-30542
main75731-30541-B1i200601-200802
PREMIUM SILVER PEARL,1F3
sub75731-30542
main75731-30541-B2i200601-200802
SILVER ME.,1F7
sub75731-30542
main75731-30541-B3i200601-200802
QUARTZ GRAY PM.,1G4
sub75731-30542
main75731-30541-C0i200601-200802
BLACK,202
sub75731-30542
main75731-30541-D0i200704-200802
BLACKISH RED MC.,3R0
sub75731-30542
main75731-30541-D1i200601-200704
GINGER RED M.M.,3R6
sub75731-30542
main75731-30541-J2i200601-200802
DK.BLUE MC.,8S6
sub75731-30542
75732AMOULDING, FRONT DOOR, OUTSIDE LH
main75732-30530-A0i200509-200512
SUPER WHITE 2,040
main75732-30530-A1i200411-200509
WHITE PEARL CS.,062
main75732-30530-B0i200411-200509
SILVER ME.,1C0
main75732-30530-B1i200411-200509
PREMIUM SILVER PEARL,1F3
main75732-30530-B2i200509-200512
SILVER ME.,1F7
main75732-30530-B3i200509-200512
QUARTZ GRAY PM.,1G4
main75732-30530-C0i200509-200512
BLACK,202
main75732-30530-D0i200411-200509
BLACKISH RED MC.,3R0
main75732-30530-D1i200509-200512
GINGER RED M.M.,3R6
main75732-30530-J0i200411-200509
DARK BLUE MC.,8P8
main75732-30530-J2i200509-200512
DK.BLUE MC.,8S6
main75732-30531-A0i200601-200802
SUPER WHITE 2,040
sub75732-30532
main75732-30531-A1i200601-200802
WHITE PEARL CS.,062
sub75732-30532
main75732-30531-B1i200601-200802
PREMIUM SILVER PEARL,1F3
sub75732-30532
main75732-30531-B2i200601-200802
SILVER ME.,1F7
sub75732-30532
main75732-30531-B3i200601-200802
QUARTZ GRAY PM.,1G4
sub75732-30532
main75732-30531-C0i200601-200802
BLACK,202
sub75732-30532
main75732-30531-D0i200704-200802
BLACKISH RED MC.,3R0
sub75732-30532
main75732-30531-D1i200601-200704
GINGER RED M.M.,3R6
sub75732-30532
main75732-30531-J2i200601-200802
DK.BLUE MC.,8S6
sub75732-30532
75740MOULDING ASSY, REAR DOOR BELT, LH
main75740-30400i200411-200509
75741MOULDING, REAR DOOR, OUTSIDE RH
main75741-30560-A0i200411-200509
SUPER WHITE 2,040
main75741-30560-A1i200411-200509
WHITE PEARL CS.,062
main75741-30560-B0i200411-200509
SILVER ME.,1C0
main75741-30560-B1i200509-200512
PREMIUM SILVER PEARL,1F3
main75741-30560-B2i200509-200512
SILVER ME.,1F7
main75741-30560-B3i200509-200512
QUARTZ GRAY PM.,1G4
main75741-30560-C0i200411-200509
BLACK,202
main75741-30560-D0i200411-200509
BLACKISH RED MC.,3R0
main75741-30560-D1i200509-200512
GINGER RED M.M.,3R6
main75741-30560-J0i200411-200509
DARK BLUE MC.,8P8
main75741-30560-J2i200509-200512
DK.BLUE MC.,8S6
main75741-30561-A0i200601-200802
SUPER WHITE 2,040
sub75741-30562
main75741-30561-A1i200601-200802
WHITE PEARL CS.,062
sub75741-30562
main75741-30561-B1i200601-200802
PREMIUM SILVER PEARL,1F3
sub75741-30562
main75741-30561-B2i200601-200802
SILVER ME.,1F7
sub75741-30562
main75741-30561-B3i200601-200802
QUARTZ GRAY PM.,1G4
sub75741-30562
main75741-30561-C0i200601-200802
BLACK,202
sub75741-30562
main75741-30561-D0i200704-200802
BLACKISH RED MC.,3R0
sub75741-30562
main75741-30561-D1i200601-200704
GINGER RED M.M.,3R6
sub75741-30562
main75741-30561-J2i200601-200802
DK.BLUE MC.,8S6
sub75741-30562
75742MOULDING, REAR DOOR, OUTSIDE LH
main75742-30520-A0i200509-200512
SUPER WHITE 2,040
main75742-30520-A1i200411-200509
WHITE PEARL CS.,062
main75742-30520-B0i200411-200509
SILVER ME.,1C0
main75742-30520-B1i200411-200509
PREMIUM SILVER PEARL,1F3
main75742-30520-B2i200509-200512
SILVER ME.,1F7
main75742-30520-B3i200509-200512
QUARTZ GRAY PM.,1G4
main75742-30520-C0i200509-200512
BLACK,202
main75742-30520-D0i200411-200509
BLACKISH RED MC.,3R0
main75742-30520-D1i200509-200512
GINGER RED M.M.,3R6
main75742-30520-J0i200411-200509
DARK BLUE MC.,8P8
main75742-30520-J2i200509-200512
DK.BLUE MC.,8S6
main75742-30521-A0i200601-200802
SUPER WHITE 2,040
sub75742-30522
main75742-30521-A1i200601-200802
WHITE PEARL CS.,062
sub75742-30522
main75742-30521-B1i200601-200802
PREMIUM SILVER PEARL,1F3
sub75742-30522
main75742-30521-B2i200601-200802
SILVER ME.,1F7
sub75742-30522
main75742-30521-B3i200601-200802
QUARTZ GRAY PM.,1G4
sub75742-30522
main75742-30521-C0i200601-200802
BLACK,202
sub75742-30522
main75742-30521-D0i200704-200802
BLACKISH RED MC.,3R0
sub75742-30522
main75742-30521-D1i200601-200704
GINGER RED M.M.,3R6
sub75742-30522
main75742-30521-J2i200601-200802
DK.BLUE MC.,8S6
sub75742-30522
75753MOULDING, FRONT DOOR WINDOW FRAME, UPPER RH
main75753-30060i200411-200501
main75753-30080i200501-200509
75754AMOULDING, FRONT DOOR WINDOW FRAME, UPPER LH
main75754-30070i200411-200501
main75754-30090i200501-200509
75755CMOULDING, FRONT DOOR WINDOW FRAME, REAR RH
main75755-30110i200411-200509
75756CMOULDING, FRONT DOOR WINDOW FRAME, REAR LH
main75756-30100i200509-200802
75761AMOULDING, REAR DOOR WINDOW FRAME, FRONT RH
main75761-30100i200411-200509
NO PAINT REQ.
75762AMOULDING, REAR DOOR WINDOW FRAME, FRONT LH
main75762-30100i200411-200509
NO PAINT REQ.
75830CMOULDING ASSY, ROCKER PANEL, FRONT RH
main75830-30070-A0i200509-200802
SUPER WHITE 2,040
main75830-30070-A1i200411-200509
WHITE PEARL CS.,062
main75830-30070-B0i200411-200509
SILVER ME.,1C0
main75830-30070-B1i200411-200509
SATIN PEARL MC.,1F3
main75830-30070-B2i200509-200802
SILVER ME.,1F7
main75830-30070-B3i200509-200802
QUARTZ GRAY PM.,1G4
main75830-30070-C0i200509-200802
BLACK,202
main75830-30070-D0i200411-200509
BLACKISH RED MC.,3R0
main75830-30070-D1i200509-200704
GINGER RED M.M.,3R6
main75830-30070-J0i200411-200509
DARK BLUE MC.,8P8
main75830-30070-J1i200509-200802
DK.BLUE MC.,8S6
75840AMOULDING ASSY, ROCKER PANEL, FRONT LH
main75840-30070-A0i200509-200802
SUPER WHITE 2,040
main75840-30070-A1i200509-200802
WHITE PEARL CS.,062
main75840-30070-B0i200411-200509
SILVER ME.,1C0
main75840-30070-B1i200411-200509
SATIN PEARL MC.,1F3
main75840-30070-B2i200509-200802
SILVER ME.,1F7
main75840-30070-B3i200509-200802
QUARTZ GRAY PM.,1G4
main75840-30070-C0i200509-200802
BLACK,202
main75840-30070-D0i200704-200802
BLACKISH RED MC.,3R0
main75840-30070-D1i200509-200704
GINGER RED M.M.,3R6
main75840-30070-J0i200411-200509
DARK BLUE MC.,8P8
main75840-30070-J1i200509-200802
DK.BLUE MC.,8S6
75851MOULDING, ROCKER PANEL, RH
main75850-30300-A0i200509-200802
SUPER WHITE 2,040
main75850-30300-A1i200509-200802
WHITE PEARL CS.,062
main75850-30300-B0i200411-200509
SILVER ME.,1C0
main75850-30300-B1i200411-200509
SATIN PEARL MC.,1F3
main75850-30300-B2i200509-200802
SILVER ME.,1F7
main75850-30300-B3i200509-200802
QUARTZ GRAY PM.,1G4
main75850-30300-C0i200509-200802
BLACK,202
main75850-30300-D0i200704-200802
BLACKISH RED MC.,3R0
main75850-30300-D1i200509-200704
GINGER RED M.M.,3R6
main75850-30300-J0i200411-200509
DARK BLUE MC.,8P8
main75850-30300-J1i200509-200802
DK.BLUE MC.,8S6
75852MOULDING, ROCKER PANEL, LH
main75860-30290-A0i200509-200802
SUPER WHITE 2,040
main75860-30290-A1i200509-200802
WHITE PEARL CS.,062
main75860-30290-B0i200411-200509
SILVER ME.,1C0
main75860-30290-B1i200509-200802
SATIN PEARL MC.,1F3
main75860-30290-B2i200509-200802
SILVER ME.,1F7
main75860-30290-B3i200509-200802
QUARTZ GRAY PM.,1G4
main75860-30290-C0i200509-200802
BLACK,202
main75860-30290-D0i200704-200802
BLACKISH RED MC.,3R0
main75860-30290-D1i200509-200704
GINGER RED M.M.,3R6
main75860-30290-J0i200411-200509
DARK BLUE MC.,8P8
main75860-30290-J1i200509-200802
DK.BLUE MC.,8S6
75861APROTECTOR, ROCKER PANEL MOULDING, NO.1
main75861-30130×4i200411-200509
sub75861-30131
75862APROTECTOR, ROCKER PANEL MOULDING, NO.2
main75862-30120×2i200411-200509
75863CPROTECTOR, ROCKER PANEL MOULDING, NO.3
main75863-30080×2i200411-200509
75867CCLIP, ROCKER PANEL MOULDING
main75867-30130×16i200411-200509
75868BCLIP, ROCKER PANEL MOULDING, NO.2
main75867-30120×4i200411-200509
75871MOULDING, FRONT FENDER WHEEL OPENING, RH
main75871-30340i200411-200509
75872MOULDING, FRONT FENDER WHEEL OPENING, LH
main75872-30340i200411-200509
75873MOULDING, QUARTER PANEL WHEEL OPENING, RH
main75873-30340i200411-200509
75874MOULDING, QUARTER PANEL WHEEL OPENING, LH
main75874-30340i200411-200509
6786933030PLATE, WEATHERSTRIP, CENTER DOOR, UPPER
main67869-33030
7586730120MOULDING, FRONT PANEL
main75867-30120
9015960364
main90159-60364
9015960498
main90159-60498
9016240034
main90162-40034
9016240035
main90162-40035
9016440096
main90164-40096
9018904059
main90189-04059
9018904207
main90189-04207
9018904231
main90189-04231
9018906006
main90189-06006
9026904051
main90269-04051
9026904060
main90269-04060
9046708219
main90467-08219

54 parts on this diagram · 1 diagram in section

SIDE MOULDING — Toyota Parts Diagram with OEM Numbers & Prices | EPC Data
