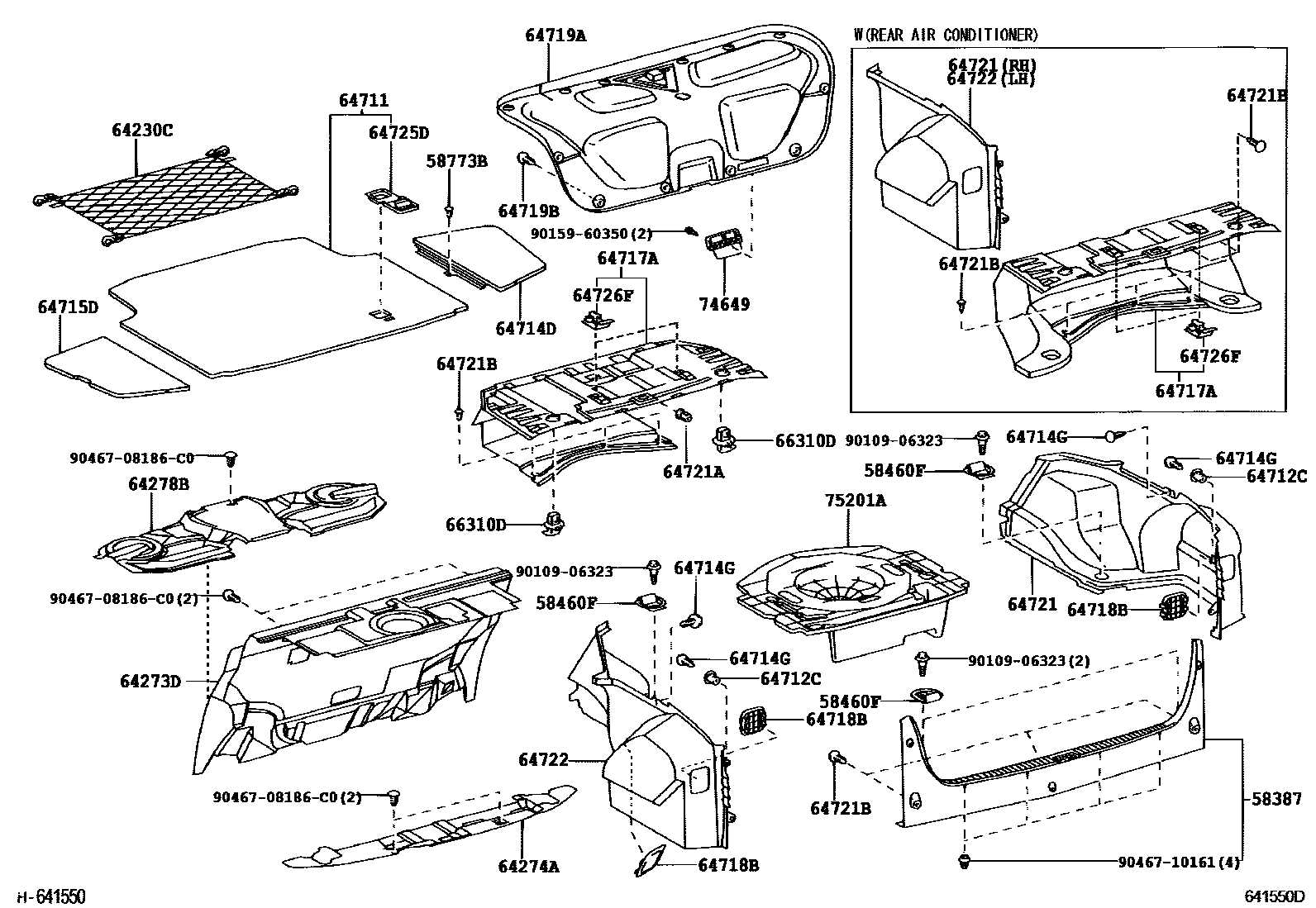

PACKAGE TRAY PANEL & LUGGAGE COMPARTMENT MAT
58387PLATE, REAR FLOOR FINISH
BLACK,TRIM0#,1#
58460FSTRIKER ASSY, LUGGAGE HOLD BELT
58773BCLIP(FOR LUGGAGE COMPARTMENT SIDE COVER)
64230CNET ASSY, ROOM PARTITION
64273DPAD, ROOM PARTITION, NO.1
W(REAR AIR CONDITIONER)&EASY-ACCESS POWER SYSTEM-WITH(TILT+SEAT SLIDE)
WITH(REAR AIR CONDITIONER)&EASY-ACCESS POWER SYSTEM-WITH(TILT+SEAT SLIDE)
64274APAD, ROOM PARTITION, NO.2
64278BPAD, ROOM PARTITION, NO.3
64711MAT, LUGGAGE COMPARTMENT FLOOR
64712CCLIP(FOR LUGGAGE COMPARTMENT TRIM COVER)
64714DCOVER, LUGGAGE COMPARTMENT TRIM, SIDE, RH
BLACK,TRIM0#,1#
64714GCLIP(FOR LUGGAGE COMPARTMENT TRIM SIDE COVER)
64715DCOVER, LUGGAGE COMPARTMENT TRIM, SIDE, LH
BLACK,TRIM0#,1#
64717ACOVER, LUGGAGE COMPARTMENT TRIM, FRONT
WITH(REAR AIR CONDITIONER),BLACK,TRIM0#,1#
W(REAR AIR CONDITIONER),BLACK,TRIM0#,1#
64718BCOVER, LUGGAGE TRIM SERVICE HOLE
64719ACOVER, LUGGAGE COMPARTMENT DOOR
BLACK,TRIM0#,1#
64719BCLIP(FOR LUGGAGE COMPARTMENT DOOR)
64721COVER, LUGGAGE COMPARTMENT TRIM, INNER RH
BLACK,TRIM0#,1#
W(REAR AIR CONDITIONER),BLACK,TRIM0#,1#
WITH(REAR AIR CONDITIONER),BLACK,TRIM0#,1#
64721ACLIP(FOR LUGGAGE COMPARTMENT TRIM INNER COVER)
64721BCOVER, LUGGAGE COMPARTMENT TRIM, NO.1
64722COVER, LUGGAGE COMPARTMENT TRIM, INNER LH
BLACK,TRIM0#,1#
W(REAR AIR CONDITIONER),BLACK,TRIM0#,1#
WITH(REAR AIR CONDITIONER),BLACK,TRIM0#,1#
64725DHOOK, LUGGAGE COMPARTMENT TRIM, NO.1
64726FHOOK, LUGGAGE COMPARTMENT TRIM, NO.2
BLACK,TRIM0#,1#
66310DHOOK ASSY, ROPE
BLACK,TRIM0#,1#
74649GRIP, LUGGAGE COMPARTMENT DOOR ASSIST
75201ABOX, TOOL
BLACK,TRIM0#,1#
9010906323
main90109-06323
9015960350
main90159-60350
9046708186C0
main90467-08186C0
9046710161
main90467-10161
29 parts on this diagram · 2 diagrams in section
