SIDE MEMBER

53821BBRACKET, FRONT FENDER, REAR RH

main53821-30130iGRS182200411-200802

53822BBRACKET, FRONT FENDER, REAR LH

main53822-30140iGRS182200411-200802

55713CPANEL, COWL TOP SIDE, RH

main55713-30100iGRS182200411-200802

55714CPANEL, COWL TOP SIDE, LH

main55714-30100iGRS182200411-200802

5701

61037AREINFORCEMENT SUB-ASSY, CENTER BODY PILLAR, RH

main61037-30090iGRS182200411-200802

61038AREINFORCEMENT SUB-ASSY, CENTER BODY PILLAR, LH

main61038-30090iGRS182200411-200802

61106AREINFORCE SUB-ASSY, FRONT BODY PILLAR, UPPER RH

main61106-30160iGRS182200411-200802

61107BREINFORCE SUB-ASSY, FRONT BODY PILLAR, UPPER LH

main61107-30140iGRS182200411-200802

61131PILLAR, FRONT BODY, UPPER OUTER RH

main61131-30250iGRS182200411-200802

61132PILLAR, FRONT BODY, UPPER OUTER LH

main61132-30290iGRS182200411-200802

61141CEXTENSION, FRONT PILLAR, UPPER INNER RH

main61141-30160iGRS182200411-200802

61142CEXTENSION, FRONT PILLAR, UPPER INNER LH

main61142-30160iGRS182200411-200802

61145BGUSSET, FRONT BODY PILLAR, LOWER RH

main61145-30060iGRS182200411-200802

61146BGUSSET, FRONT BODY PILLAR, LOWER LH

main61146-30060iGRS182200411-200802

61161PILLAR, FRONT BODY, UPPER INNER RH

main61161-30300iGRS182200411-200802

61162PILLAR, FRONT BODY, UPPER INNER LH

main61162-0N010iGRS182200411-200802

61173AREINFORCEMENT, FRONT BODY PILLAR, UPPER INNER RH

main61173-30140iGRS182200411-200802

61174AREINFORCEMENT, FRONT BODY PILLAR, UPPER INNER LH

main61174-30140iGRS182200411-200802

61211RAIL, ROOF SIDE, OUTER RH

main61211-30270iGRS182200411-200802

61212RAIL, ROOF SIDE, OUTER LH

main61212-30270iGRS182200411-200802

61225CHANNEL, ROOF DRIP, CENTER RH

main61225-30010iGRS182200411-200501

sub61225-30011

main61225-30011iGRS182200502-200802

61226CHANNEL, ROOF DRIP, CENTER LH

main61226-30010iGRS182200411-200501

sub61226-30011

main61226-30011iGRS182200502-200802

61231RAIL, ROOF SIDE, INNER RH

main61231-30390iGRS182200411-200802

61232RAIL, ROOF SIDE, INNER LH

main61232-30390iGRS182200411-200802

61233ARAIL, ROOF SIDE, INNER NO.2 RH

main61233-30050iGRS182200411-200802

61234ARAIL, ROOF SIDE, INNER NO.2 LH

main61234-30040iGRS182200411-200802

61311BPILLAR, CENTER BODY, OUTER RH

main61311-30240iGRS182200411-200802

61312BPILLAR, CENTER BODY, OUTER LH

main61312-30330iGRS182200411-200802

61339BSEAL, CENTER BODY PILLAR, INNER NO.1

main61339-30010iGRS182200411-200802

61343APILLAR, CENTER BODY, INNER RH

main61343-30211iGRS182200411-200802

61344APILLAR, CENTER BODY, INNER LH

main61344-30221iGRS182200411-200802

61427REINFORCEMENT, ROCKER PANEL, NO.5 RH

main61427-30080iGRS182200411-200802

61428CREINFORCEMENT, ROCKER PANEL, NO.5 LH

main61428-30130iGRS182200411-200802

61433AREINFORCEMENT, ROCKER PANEL, OUTER RH

main61401-30260iGRS182200411-200802

61434AREINFORCEMENT, ROCKER PANEL, OUTER LH

main61402-30260iGRS182200411-200802

61611PANEL, QUARTER, RH

main61611-30860iGRS182200411-200501

sub61611-30861

main61611-30861iGRS182200502-200802

61612PANEL, QUARTER, LH

main61612-30A00iGRS182200411-200501

sub61612-30A01

main61612-30A01iGRS182200502-200802

61621CTROUGH, LUGGAGE COMPARTMENT OPENING, RH

main61063-30010iGRS182200411-200802

61622CTROUGH, LUGGAGE COMPARTMENT OPENING, LH

main61064-30010iGRS182200411-200802

61631APANEL, QUARTER WHEEL HOUSE, OUTER RH

main61631-30190iGRS182200411-200802

61632APANEL, QUARTER WHEEL HOUSE, OUTER LH

main61632-30190iGRS182200411-200802

61633APANEL, QUARTER WHEEL HOUSE, INNER RH

main61607-30230iGRS182200411-200503

sub61607-30270

main61607-30231iGRS182200503-200802

61634APANEL, QUARTER WHEEL HOUSE, INNER LH

main61608-30220iGRS182200411-200802

61641CGUSSET, QUARTER WHEEL HOUSE, FRONT RH

main61641-30050iGRS182200411-200802

61642CGUSSET, QUARTER WHEEL HOUSE, FRONT LH

main61642-30050iGRS182200411-200802

61731BPANEL, ROOF SIDE, INNER RH

main61701-30010iGRS182200411-200504

sub61701-30011

main61701-30011iGRS182200505-200802

61732BPANEL, ROOF SIDE, INNER LH

main61702-30010iGRS182200411-200504

sub61702-30011

main61702-30011iGRS182200505-200802

61735APANEL, ROOF SIDE, INNER REAR RH

main61735-30080iGRS182200411-200802

61736APANEL, ROOF SIDE, INNER REAR LH

main61736-30070iGRS182200411-200802

62151BPAD, COWL SIDE SILENCER

main62151-20160iGRS182200411-200802

62554BPAD, PILLAR, NO.4

main62554-30010iGRS182200411-200802

64213EXTENSION, PACKAGE TRAY STRAINER, RH

main64201-30200iGRS182200411-200802

64214EXTENSION, PACKAGE TRAY STRAINER, LH

main64202-30190iGRS182200411-200802

65637LINER, REAR WHEEL HOUSE, RH

main65637-30020iGRS182200411-200802

65638LINER, REAR WHEEL HOUSE, LH

main65638-30020iGRS182200411-200802

6427430040PAD, ROOM PARTITION TRIM, NO.1

main64274-30040

9011906768

main90119-06768

9017806011

main90178-06011

9018906157

main90189-06157

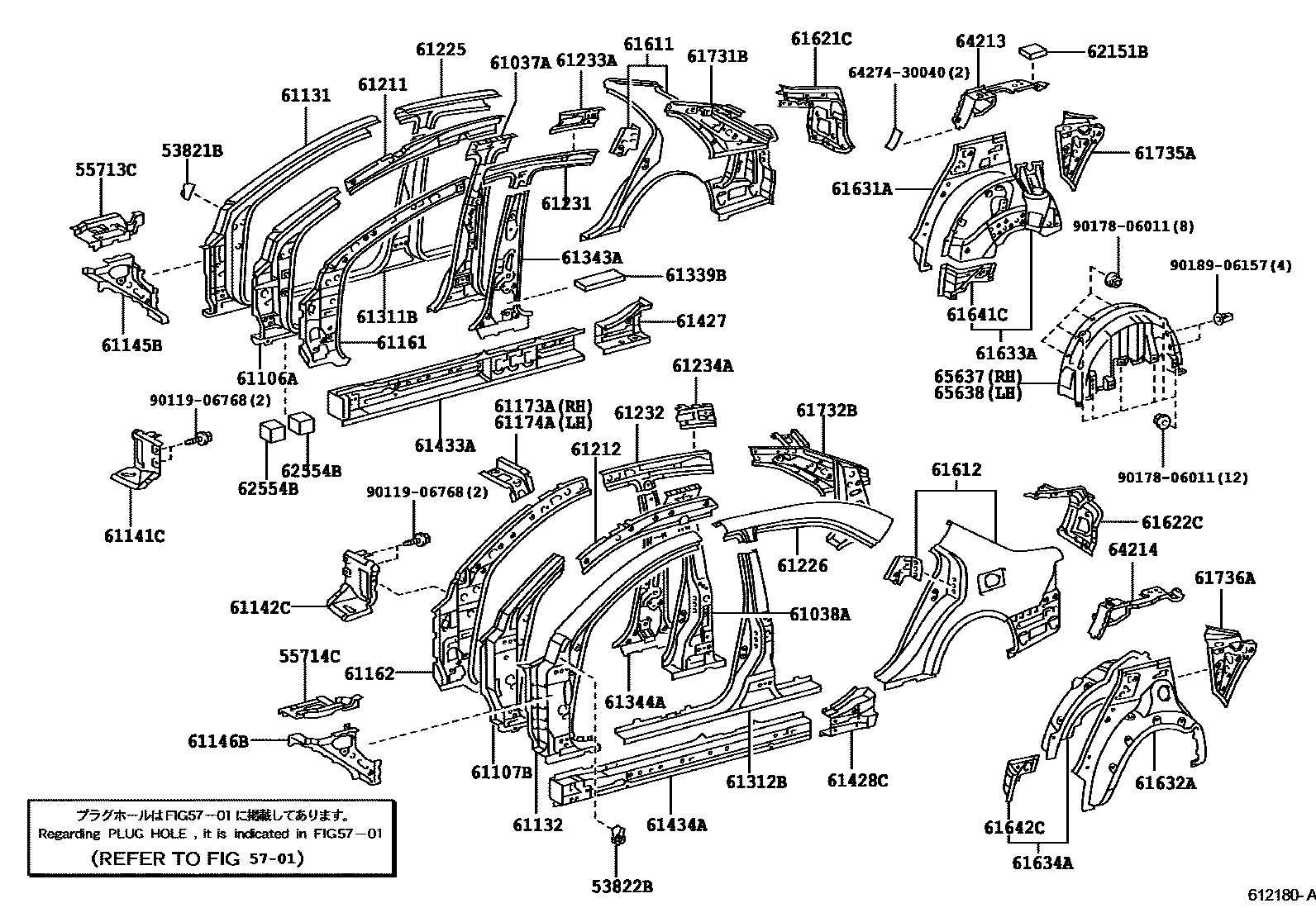

60 parts on this diagram · 1 diagram in section
