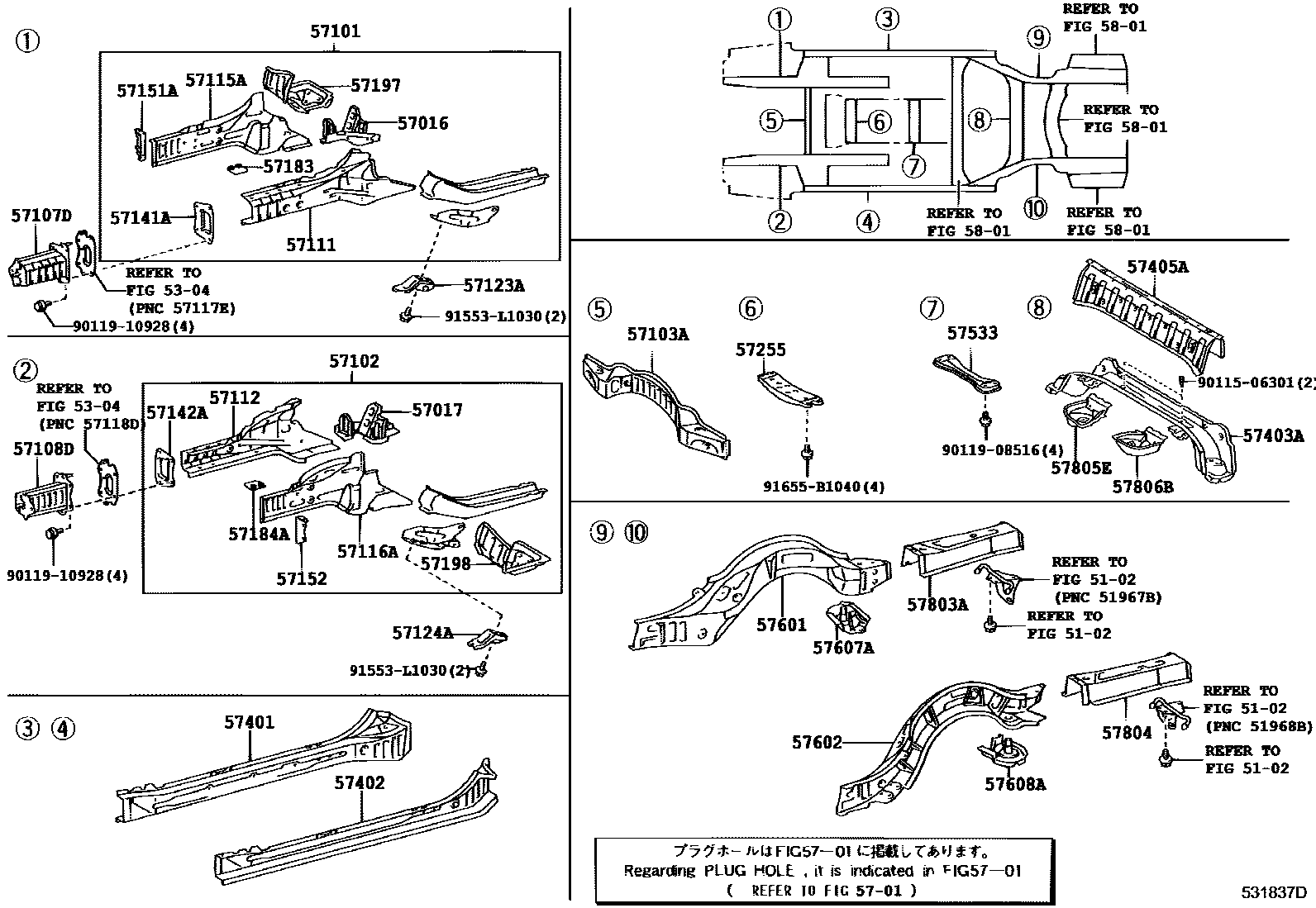

FLOOR SIDE MEMBER

5102

5304

5701

57016REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, RH

main57016-30040iGRS182200411-200802

57017REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, LH

main57017-30040iGRS182200411-200802

57101MEMBER SUB-ASSY, FRONT SIDE, RH

main57101-30162iGRS182200411-200503

sub57101-30163

main57101-30163iGRS182200503-200802

57102MEMBER SUB-ASSY, FRONT SIDE, LH

main57102-30141iGRS182200411-200503

sub57102-30143

main57102-30142iGRS182200503-200504

sub57102-30143

main57102-30143iGRS182200505-200802

57103ACROSSMENBER SUB-ASSY, FLOOR, NO.3

main57103-30020iGRS182200411-200412

sub57103-30021

main57103-30021iGRS182200412-200802

sub57103-30022

57107DREINFORCE SUB-ASSY, FRONT BUMPER MOUNTING, RH

main57107-30061iGRS182200411-200802

57108DREINFORCE SUB-ASSY, FRONT BUMPER MOUNTING, LH

main57108-30080iGRS182200411-200802

sub57108-30081

57111MEMBER, FRONT SIDE, RH

main57111-30082iGRS182200411-200802

57112MEMBER, FRONT SIDE, LH

main57112-30081iGRS182200411-200504

sub57112-30082

main57112-30082iGRS182200505-200802

57115APLATE, FRONT SIDE MEMBER, OUTER RH

main57115-30060iGRS182200411-200802

57116APLATE, FRONT SIDE MEMBER, OUTER LH

main57116-30030iGRS182200411-200802

57123AREINFORCEMENT, STRUT BAR BRACKET, RH

main57305-30010iGRS182200411-200802

57124AREINFORCEMENT, STRUT BAR BRACKET, LH

main57306-30010iGRS182200411-200802

57141ASUPPORT, FRONT BUMPER ARM, RH

main57141-30040iGRS182200411-200802

57142ASUPPORT, FRONT BUMPER ARM, LH

main57142-30040iGRS182200411-200802

57151AREINFORCEMENT, FRONT SIDE MEMBER, NO.1 RH

main57151-30040iGRS182200411-200802

57152REINFORCEMENT, FRONT SIDE MEMBER, NO.1 LH

main57152-30040iGRS182200411-200802

57183PLATE, FRONT SIDE MEMBER, NO.4 RH

main57183-30020iGRS182200411-200503

main57183-30030iGRS182200503-200802

57184APLATE, FRONT SIDE MEMBER, NO.4 LH

main57183-30020iGRS182200411-200503

main57184-30020iGRS182200503-200802

57197BOX, TORQUE, FRONT RH

main57197-30040iGRS182200411-200802

57198BOX, TORQUE, FRONT LH

main57198-30041iGRS182200411-200802

57255MEMBER, ENGINE REAR MOUNTING

main57255-30080iGRS182200411-200802

57401MEMBER SUB-ASSY, MAIN FLOOR SIDE, RH

main57401-30101iGRS182200411-200802

57402MEMBER SUB-ASSY, MAIN FLOOR SIDE, LH

main57402-30091iGRS182200411-200802

57403AMEMBER SUB-ASSY, CENTER FLOOR CROSS, NO.3

main57430-30011iGRS182200411-200802

57405AMEMBER SUB-ASSY, CENTER FLOOR CROSS, NO.2

main57405-30041iGRS182200411-200504

sub57405-30050

main57405-30050iGRS182200505-200802

57533BRACE, FRONT FLOOR, CENTER

main57533-30030iGRS182200411-200802

57601MEMBER SUB-ASSY, REAR FLOOR SIDE, RH

main57601-30917iGRS182200411-200802

sub57601-30922

57602MEMBER SUB-ASSY, REAR FLOOR SIDE, LH

main57602-30928iGRS182200411-200802

sub57602-30934

57607AMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.3

main57607-30070iGRS182200411-200506

sub57607-53020

main57607-53020iGRS182200507-200802

57608AMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.4

main57608-30080iGRS182200411-200506

sub57608-53030

main57608-53030iGRS182200507-200802

57803AREINFORCEMENT SUB-ASSY, REAR FLOOR SIDE MEMBER, REAR RH

main57803-30021iGRS182200411-200802

57804REINFORCEMENT SUB-ASSY, REAR FLOOR SIDE MEMBER, REAR LH

main57804-30031iGRS182200411-200612

sub57804-30032

main57804-30032iGRS182200701-200802

57805EREINFORCEMENT SUB-ASSY, BELT ANCHOR, RH

main57805-30060iGRS182200411-200802

57806BREINFORCEMENT SUB-ASSY, BELT ANCHOR, LH

main57806-30050iGRS182200411-200802

5801

9011506301

main90115-06301

9011908516

main90119-08516

9011910928

main90119-10928

91553L1030

main91553-L1030

91655B1040

main91655-B1040

44 parts on this diagram · 1 diagram in section
