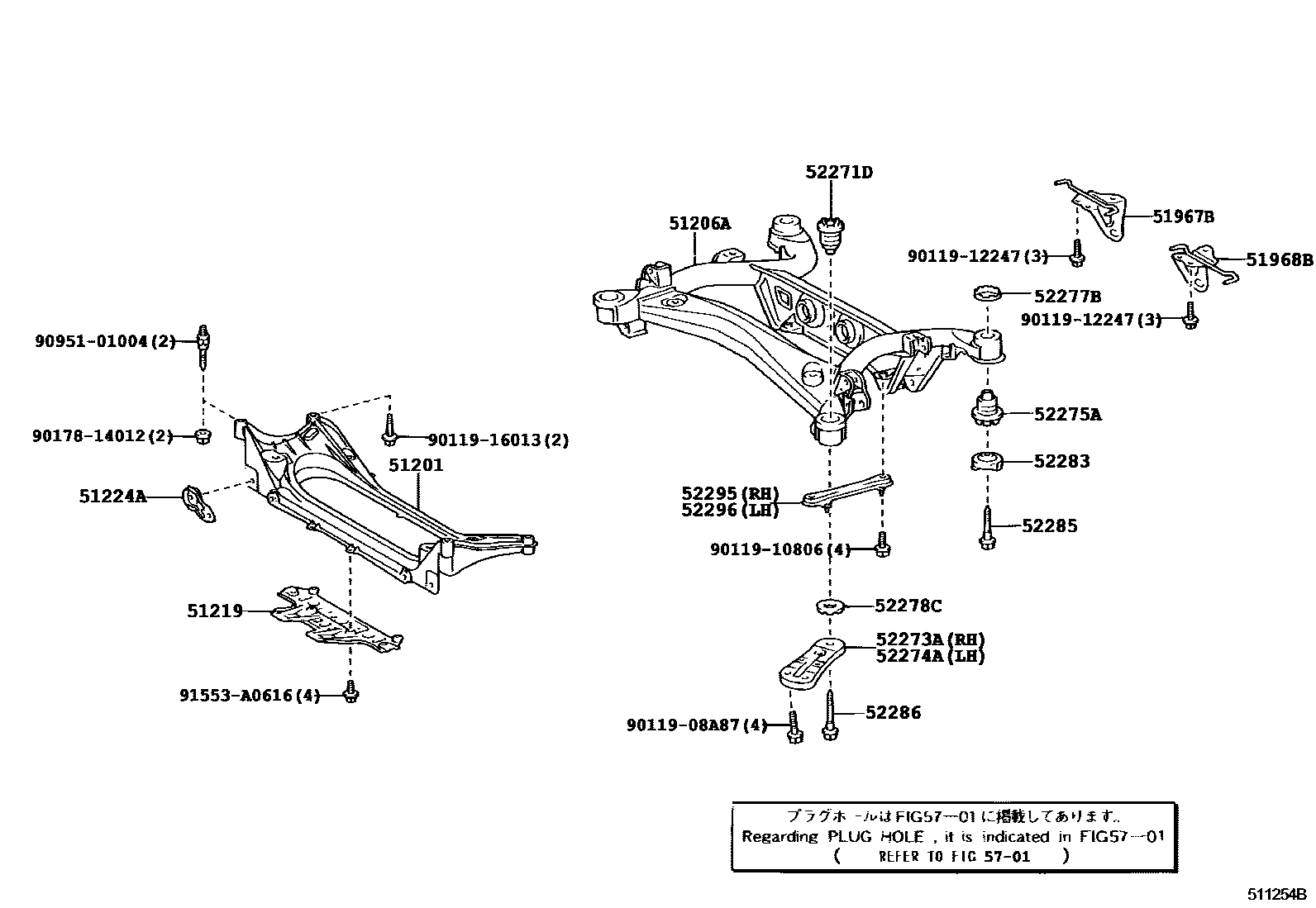

SUSPENSION CROSSMEMBER & UNDER COVER

51201CROSSMEMBER SUB-ASSY, FRONT SUSPENSION

main51201-30130i¥66,200200411-200802

sub51201-30140¥41,700

51206AMEMBER SUB-ASSY, REAR SUSPENSION

main51206-30080i¥85,800200411-200802

sub51206-30081¥85,600

51219PROTECTOR, FRONT SUSPENSION MEMBER, LWR

main51219-30030i¥5,500200411-200504

sub51219-30031¥4,630

main51219-30031i¥4,630200505-200802

51224APLATE, FRONT SUSPENSION MENBER BRACE

main51224-30030i¥1,760200411-200802

51967BHOOK, TRANSPORT, REAR RH

main51967-30050i¥3,180200411-200802

51968BHOOK, TRANSPORT, REAR LH

main51968-30060i¥3,180200411-200802

52271DCUSHION, REAR SUSPENSION MEMBER BODY MOUNTING, FRONT

main52271-30100i¥3,350200411-200708

sub52271-30120¥2,790

main52271-30120i¥2,790200709-200802

52273ASTOPPER, REAR SUSPENSION MEMBER, LOWER RH

main52273-30080i¥1,520200411-200802

52274ASTOPPER, REAR SUSPENSION MEMBER, LOWER LH

main52273-30080i¥1,520200411-200802

52275ACUSHION, REAR SUSPENSION MEMBER BODY MOUNTING, REAR

main52275-30110i¥4,930200411-200802

52277BSTOPPER, REAR SUSPENSION MEMBER, REAR UPPER

main52277-30060i¥840200411-200802

sub52277-30070¥840

52278CSTOPPER, REAR SUSPENSION MEMBER, REAR LOWER

main52278-30050i¥570200411-200802

sub52278-30080¥570

52283STOPPER, DIFFERENTIAL SUPPORT MEMBER, LOWER

main52283-30060i¥1,190200411-200802

52285BOLT, DIFFERENTIAL SUPPORT MEMBER MOUNTING, NO.1

main52285-30021i¥1,360200411-200802

52286BOLT, DIFFERENTIAL SUPPORT MEMBER MOUNTING, NO.2

main52286-30010i¥2,760200411-200508

main52286-53020i¥2,680200509-200802

52295BRACE, REAR SUSPENSION MEMBER, RH

main52295-30030i¥2,040200411-200802

52296BRACE, REAR SUSPENSION MEMBER, LH

main52295-30030i¥2,040200411-200802

5701

9011908A87

main90119-08A87¥100

9011910806

main90119-10806¥810

9011912247

main90119-12247¥260

9011916013

main90119-16013¥870

9017814012

main90178-14012¥210

9095101004

main90951-01004¥590

91553A0616

main91553-A0616¥60

25 parts on this diagram · 4 diagrams in section
