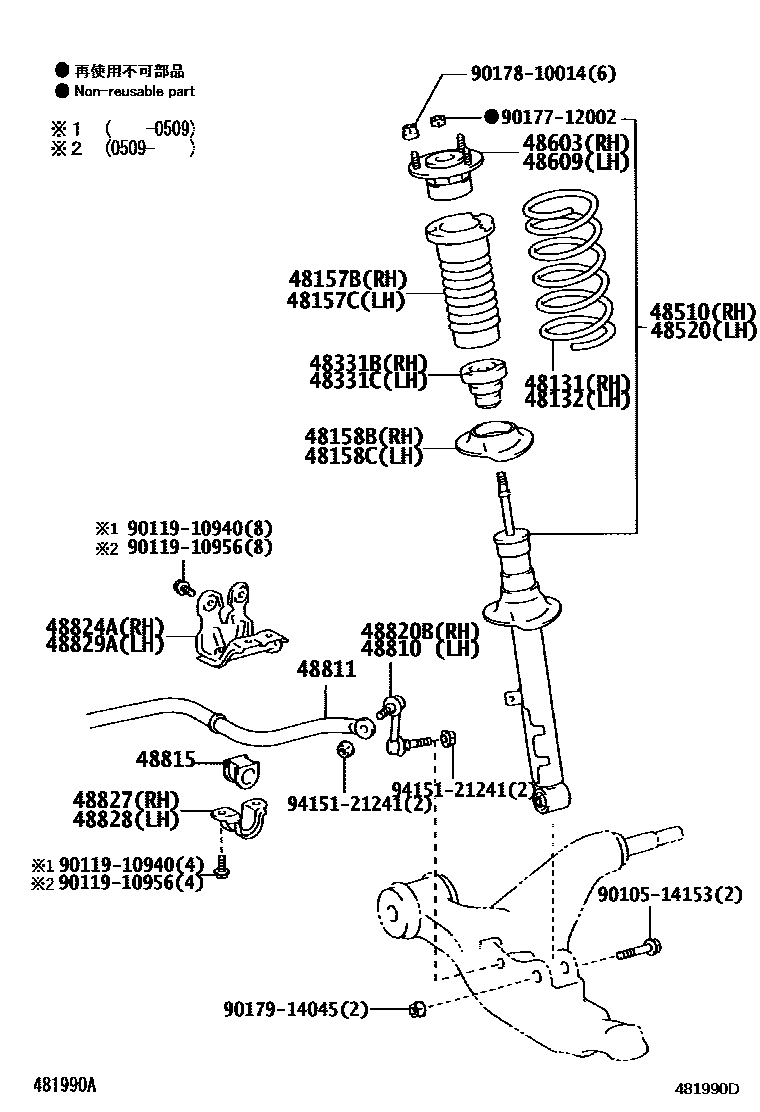

FRONT SPRING & SHOCK ABSORBER
48131SPRING, FRONT COIL, RH
48132SPRING, FRONT COIL, LH
48157BINSULATOR, FRONT COIL SPRING, UPPER RH
48157CINSULATOR, FRONT COIL SPRING, UPPER LH
48158BINSULATOR, FRONT COIL SPRING, LOWER RH
48158CINSULATOR, FRONT COIL SPRING, LOWER LH
48331BBUMPER, FRONT SPRING, RH
48331CBUMPER, FRONT SPRING, LH
48510ABSORBER ASSY, SHOCK, FRONT RH
MARK 48510-30551
48520ABSORBER ASSY, SHOCK, FRONT LH
MARK 48520-30091
48603SUPPORT SUB-ASSY, FRONT SUSPENSION, RH
sub48609-30061
48609SUPPORT SUB-ASSY, FRONT SUSPENSION, LH
sub48609-30061
48810LINK ASSY, FRONT STABILIZER, LH
48811BAR, STABILIZER, FRONT
48820BLINK ASSY, FRONT STABILIZER, RH
48824ABRACKET, FRONT STABILIZER, NO.1 RH
48827BRACKET, FRONT STABILIZER, NO.2 RH
48828BRACKET, FRONT STABILIZER, NO.2 LH
48829ABRACKET, FRONT STABILIZER, NO.1 LH
9010514153
main90105-14153
9011910940
main90119-10940
9011910956
main90119-10956
9017712002
main90177-12002
9017810014
main90178-10014
9017914045
main90179-14045
9415121241
main94151-21241
27 parts on this diagram · 1 diagram in section
