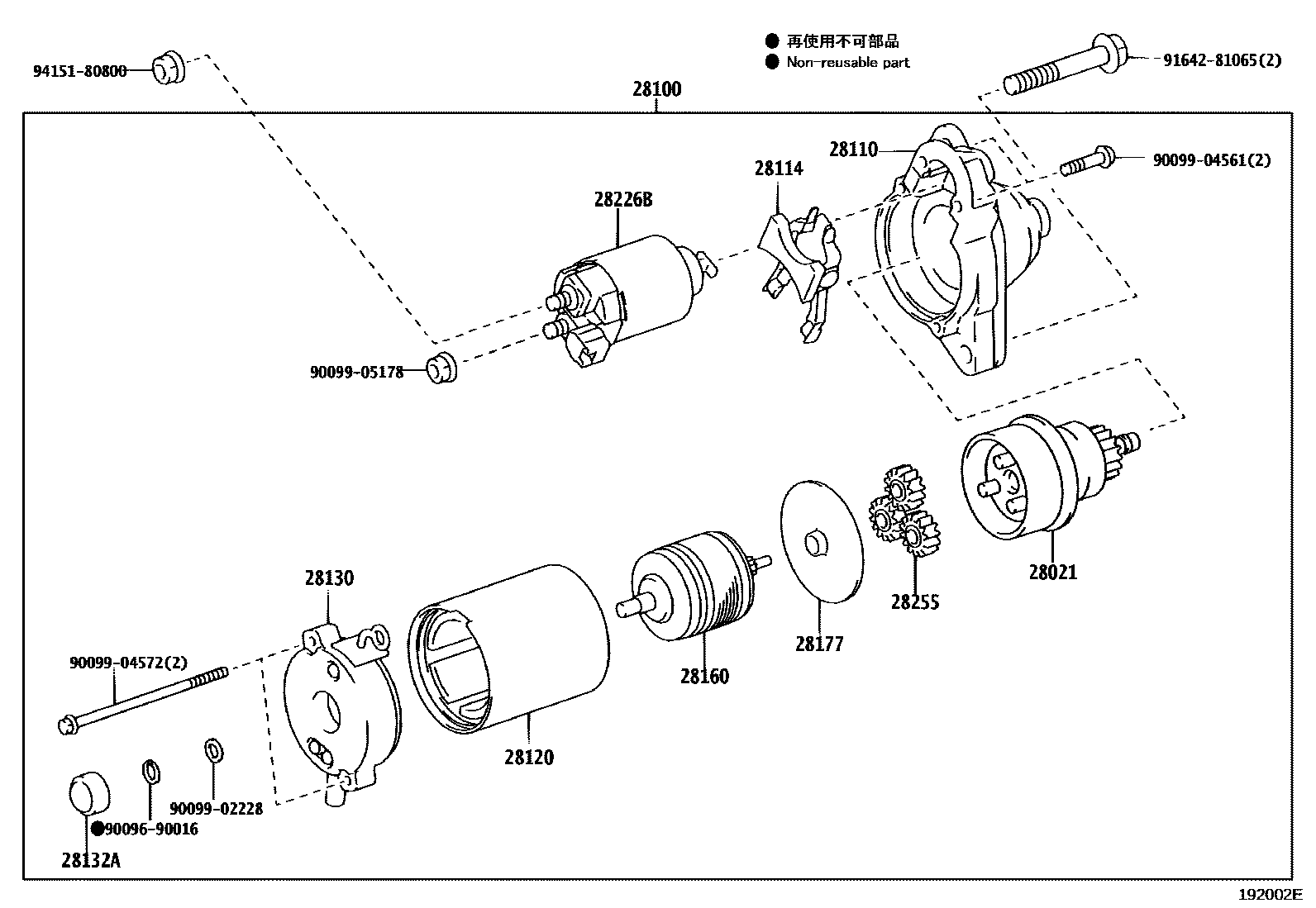

STARTER

28021CLUTCH SUB-ASSY, STARTER CENTER BEARING

main28021-21060i3GRFE..GRS182200411-200802

28100STARTER ASSY

main28100-31060i3GRFE..GRS182200411-200509

12V 1.3KW

sub28100-31061

main28100-31080i3GRFE..GRS182200509-200802

12V 1.3KW

sub28100-31081

28110HOUSING ASSY, STARTER DRIVE

main28110-31040i3GRFE..GRS182200411-200802

28114PIN, STARTER DRIVE LEVER SET

main28114-21060i3GRFE..GRS182200411-200802

28120YOKE ASSY, STARTER

main28120-28050i3GRFE..GRS182200411-200802

sub28120-28080

28130FRAME ASSY, STARTER COMMUTATOR END

main28130-31040i3GRFE..GRS182200509-200802

main28130-31060i3GRFE..GRS182200411-200509

28132ACOVER, STARTER COMMUTATOR END FRAME

main28132-28040i3GRFE..GRS182200411-200802

28160ARMATURE ASSY, STARTER

main28160-21060i3GRFE..GRS182200411-200802

28177PLATE(FOR STARTER ARMATURE)

main28177-28040i3GRFE..GRS182200411-200802

28226BSTARTER KIT, REPAIR SERVICE

main28226-22061i3GRFE..GRS182200411-200802

28255GEAR, PLANET

main28255-28040i3GRFE..GRS182200411-200802

9009690016

main90096-90016

9009902228

main90099-02228

9009904561

main90099-04561

9009904572

main90099-04572

9009905178

main90099-05178

9164281065

main91642-81065

9415180800

main94151-80800

18 parts on this diagram · 1 diagram in section
