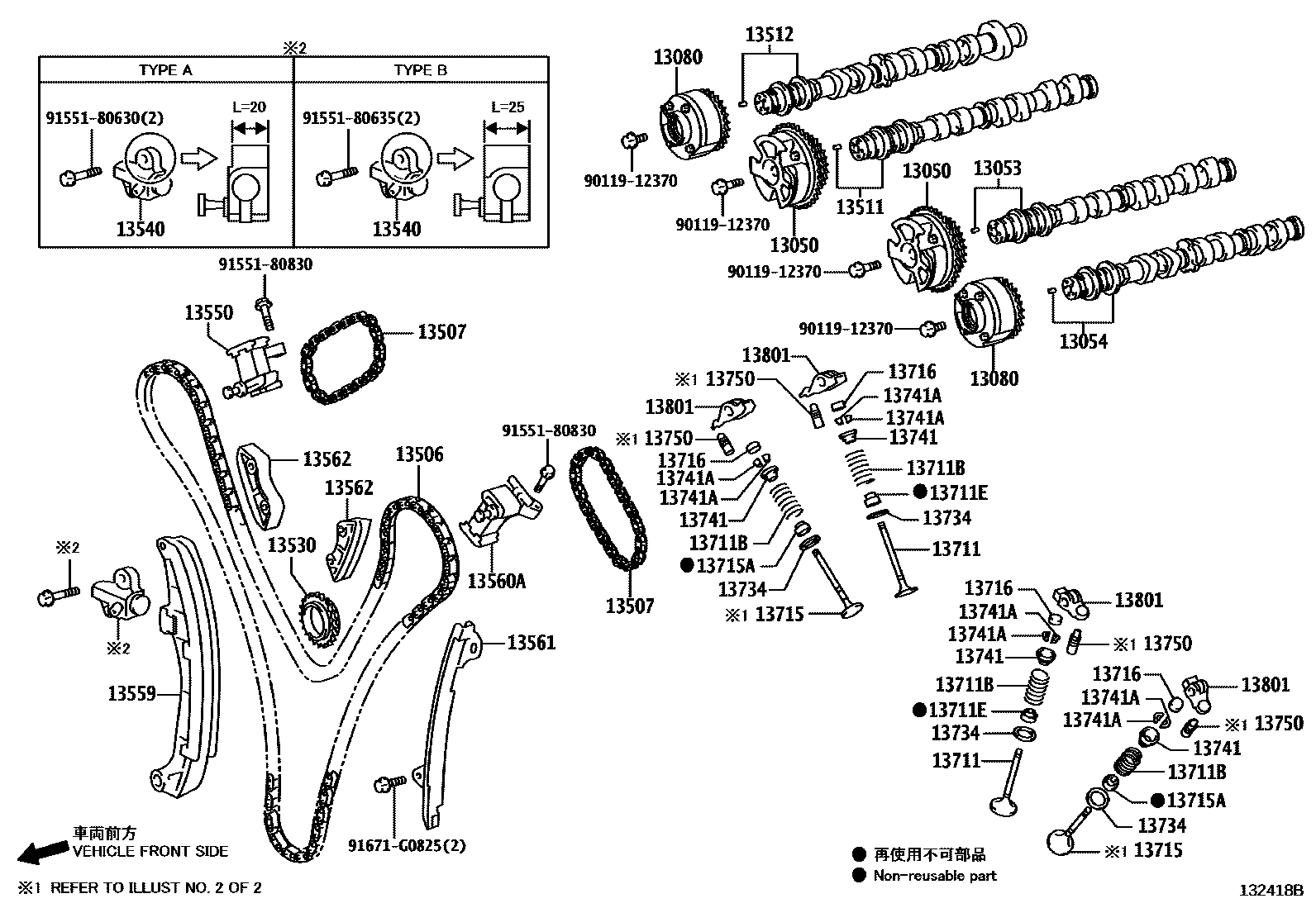

CAMSHAFT & VALVE
13053CAMSHAFT SUB-ASSY, NO.3
sub13053-31041
13054CAMSHAFT SUB-ASSY, NO.4
13506CHAIN SUB-ASSY
sub13506-31031
13507CHAIN SUB-ASSY, NO.2
13511CAMSHAFT
sub13501-31071
13512CAMSHAFT, NO.2
sub13502-31031
13550TENSIONER ASSY, CHAIN, NO.2
13559SLIPPER, CHAIN TENSIONER
13560ATENSIONER ASSY, CHAIN, NO.3
13562DAMPER, CHAIN VIBRATION, NO.2
13711VALVE, INTAKE
13711BSPRING, COMPRESSION(FOR INNER)
13711ESEAL, INTAKE VALVE STEM OIL
13715VALVE, EXHAUST
sub13715-31130
13715ASEAL, EXHAUST VALVE STEM OIL
13716CAP, VALVE STEM
13734SEAT, VALVE SPRING
13741ALOCK, VALVE SPRING RETAINER
13750ADJUSTER ASSY, VALVE LASH
REFER TO ILLUST.
13801ARM SUB-ASSY, VALVE ROCKER, NO.1
9011912370
main90119-12370
9155180630
main91551-80630
9155180635
main91551-80635
9155180830
main91551-80830
91671G0825
main91671-G0825
31 parts on this diagram · 2 diagrams in section
