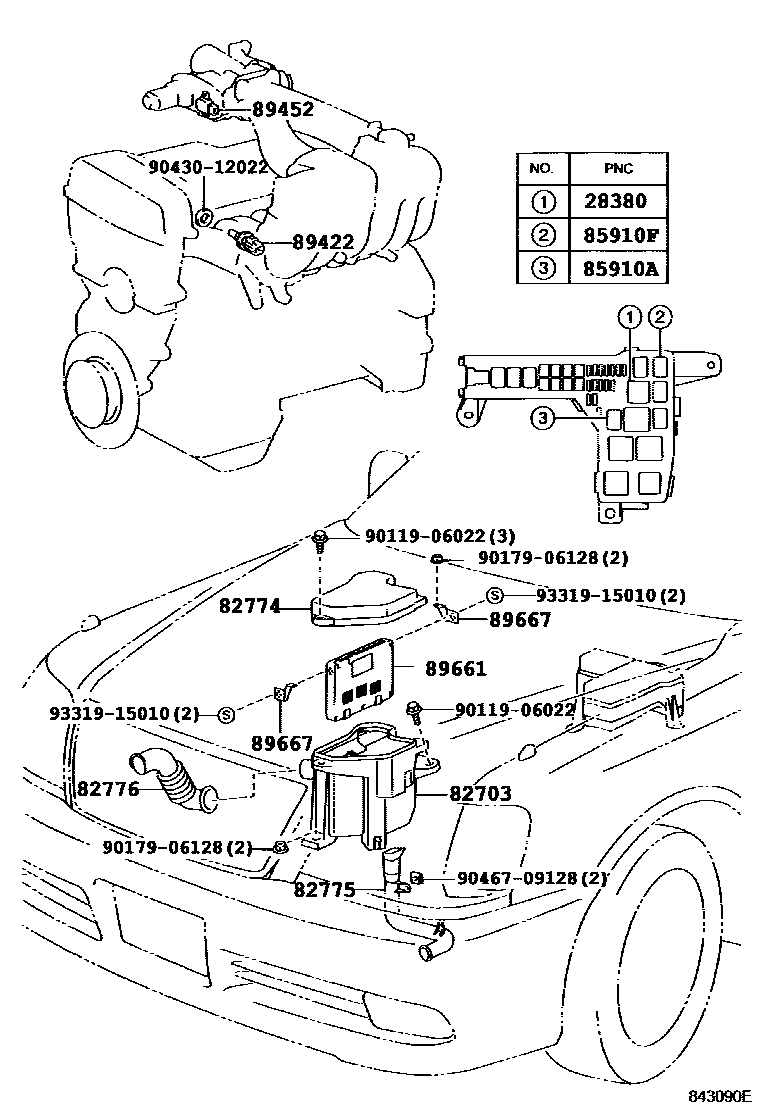

ELECTRONIC FUEL INJECTION SYSTEM
28380RELAY ASSY, FUEL PUMP
82703BOX SUB-ASSY, ENGINE ROOM ECU
82774COVER, ENGINE ROOM ECU
82775DUCT, ENGINE ROOM ECU INLET
82776DUCT, ENGINE ROOM ECU OUTLET
85910ARELAY ASSY, CIRCUIT OPENING (FOR EFI)
85910FRELAY, COMPUTER (FOR EFI)
89422SENSOR, WATER TEMPERATURE (FOR E.F.I.)
89452SENSOR, THROTTLE POSITION (FOR E.F.I.)
89661COMPUTER, ENGINE CONTROL
HONG KONG SPEC
HONG KONG SPEC
89667BRACKET, ENGINE CONTROL COMPUTER
9011906022
main90119-06022
9017906128
main90179-06128
9043012022
main90430-12022
9046709128
main90467-09128
9331915010
main93319-15010
16 parts on this diagram · 1 diagram in section
