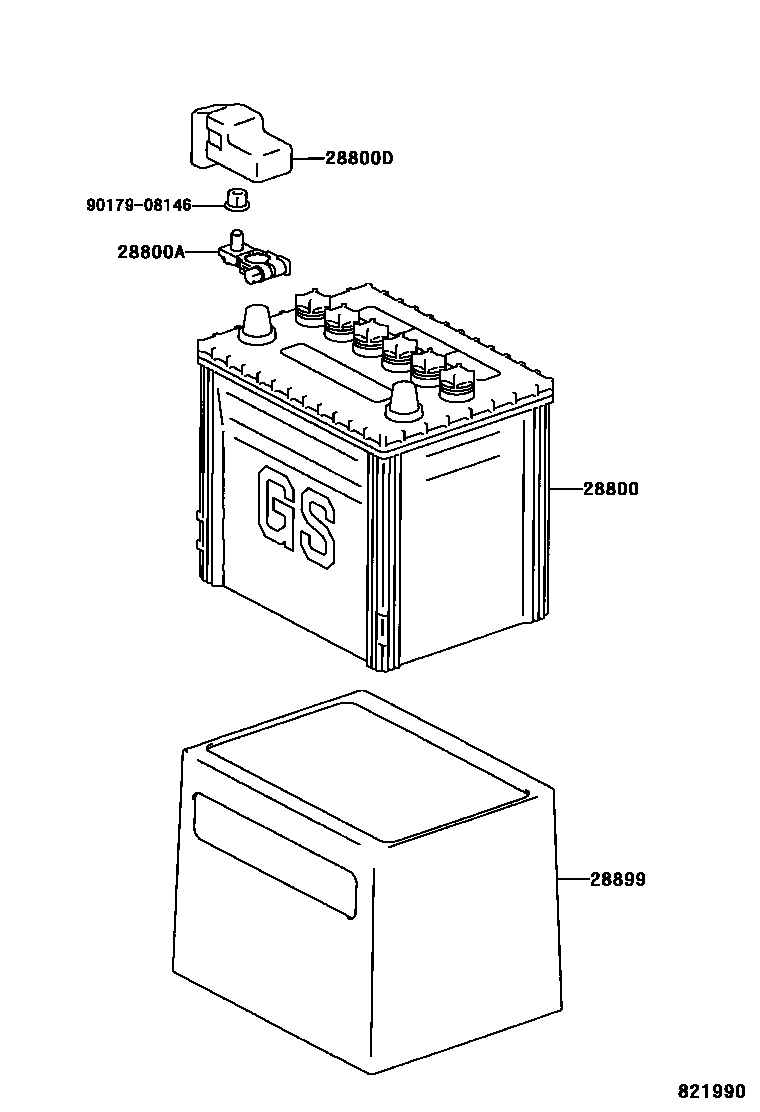

BATTERY & BATTERY CABLE

28800BATTERY

main28800-15012i2JZGE..JZS175199909-200003

55D23R,NIPPONDENSO JAPAN

sub28800-15013

sub28800-15020

main28800-15020i2JZGE..JZS175200003-200108

55D23R,YUASA

sub28800-15022

main28800-15022i2JZGE..JZS175200108-200312

55D23R

sub28800-15021

main28800-46160i2JZGE..JZS175199909-200312

55D23R,FURUKAWA

sub28800-15021

28800ATERMINAL, BATTERY POSITIVE

main90982-05053i2JZGE..JZS175200103-200312

main90982-05054i2JZGE..JZS175199909-200103

28800DCOVER, CONNECTOR(FOR BATTERY TERMINAL)

main82821-24010i2JZGE..JZS175199909-200312

28899INSULATOR, BATTERY

main28899-76010i2JZGE..JZS175199909-200312

9017908146

main90179-08146

5 parts on this diagram · 1 diagram in section
