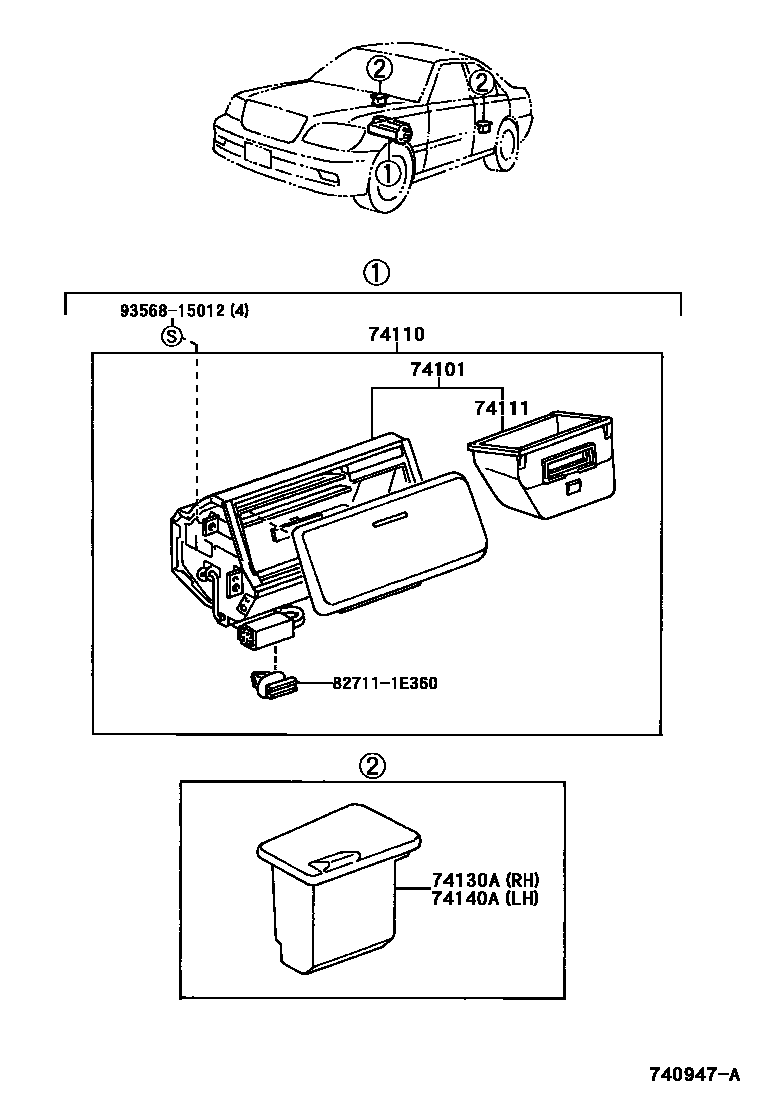

ASH RECEPTACLE

74101RECEPTACLE SUB-ASSY, FRONT ASH

main74101-30120iJZS175199909-200108

74110RECEPTACLE ASSY, INSTRUMENT PANEL ASH

main74110-30280-A0iJZS175199909-200108

IVORY,TRIM0#

main74110-30280-B0iJZS175199909-200108

MEDIUM CHARCOAL,TRIM1#

main74110-30320-A0iJZS175200108-200312

IVORY,TRIM0#

main74110-30320-B0iJZS175200108-200312

MEDIUM CHARCOAL,TRIM1#

74111BOX, FRONT ASH RECEPTACLE

main74111-30170iJZS175199909-200108

74130ARECEPTACLE ASSY, REAR ASH, RH

main74130-30300-A0iJZS175199909-200108

IVORY,TRIM0#

main74130-30300-B0iJZS175200108-200312

MEDIUM CHARCOAL,TRIM1#

74140ARECEPTACLE ASSY, REAR ASH, LH

main74140-30160-A0iJZS175199909-200108

IVORY,TRIM0#

main74140-30160-B0iJZS175200108-200312

MEDIUM CHARCOAL,TRIM1#

827111E360WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-1E360

9356815012

main93568-15012

7 parts on this diagram · 1 diagram in section
