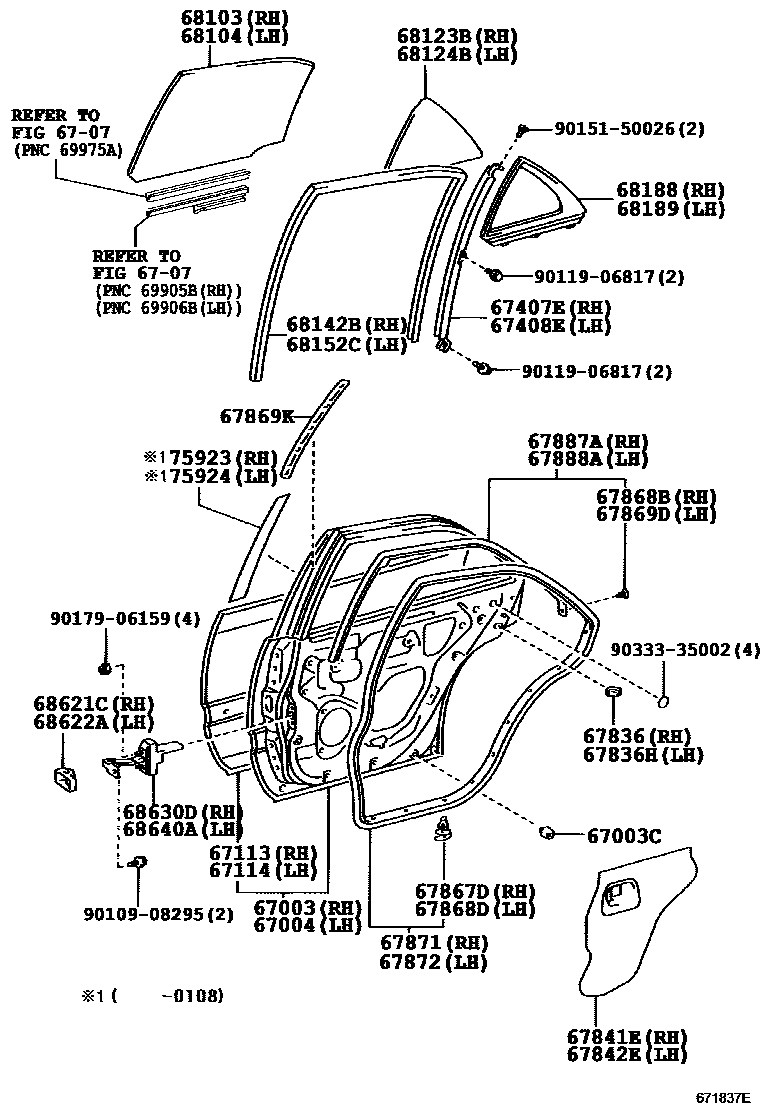

REAR DOOR PANEL & GLASS
67003PANEL SUB-ASSY, REAR DOOR, RH
67003CCUSHION, REAR DOOR PANEL
67004PANEL SUB-ASSY, REAR DOOR, LH
6707
67113PANEL, REAR DOOR, OUTER RH
67114PANEL, REAR DOOR, OUTER LH
67407EBAR SUB-ASSY, REAR DOOR WINDOW DIVISION, RH
67408EBAR SUB-ASSY, REAR DOOR WINDOW DIVISION, LH
67836COVER, REAR DOOR LOCK CHILD PROTECTION, RH
67836HCOVER, REAR DOOR LOCK CHILD PROTECTION, LH
67841ECOVER, REAR DOOR SERVICE HOLE, RH
67842ECOVER, REAR DOOR SERVICE HOLE, LH
67867DRETAINER, REAR DOOR WEATHERSTRIP, RH
YELLOW
PINK OR BLUE
67868BCLIP, DOOR GLASS WEATHERSTRIP(FOR REAR DOOR)
BLACK,TRIM0#,1#
67868DRETAINER, REAR DOOR WEATHERSTRIP, LH
YELLOW
GREEN OR NATURAL
67869DCLIP, DOOR WEATHERSTRIP
BLACK,TRIM0#,1#
67869KCLIP, DOOR WEATHERSTRIP, LH
67871WEATHERSTRIP, REAR DOOR, RH
67872WEATHERSTRIP, REAR DOOR, LH
67887AWEATHERSTRIP, REAR DOOR, NO.2 RH
67888AWEATHERSTRIP, REAR DOOR, NO.2 LH
68103GLASS SUB-ASSY, REAR DOOR, RH
*UVCT,T=4.0,GREEN
68104GLASS SUB-ASSY, REAR DOOR, LH
*UVCT,T=4.0,GREEN
68123BGLASS, REAR DOOR QUARTER WINDOW, RH
*UVCT,T=4.0,GREEN
68124BGLASS, REAR DOOR QUARTER WINDOW, LH
*UVCT,T=4.0,GREEN
68142BRUN, REAR DOOR WINDOW, RH
68152CRUN, REAR DOOR GLASS, LH
68188WEATHERSTRIP, REAR DOOR QUARTER WINDOW, RH
68189WEATHERSTRIP, REAR DOOR QUARTER WINDOW, LH
68621CCOVER, REAR DOOR CHECK, RH
68622ACOVER, REAR DOOR CHECK, LH
68630DCHECK ASSY, REAR DOOR, RH
68640ACHECK ASSY, REAR DOOR, LH
9010908295
main90109-08295
9011906817
main90119-06817
9015150026
main90151-50026
9017906159
main90179-06159
9033335002
main90333-35002
40 parts on this diagram · 3 diagrams in section
