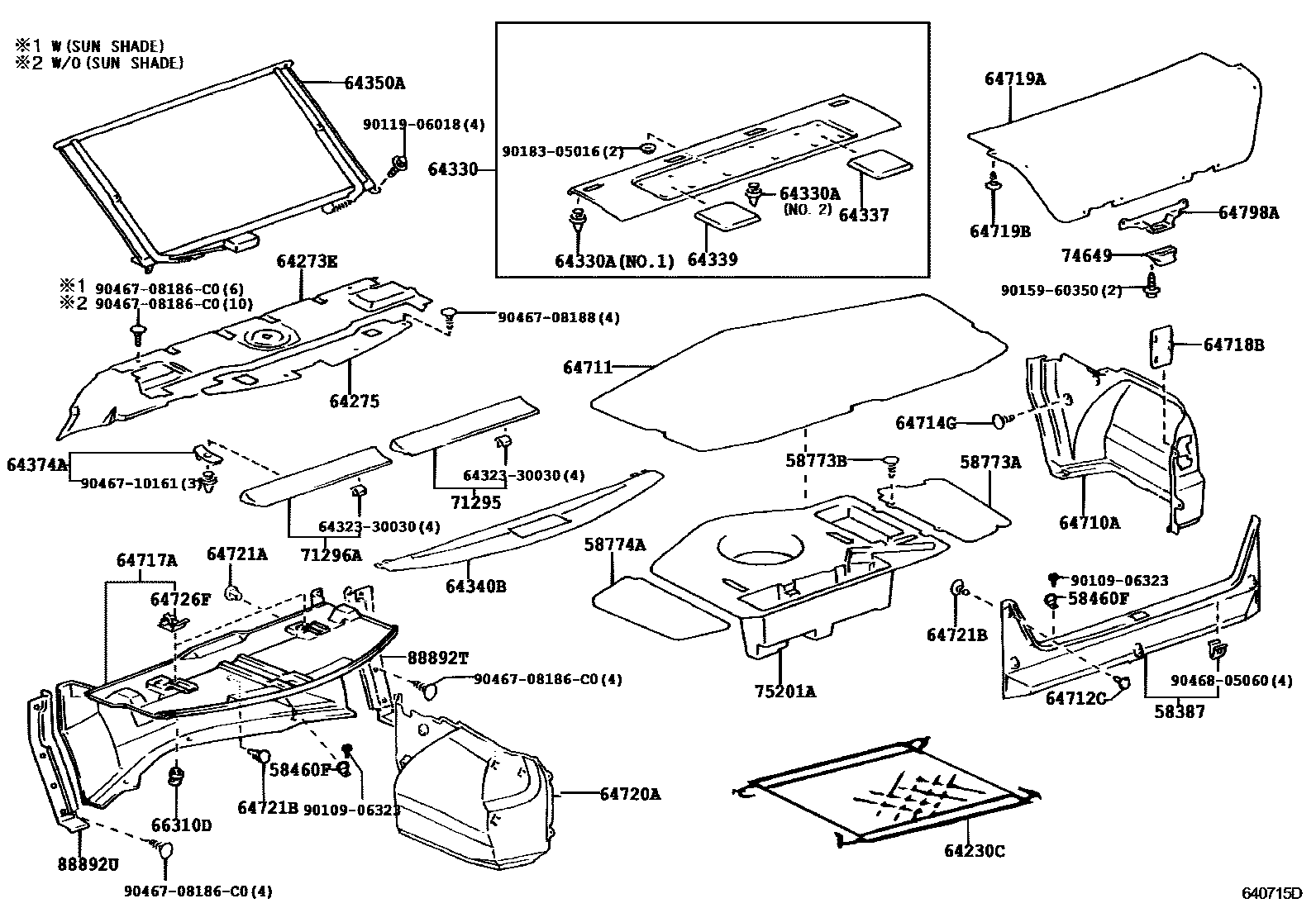

PACKAGE TRAY PANEL & LUGGAGE COMPARTMENT MAT
58387PLATE, REAR FLOOR FINISH
BLACK,TRIM0#,1#
58460FSTRIKER ASSY, LUGGAGE HOLD BELT
58773ACOVER, LUGGAGE COMPARTMENT SIDE, RH
58773BCLIP(FOR LUGGAGE COMPARTMENT SIDE COVER)
BLACK,TRIM0#,1#
58774ACOVER, LUGGAGE COMPARTMENT SIDE, LH
64230CNET ASSY, ROOM PARTITION
64273EPAD, ROOM PARTITION
W(SUN SHADE)
64275PAD, ROOM PARTITION TRIM, NO.2
64330PANEL ASSY, PACKAGE TRAY TRIM
W(6:4 SPRIT REAR SEAT & AIR PURIFIRE & SUN SHADE),DARK CHARCOAL,TRIM1#
W(6:4 SPRIT REAR SEAT & AIR PURIFIRE & SUN SHADE),SANDALWOOD,TRIM0#
W(6:4 SPRIT REAR SEAT & SUN SHADE),DARK CHARCOAL,TRIM1#
W(6:4 SPRIT REAR SEAT & SUN SHADE),SANDALWOOD,TRIM0#
DARK CHARCOAL,TRIM1#
SANDALWOOD,TRIM0#
W(AIR PURIFIRE),DARK CHARCOAL,TRIM1#
W(AIR PURIFIRE),SANDALWOOD,TRIM0#
W(AIR PURIFIRE & SUN SHADE),DARK CHARCOAL,TRIM1#
W(AIR PURIFIRE & SUN SHADE),SANDALWOOD,TRIM0#
W(SUN SHADE),DARK CHARCOAL,TRIM1#
W(SUN SHADE),SANDALWOOD,TRIM0#
64330ACLIP(FOR PACKAGE TRAY TRIM PANEL)
NO.1
NO.2
64337GARNISH, PACKAGE TRAY TRIM, RH
DK.CHARCOAL,TRIM1#
SANDAL WOOD,TRIM0#
64339GARNISH, PACKAGE TRAY TRIM, LH
DK.CHARCOAL,TRIM1#
SANDAL WOOD,TRIM0#
64340BPANEL ASSY, PACKAGE TRAY TRIM, NO.2
DARK CHARCOAL,TRIM1#
SANDALWOOD,TRIM0#
64350ASHADE ASSY, REAR WINDOW
64374ASUPPORT, PACKAGE TRAY TRIM
64710ACOVER ASSY, LUGGAGE COMPARTMENT TRIM, RH
BLACK,TRIM0#,1#
BLACK,TRIM0#,1#
W(REAR AIR CONDITIONER),BLACK,TRIM0#,1#
BLACK,TRIM0#,1#
64711MAT, LUGGAGE COMPARTMENT FLOOR
BLACK,TRIM0#,1#
BLACK,TRIM0#,1#
64712CCLIP(FOR LUGGAGE COMPARTMENT TRIM COVER)
64714GCLIP(FOR LUGGAGE COMPARTMENT TRIM SIDE COVER)
BLACK,TRIM0#,1#
64717ACOVER, LUGGAGE COMPARTMENT TRIM, FRONT
BLACK,TRIM0#,1#
W(AIR PURIFIER OR REAR AIR CONDITIONER),BLACK,TRIM0#,1#
W(AIR PURIFIER OR REAR AIR CONDITIONER),BLACK,TRIM0#,1#
W(AIR PURIFIER OR REAR AIR CONDITIONER),BLACK,TRIM0#,1#
64718BCOVER, LUGGAGE TRIM SERVICE HOLE
BLACK,TRIM0#,1#
64719ACOVER, LUGGAGE COMPARTMENT DOOR
BLACK,TRIM0#,1#
BLACK,TRIM0#,1#
64719BCLIP(FOR LUGGAGE COMPARTMENT DOOR)
BLACK,TRIM0#,1#
64720ACOVER ASSY, LUGGAGE COMPARTMENT TRIM, LH
BLACK,TRIM0#,1#
BLACK,TRIM0#,1#
W(REAR AIR CONDITIONER),BLACK,TRIM0#,1#
BLACK,TRIM0#,1#
64721ACLIP(FOR LUGGAGE COMPARTMENT TRIM INNER COVER)
64721BCOVER, LUGGAGE COMPARTMENT TRIM, NO.1
BLACK,TRIM0#,1#
64726FHOOK, LUGGAGE COMPARTMENT TRIM, NO.2
BLACK,TRIM0#,1#
64798ACOVER, LUGGAGE COMPARTMENT DOOR LOCK
BLACK,TRIM0#,1#
66310DHOOK ASSY, ROPE
71295PLATE, REAR SEATBACK, UPPER RH
DARK CHARCOAL,TRIM1#
SANDALWOOD,TRIM0#
71296APLATE, REAR SEATBACK, UPPER LH
DARK CHARCOAL,TRIM1#
SANDALWOOD,TRIM0#
74649GRIP, LUGGAGE COMPARTMENT DOOR ASSIST
88892TCOVER, COOLER, NO.2, RH
88892UCOVER, COOLER, NO.2, LH
6432330030CLAMP, PACKAGE TRAY TRIM, NO.1
main64323-30030
9010906323
main90109-06323
9011906018
main90119-06018
9015960350
main90159-60350
9018305016
main90183-05016
9046708186C0
main90467-08186C0
9046708188
main90467-08188
9046710161
main90467-10161
9046805060
main90468-05060
44 parts on this diagram · 1 diagram in section
