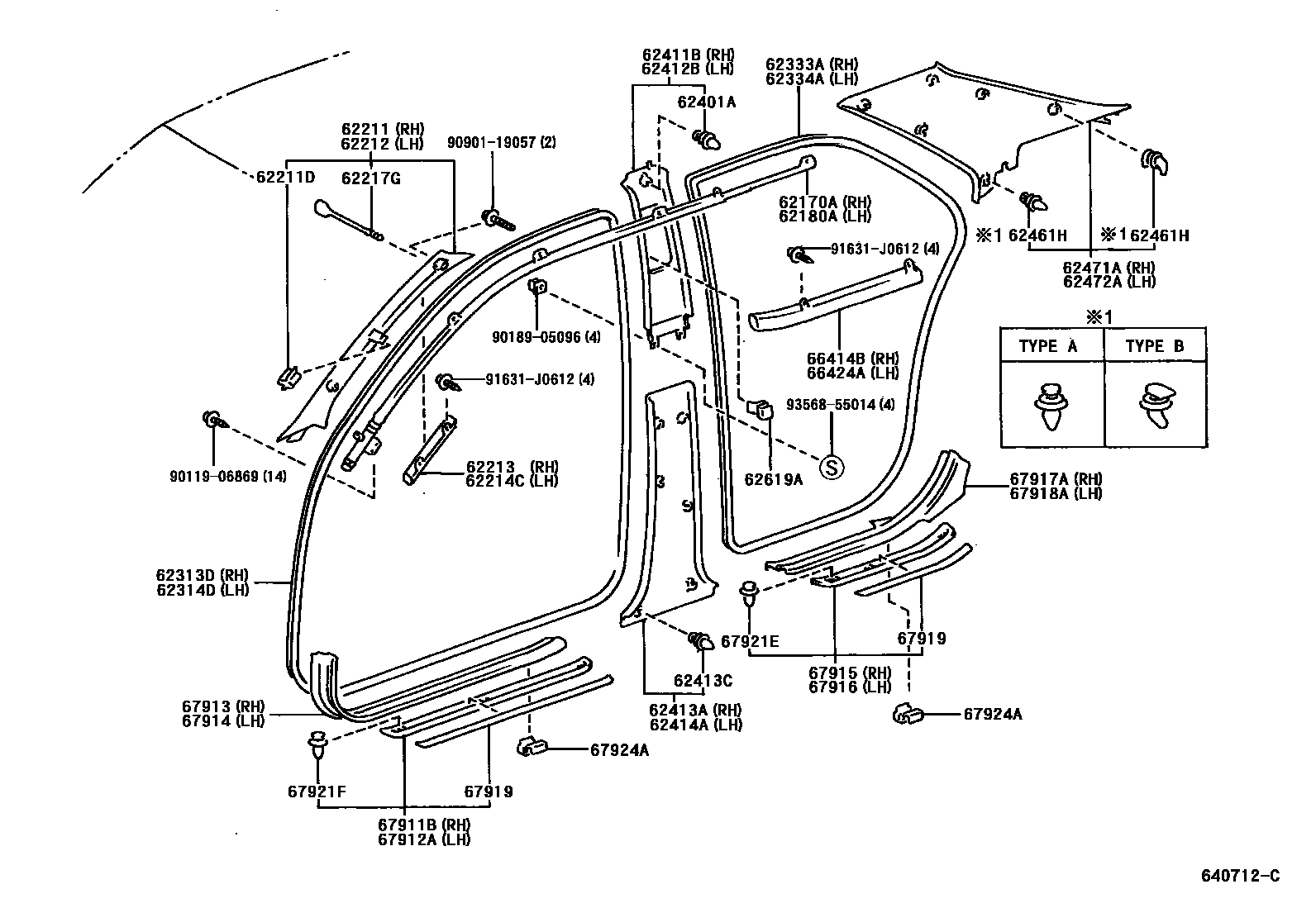

INSIDE TRIM BOARD & DOOR OPENING TRIM MOULDING

62170AAIRBAG ASSY, CURTAIN SHIELD, RH

main62170-30030iJZS175199909-200312

62180AAIRBAG ASSY, CURTAIN SHIELD, LH

main62180-30030iJZS175199909-200312

62211GARNISH, FRONT PILLAR, RH

main62211-30360-A0iJZS175199909-200312

W(*80,CURTAIN SIELD),IVORY,TRIM0#

sub62211-30360

main62211-30360-B0iJZS175199909-200312

W(*80,CURTAIN SIELD),MEDIUM CHACOAL,TRIM1#

sub62211-30360

main62211-30370-A0iJZS175199909-200312

IVORY,TRIM0#

main62211-30370-B0iJZS175199909-200312

MEDIUM CHACOAL,TRIM1#

62211DCLIP(FOR FRONT BODY PILLAR GARNISH)

main90467-09204iJZS175199909-200312

W(*80,CURTAIN SIELD)

62212GARNISH, FRONT PILLAR, LH

main62212-30370-A0iJZS175199909-200312

W(*80,CURTAIN SIELD),IVORY,TRIM0#

sub62212-30370

main62212-30370-B0iJZS175199909-200312

W(*80,CURTAIN SIELD),MEDIUM CHACOAL,TRIM1#

sub62212-30370

main62212-30380-A0iJZS175199909-200312

IVORY,TRIM0#

main62212-30380-B0iJZS175199909-200312

MEDIUM CHACOAL,TRIM1#

62213PAD, FRONT PILLAR GARNISH

main62213-30110iJZS175199909-200312

62214CPAD, FRONT PILLAR GARNISH, LH

main62214-30070iJZS175199909-200312

62217GCLIP, FRONT PILLAR GARNISH

main62217-30030iJZS175199909-200312

62313DTRIM, FRONT DOOR OPENING, RH

main62313-30230-A0iJZS175199909-200312

IVORY,TRIM0#

main62313-30230-B0iJZS175199909-200312

MEDIUM CHACOAL,TRIM1#

62314DTRIM, FRONT DOOR OPENING, LH

main62314-30150-A0iJZS175199909-200312

IVORY,TRIM0#

main62314-30150-B0iJZS175199909-200312

MEDIUM CHACOAL,TRIM1#

62333ATRIM, REAR DOOR OPENING, RH

main62333-30180-A0iJZS175199909-200312

IVORY,TRIM0#

main62333-30180-B0iJZS175199909-200312

MEDIUM CHACOAL,TRIM1#

62334ATRIM, REAR DOOR OPENING, LH

main62334-30120-A0iJZS175199909-200312

IVORY,TRIM0#

main62334-30120-B0iJZS175199909-200312

MEDIUM CHACOAL,TRIM1#

62401ACLIP (FOR CENTER PILLAR GARNISH PANEL, UPPER)

main90467-10167iJZS175199909-200312

62411BGARNISH, CENTER PILLAR, UPPER RH

main62411-30340-A0iJZS175199909-200312

IVORY,TRIM0#

main62411-30340-B0iJZS175199909-200312

MEDIUM CHACOAL,TRIM1#

main62411-30360-A0iJZS175199909-200312

W(*80,CURTAIN SIELD),IVORY,TRIM0#

main62411-30360-B0iJZS175199909-200312

W(*80,CURTAIN SIELD),MEDIUM CHACOAL,TRIM1#

62412BGARNISH, CENTER PILLAR, UPPER LH

main62412-30340-A0iJZS175199909-200312

IVORY,TRIM0#

main62412-30340-B0iJZS175199909-200312

MEDIUM CHACOAL,TRIM1#

main62412-30360-A0iJZS175199909-200312

W(*80,CURTAIN SIELD),IVORY,TRIM0#

main62412-30360-B0iJZS175199909-200312

W(*80,CURTAIN SIELD),MEDIUM CHACOAL,TRIM1#

62413AGARNISH, CENTER PILLAR, LOWER RH

main62413-30180-A0iJZS175199909-200312

IVORY,TRIM0#

sub62413-30180

main62413-30180-B1iJZS175199909-200312

MD.CHARCOAL,TRIM1#

sub62413-30180

62413CCLIP (FOR CENTER LOWER GARNISH)

main90467-10161iJZS175199909-200312

62414AGARNISH, CENTER PILLAR, LOWER LH

main62414-30110-A0iJZS175199909-200312

IVORY,TRIM0#

sub62414-30110

main62414-30110-B1iJZS175199909-200312

MD.CHARCOAL,TRIM1#

sub62414-30110

62461HCLIP (FOR ROOF SIDE INNER GARNISH)

main90467-09212iJZS175200108-200312

TYPE B:REFER ILLUST.

main90467-09212iJZS175199909-200108

TYPE B:REFER TO ILLUSTRATION

main90467-10161iJZS175200108-200312

TYPE A:REFER ILLUST.

main90467-10161iJZS175199909-200108

TYPE A:REFER TO ILLUSTRATION

62471AGARNISH, ROOF SIDE, INNER RH

main62471-30420-A0iJZS175199909-200312

IVORY,TRIM0#

main62471-30420-B0iJZS175199909-200312

MEDIUM CHACOAL,TRIM1#

62472AGARNISH, ROOF SIDE, INNER LH

main62472-30390-A0iJZS175199909-200312

IVORY,TRIM0#

main62472-30390-B0iJZS175199909-200312

MEDIUM CHACOAL,TRIM1#

62619APLATE, SIDE TRIM SET

main62619-30020iJZS175199909-200312

66414BSPACER, SIDE RAIL, REAR RH

main66414-30030iJZS175199909-200312

66424ASPACER, SIDE RAIL, REAR LH

main66424-30030iJZS175199909-200312

67911BPLATE, FRONT DOOR SCUFF, OUTSIDE, RH

main67911-30120iJZS175199909-200312

67912APLATE, FRONT DOOR SCUFF, OUTSIDE LH

main67912-30130iJZS175199909-200312

67913PLATE, FRONT DOOR SCUFF, RH

main67913-30230-A0iJZS175199909-200312

IVORY,TRIM0#

sub67913-30240

sub67913-30230

main67913-30230-B1iJZS175199909-200312

MD.CHARCOAL,TRIM1#

sub67913-30240

sub67913-30230

67914PLATE, FRONT DOOR SCUFF, LH

main67914-30230-A0iJZS175199909-200312

IVORY,TRIM0#

sub67914-30240

sub67914-30230

main67914-30230-B1iJZS175199909-200312

MD.CHARCOAL,TRIM1#

sub67914-30240

sub67914-30230

67915PLATE, REAR DOOR SCUFF, OUTSIDE RH

main67915-30110iJZS175199909-200312

67916PLATE, REAR DOOR SCUFF, OUTSIDE LH

main67916-30110iJZS175199909-200312

67917APLATE, REAR DOOR SCUFF, RH

main67917-30180-A0iJZS175199909-200312

IVORY,TRIM0#

sub67917-30180

main67917-30180-B1iJZS175199909-200312

MD.CHARCOAL,TRIM1#

sub67917-30180

67918APLATE, REAR DOOR SCUFF, LH

main67918-30160-A0iJZS175199909-200312

IVORY,TRIM0#

sub67918-30160

main67918-30160-B1iJZS175199909-200312

MD.CHARCOAL,TRIM1#

sub67918-30160

67919ORNAMENT, DOOR SCUFF

main67927-30040iJZS175199909-200312

FRONT RH

main67928-30040iJZS175199909-200312

FRONT LH

main67943-30040iJZS175199909-200312

REAR RH

main67944-30040iJZS175199909-200312

REAR LH

67921ERETAINER, REAR DOOR SCUFF PLATE

main67921-95500iJZS175199909-200312

67921FRETAINER, FRONT DOOR SCUFF PLATE

main67921-95500iJZS175199909-200312

67924ACLAMP, DOOR SCUFF PLATE, NO.2

main67924-30060iJZS175199909-200312

9011906869

main90119-06869

9018905096

main90189-05096

9090119057

main90901-19057

91631J0612

main91631-J0612

9356855014

main93568-55014

41 parts on this diagram · 1 diagram in section
