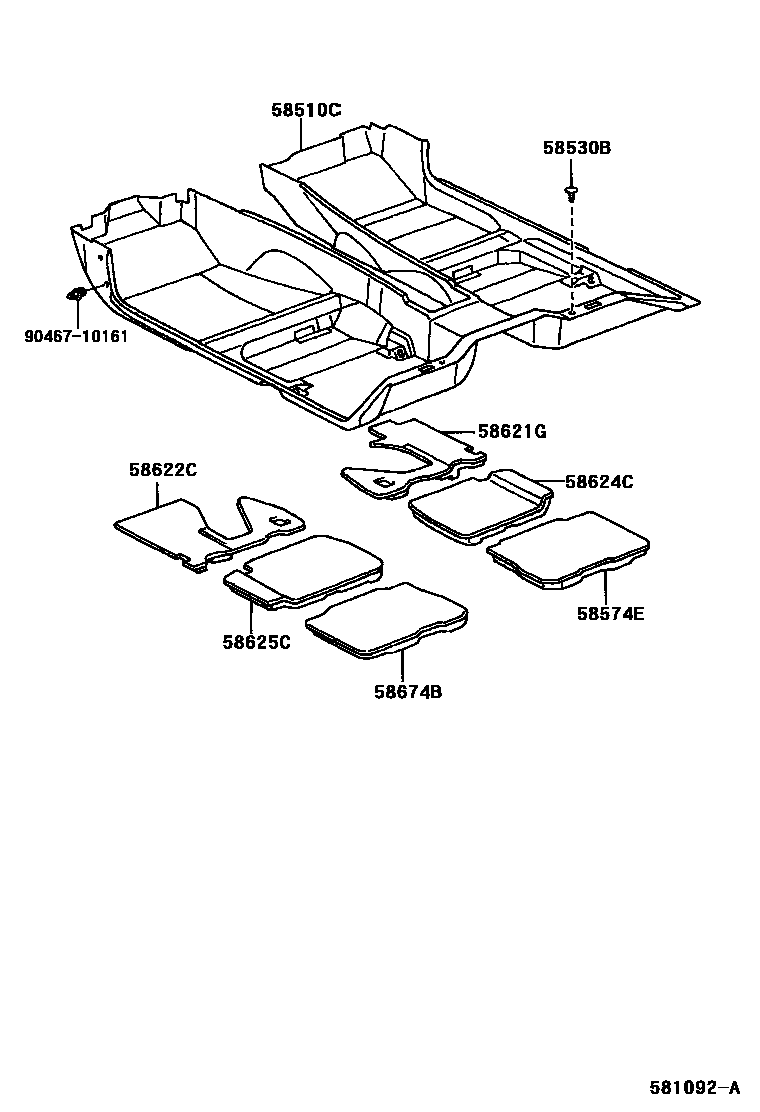

MAT & CARPET

58510CCARPET ASSY, FRONT FLOOR, FRONT

main58510-3K400-A0iJZS175199909-200108

IVORY,TRIM0#

sub58510-3K401

main58510-3K400-B0iJZS175199909-200108

MEDIUM CHARCOAL,TRIM1#

sub58510-3K401

58530BCLIP(FOR FRONT FLOOR CARPET)

main90467-06016-C0×2iJZS175199909-200108

BLACK,TRIM0#,1#

sub90467-07049

58574EPAD, REAR FLOOR SILENCER, NO.1

main58673-30010iJZS175199909-200108

sub58673-30011

58621GPAD, FRONT FLOOR SILENCER, RH

main58621-30140iJZS175200108-200312

sub58621-30141

58622CPAD, FRONT FLOOR SILENCER, LH

main58622-30120iJZS175199909-200108

sub58622-30121

58624CPAD, CENTER FLOOR SILENCER, RH

main58624-30110iJZS175199909-200108

sub58624-30111

58625CPAD, CENTER FLOOR SILENCER, LH

main58625-30060iJZS175199909-200108

sub58625-30061

58674BPAD, REAR FLOOR SILENCER, NO.2

main58674-30010iJZS175199909-200108

sub58674-30011

9046710161

main90467-10161

9 parts on this diagram · 1 diagram in section
