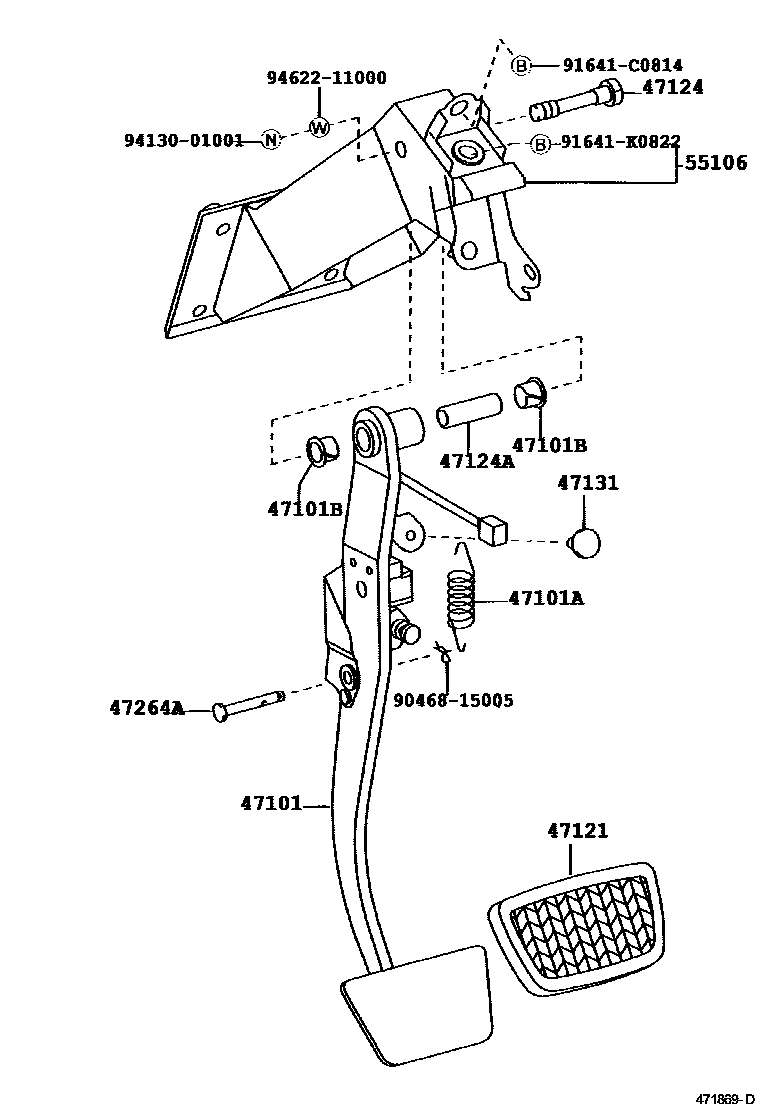

BRAKE PEDAL & BRACKET

47101PEDAL SUB-ASSY, BRAKE

main47106-30010iJZS175199909-200108

47101ASPRING(FOR BRAKE PEDAL RETURN)

main90507-14048iJZS175199909-200108

47101BBUSH(FOR BRAKE PEDAL)

main90386-13015×2iJZS175199909-200108

47121PAD, BRAKE PEDAL

main47121-50010iJZS175199909-200010

main47121-50020iJZS175200010-200108

47124SHAFT, BRAKE PEDAL

main90101-10015iJZS175199909-200108

47124ACOLLAR(FOR BRAKE PEDAL SHAFT)

main90387-10003iJZS175199909-200108

47131CUSHION(FOR STOP LAMP SWITCH)

main90541-06036iJZS175199909-200108

47264APIN(FOR PUSH ROD)

main90249-06180iJZS175199909-200108

55106SUPPORT SUB-ASSY, BRAKE PEDAL

main55106-30340iJZS175199909-199910

main55106-30341iJZS175199910-200006

main55106-30342iJZS175200006-200108

9046815005

main90468-15005

91641C0814

main91641-C0814

91641K0822

main91641-K0822

9413001001

main94130-01001

9462211000

main94622-11000

14 parts on this diagram · 1 diagram in section
