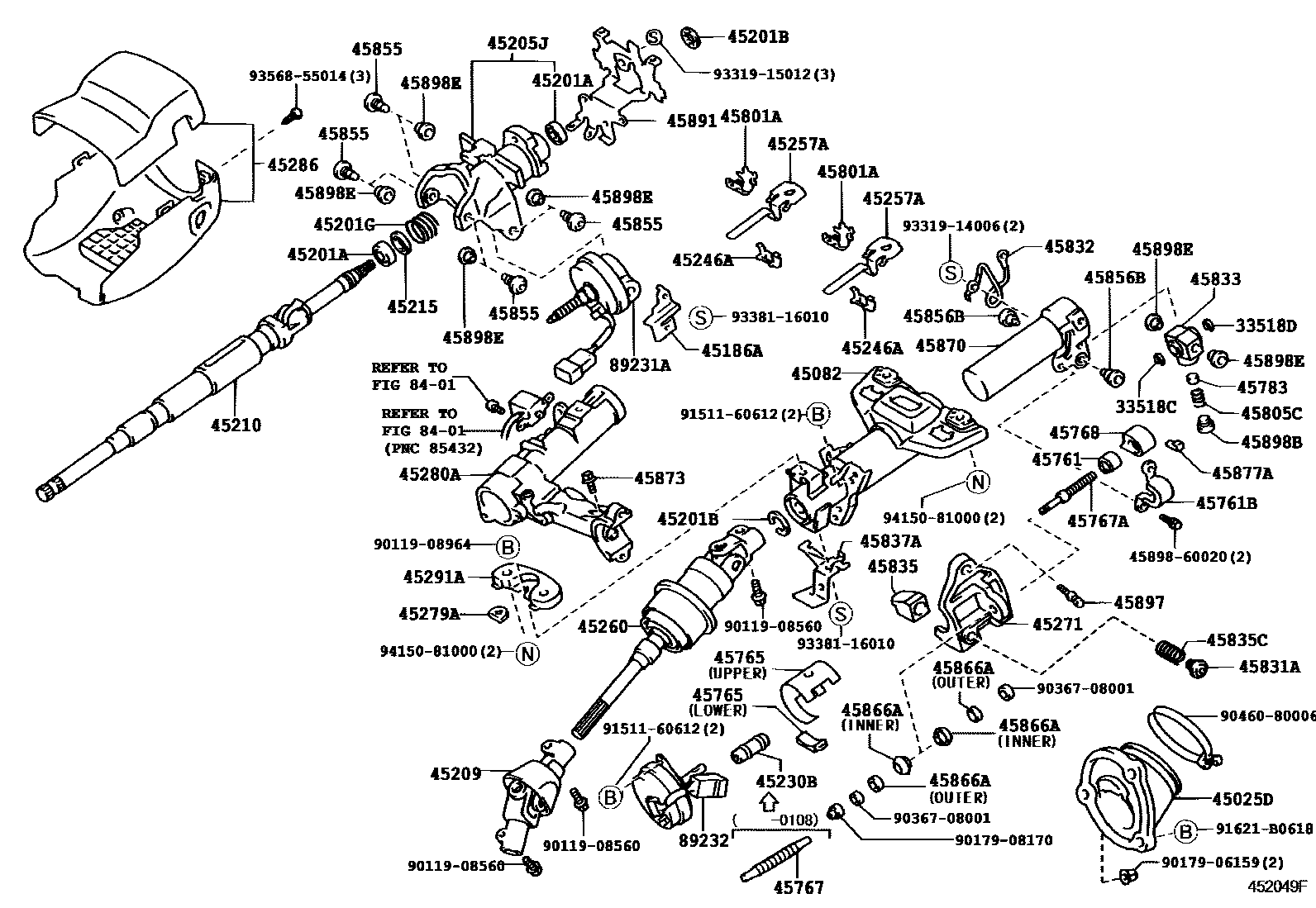

STEERING COLUMN & SHAFT

33518CE RING (FOR TILT MOTOR SHAFT, UPPER)

main90523-06019iJZS175200108-200312

33518DE RING (FOR TILT MOTOR SHAFT, LOWER)

main90523-08001iJZS175199909-200108

45025DCOVER SUB-ASSY, STEERING COLUMN HOLE, NO.1

main45025-30320iJZS175199909-200108

45082BRACKET SUB-ASSY, BREAK AWAY W/CAPSULE

main45082-50090iJZS175199909-200004

main45082-50100iJZS175200004-200108

45186ABRACKET, CONNECTOR, NO.2

main45816-60020iJZS175199909-200108

45201ABEARING(FOR STEERING MAIN SHAFT)

main90363-18005×2iJZS175199909-200108

45201BRING, SHAFT SNAP(FOR STEERING MAIN SHAFT)

main90520-17042iJZS175199909-200108

T=1.20

main90905-20003iJZS175200108-200312

T=0.5

45201GSPRING, COMPRESSION(FOR STEERING MAIN SHAFT)

main90501-40017iJZS175199909-200108

45205JTUBE SUB-ASSY, STEERING COLUMN, UPPER

main45205-30320iJZS175200108-200312

45209YOKE SUB-ASSY, STEERING SLIDING

main45206-51010iJZS175199909-200108

45210SHAFT ASSY, STEERING MAIN

main45210-30171iJZS175199909-199912

45215COLLAR, MAIN SHAFT BEARING THRUST

main45215-12010iJZS175200108-200312

45230BJOINT ASSY, STEERING SHAFT UNIVERSAL

main45230-50020iJZS175200108-200312

45246AGUIDE, STEERING ENERGY ABSORBING PLATE

main45246-12110×2iJZS175199909-200001

main45246-28040×2iJZS175200008-200108

main45246-50040×2iJZS175200001-200008

45257APLATE, STEERING COLUMN ENERGY ABSORBING

main45257-12070×2iJZS175199909-200008

main45257-28010×2iJZS175200008-200108

45260SHAFT ASSY, STEERING INTERMEDIATE, NO.2

main45260-30110iJZS175199909-200108

45271CLAMP, STEERING COLUMN, UPPER

main45271-60030iJZS175199909-200108

45279AATTACHMENT, STEERING COLUMN TUBE, LWR

main45279-33030iJZS175200108-200312

45280ABRACKET ASSY, STEERING COLUMN, UPPER

main45280-30700iJZS175199909-200108

45286COVER, STEERING COLUMN

main45286-30909-B0iJZS175199909-200108

DK.CHARCOAL,TRIM1#

sub45286-30919

main45286-30909-E0iJZS175199909-200108

SANDAL WOOD,TRIM0#

sub45286-30919

45291ASUPPORT, STEERING COLUMN TUBE

main45291-33020iJZS175199909-200108

45761SLIDER, TELESCOPIC STEERING

main45761-60010iJZS175199909-200108

45761BSUPPORT, TELESCOPIC STEERING SLIDER

main45766-60010iJZS175199909-200107

main45766-60011iJZS175200107-200108

45765GUIDE, TELESCOPIC STEERING

main45765-60011iJZS175199909-200108

UPPER

main45765-60021×2iJZS175199909-200108

LOWER

45767CABLE, TELESCOPIC STEERING COLUMN

main45767-50010iJZS175199909-200108

45767ASCREW, TELESCOPIC STEERING

main45811-60010iJZS175199909-200108

45768BUSH, TELESCOPIC STEERING

main45768-60011iJZS175199909-200108

45783STOPPER, TILT STEERING, NO.1

main45783-60010iJZS175199909-200108

45801APIN SUB-ASSY, STEERING ENERGY ABSORBING

main45875-12010×2iJZS175199909-200108

45805CSPRING, COMPRESSION(FOR TILT STEERING SUPPORT)

main90501-14159iJZS175199909-199912

main90504-14007iJZS175199912-200108

45831ABOLT, TELESCOPE LEVER LOCK

main45831-60010×2iJZS175199909-200108

45832CABLE, TILT STEERING SUPPORT BOND

main45832-60010iJZS175199909-200108

45833NUT, TILT STEERING ADJUSTING, NO.1

main45833-60010iJZS175199909-200108

45835WEDGE, LOCK

main45835-60010×2iJZS175199909-200108

45835CSPRING, COMPRESSION(FOR STEERING TELESCOPIC WEDGE LOCK)

main90501-23140×2iJZS175199909-200108

45837ABRACKET, STEERLNG LOWER TUBE, NO.1

main45837-30010iJZS175199909-200108

45855BOLT, TILT STEERING, NO.1

main45855-60010×4iJZS175199909-200108

OD=11.993-11.979

45856BSHAFT, T1LT STEERING, NO.2

main45856-60010×2iJZS175200108-200312

45866ASTOPPER, STEERING MAIN SHAFT BUSH

main45866-60010×2iJZS175200108-200312

INNER

main45866-60020×2iJZS175200108-200312

OUTER

45870TUBE ASSY, STEERING COLUMN

main45870-50020iJZS175199909-200004

main45870-50030iJZS175200004-200108

45873STOPPER, STEERING COLUMN TUBE

main45873-60010iJZS175199909-200108

45877ASPACER, STEERING COLUMN BRACKET

main45877-60011iJZS175200108-200312

45891BRACKET, TURN SIGNAL

main45891-30040iJZS175199909-200108

45897BOLT, STEERING LOCK SET

main45897-12020×2iJZS175199909-200108

45898BBOLT, TILT STEERING SUPPORT STOPPER

main45898-60010iJZS175199909-200108

45898EBUSH(FOR TILT STEERING SUPPORT BOLT)

main90389-08124×6iJZS175199909-200108

8401

89231AMOTOR, POWER TILT

main89231-30040iJZS175199909-200108

89232MOTOR, POWER TELESCOPIC

main89232-30050iJZS175199909-200108

4589860020BOLT, STEERING LOCK SET

main45898-60020

9011908560

main90119-08560

9011908964

main90119-08964

9017906159

main90179-06159

9017908170

main90179-08170

9036708001

main90367-08001

9046080006

main90460-80006

9151160612

main91511-60612

91621B0618

main91621-B0618

9331914006

main93319-14006

9331915012

main93319-15012

9338116010

main93381-16010

9356855014

main93568-55014

9415081000

main94150-81000

63 parts on this diagram · 1 diagram in section
