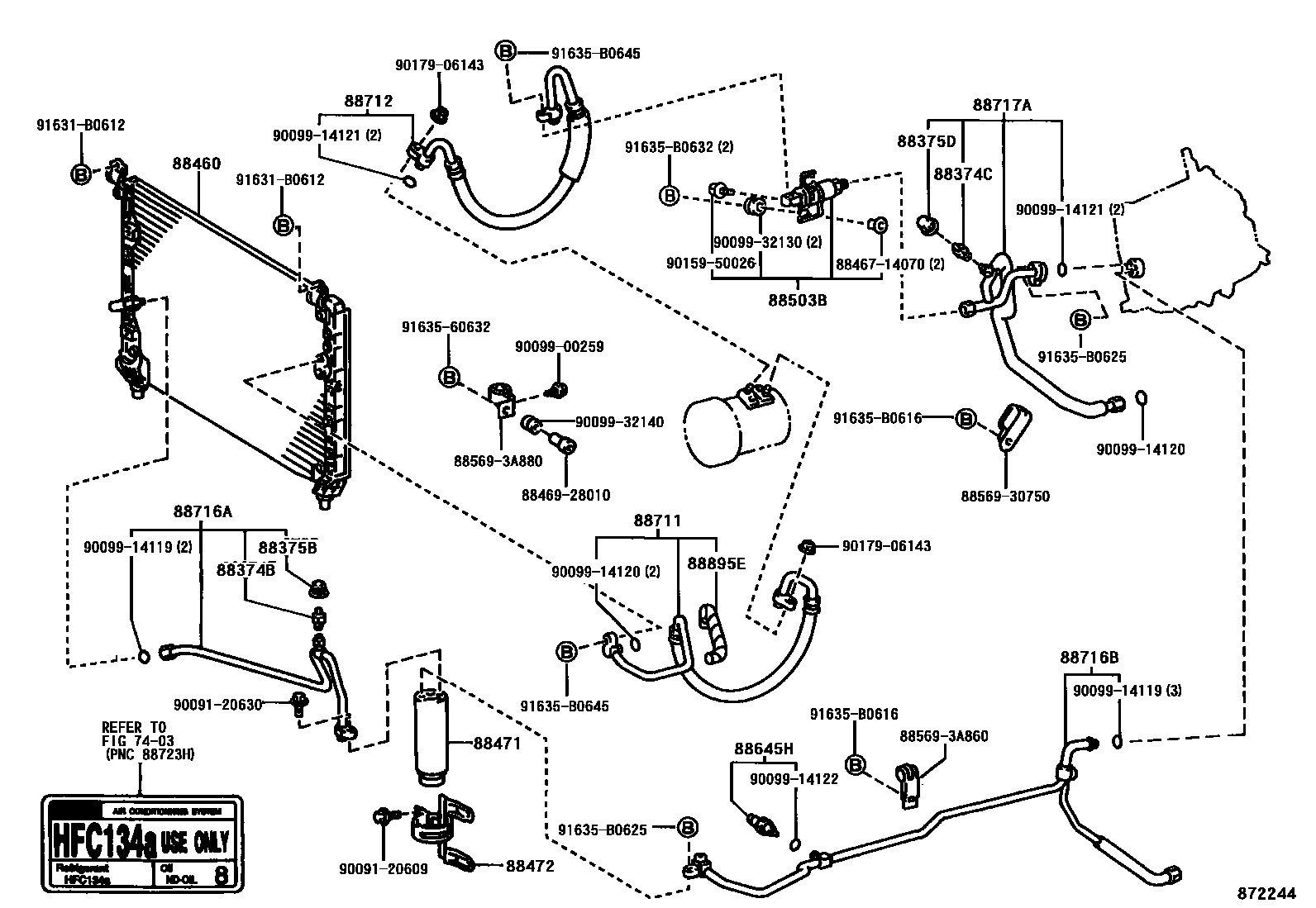

HEATING & AIR CONDITIONING - COOLER PIPING

0001 1FRONT 0002 1FRONT 0003 1FRONT 0004 1FRONT 0005 1REAR 0006 1O RING

7403

88374BVALVE, SERVICE, NO.1

main88374-30010iGS151,JZS155199512

88374CVALVE, SERVICE, NO.2

main88374-30010iJZS155..RHD199512-199908

88375BCAP, SERVICE VALVE, NO.1

main88375-30280iGS151,JZS155199512

88375DCAP, SERVICE VALVE, NO.2

main88375-30290iJZS155..RHD199512-199909

88460CONDENSER ASSY, COOLER

main88460-30730iJZS155..LHD..4FC;JZS155..5F..SPSAL199512-199909

HOT SPEC

main88460-30750iGS151,JZS155..GEN199512

88471TANK, RECEIVER AIR CONDITIONER

main88471-30370iGS151,JZS155199512

88472BRACKET, RECEIVER TANK, NO.1

main88472-30010iGS151,JZS155199512

88503BREGULATOR SUB-ASSY, PRESSURE

main88503-22260iGS151,JZS155..RHD199512

88645HSWITCH, PRESSURE NO.1

main88645-22070iJZS155199512

main88645-22080iGS151199707-199808

88711HOSE, COOLER REFRIGERANT DISCHARGE, NO.1

main88711-3A260iJZS155199512-199707

main88711-3A360iJZS155199707

main88711-3A380iGS151199707-199808

88712HOSE, COOLER REFRIGERANT SUCTION, NO.1

main88712-3A720iJZS155..RHD199512-199909

main88712-3A750iJZS155..LHD199512

main88712-3A760iGS151199707-199808

88716APIPE, COOLER REFRIGERANT LIQUID, A

main88726-30140iGS151,JZS155..GEN199512

main88726-30160iJZS155..GCC199512-199909

HOT AREA SPEC

88716BPIPE, COOLER REFRIGERANT LIQUID, B

main88726-3K080iJZS155..RHD199512-199707

main88726-3K110iJZS155..SPSAL199512-199707

main88726-3K120iJZS155..LHD..ROY199512-199707

W(REAR AIR CONDITIONER)

main88726-3K350iGS151,JZS155..HT199707

main88726-3K360iGS151,JZS155..RHD199707

W(REAR MANUAL AIR CONDITIONER)

main88726-3K390iJZS155..5F..GEN;JZS155..SPSAL..GCC199707-199908

main88726-3K410iJZS155..SPSAL199707

W(REAR MANUAL AIR CONDITIONER)

88717APIPE, COOLER REFRIGERANT SUCTION, A

main88727-3A710iGS151,JZS155..HT199707-199909

main88727-3A720iGS151,JZS155..RHD199512-199909

W(REAR MANUAL AIR CONDITIONER)

main88727-3A820iJZS155..SPSAL199512-199909

main88727-3A850iJZS155..5F..GEN;JZS155..SPSAL..GCC199512-199909

W(REAR MANUAL AIR CONDITIONER)

main88727-3F220iJZS155..4FC..SPSAL..GEN199908

main88727-3F230iJZS155..LHD..ROY..GEN199908

W(REAR MANUAL AIR CONDITIONER)

88895EINSULATOR, RETURN TUBE

main88895-12030iGS151,JZS155199707-199909

8846714070CUSHION, COOLER CONDENSER, NO.1

main88467-14070

8846928010SWITCH, PRESSURE CONTROL

main88469-28010

8856930750CLAMP (FOR COOLER RELAY)

main88569-30750

885693A860CLAMP (FOR COOLER RELAY)

main88569-3A860

885693A880CLAMP (FOR COOLER RELAY)

main88569-3A880

9009120609

main90091-20609

9009120630

main90091-20630

9009900259

main90099-00259

9009914119

main90099-14119

9009914120

main90099-14120

9009914121

main90099-14121

9009914122

main90099-14122

9009932130

main90099-32130

9009932140

main90099-32140

9015950026

main90159-50026

9017906143

main90179-06143

91631B0612

main91631-B0612

9163560632

main91635-60632

91635B0616

main91635-B0616

91635B0625

main91635-B0625

91635B0632

main91635-B0632

91635B0645

main91635-B0645

38 parts on this diagram · 6 diagrams in section
