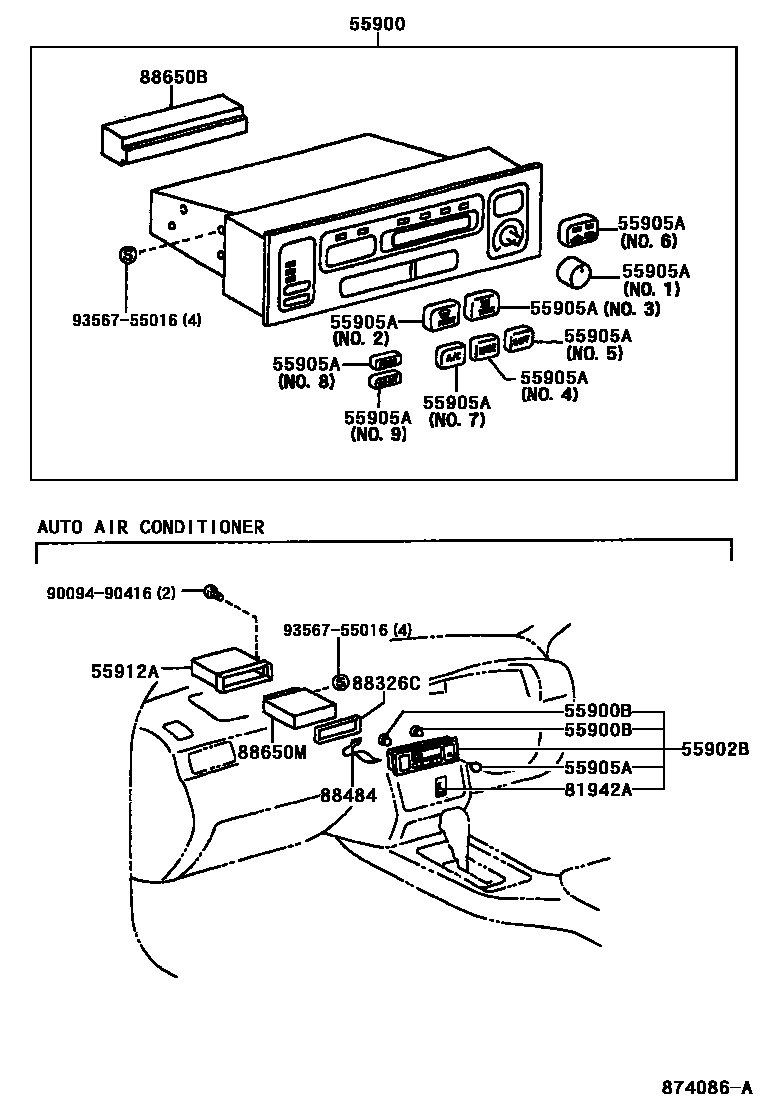

HEATING & AIR CONDITIONING - CONTROL & AIR DUCT
55900BBULB, AIR CONDITIONER CONTROL
7.5V0.38W,W(CAP),LCD
14V1.4W,W(CAP),KNOB
14V 1.4W,W(CAP)
55902BCONTROL SUB-ASSY, HEATER
W(DUAL AIR CONDITIONER)
W(FRONT AUTOMATIC AIR CONDITIONER)
W(REAR COOLER)
W(FRONT AUTOMATIC AIR CONDITIONER)
55905AKNOB, HEATER CONTROL
W(REAR MANUAL AIR CONDITIONER),NO.8
W(REAR MANUAL AIR CONDITIONER),NO.9
W(AUTOMATIC AIR CONDITIONER)
NO.2
NO.3
55912AHOUSING, HEATER CONTROL
81942ASHEET, HEATER CONTROL NAME, NO.1
88326CPLATE, COVER
88484WIRE, COOLER, NO.1
88650BAMPLIFIER ASSY, AIRCONDITIONER
88650MCOMPUTER ASSY, AIR CONDITIONER
W(DUAL AIR CONDITIONER)
W(AUTOMATIC FRONT AIR CONDITIONER)
W(DUAL AIR CONDITIONER)
W(AUTOMATIC FRONT AIR CONDITIONER)
9009490416
main90094-90416
9356755016
main93567-55016
12 parts on this diagram · 4 diagrams in section
