HEATING & AIR CONDITIONING - HEATER UNIT & BLOWER

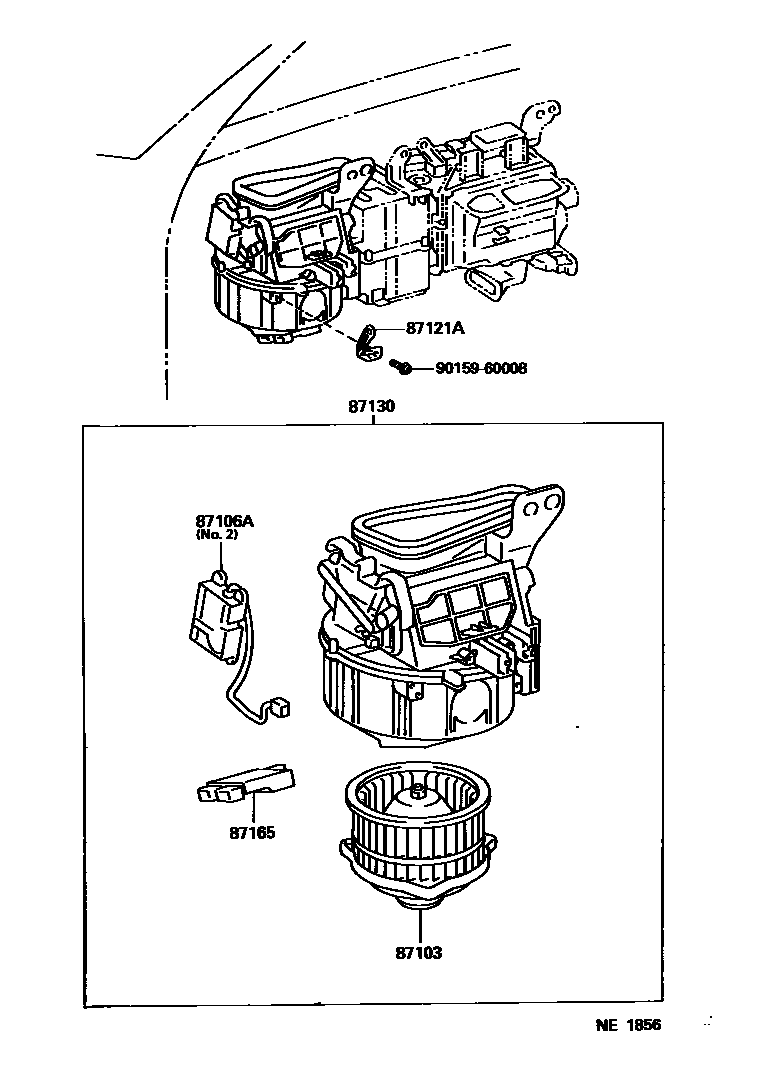

Parts diagram
87103MOTOR SUB-ASSY, HEATER BLOWER, W/FAN
main87103-30310i199512
main87103-30330i199601
main87103-30360i199512-199601
sub87103-30330
87106ASERVO SUB-ASSY, DAMPER
main87106-30180i199512
NO.1
main87106-30260i199512
NO.2
main87106-30290i199512
NO.1
main87106-30310i199512
NO.2
main87106-30320i199512
NO.3
main87106-30330i199512
NO.3
87121ABRACKET, HEATER
main87121-30080i199512
main87121-30090i199512
87130BLOWER ASSY, HEATER, FRONT
main87130-30580i199512-199601
sub87130-30581
main87130-30581i199601-199707
main87130-30600i199512-199908
main87130-30620i199707
main87130-30740i199908
87165CONTROL, BLOWER MOTOR, NO.1
main87165-30030i199512-199811
main87165-30040i199811-199909
sub87165-30030
9015960008
main90159-60008

6 parts on this diagram · 2 diagrams in section
