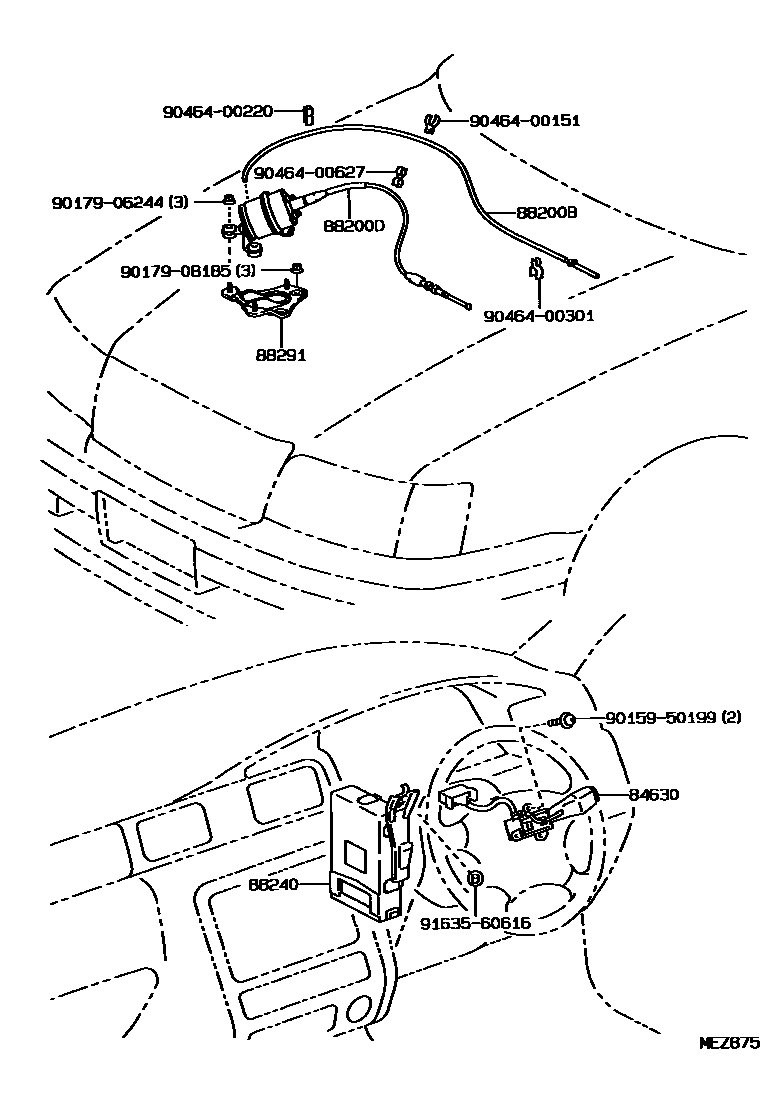

CRUISE CONTROL (AUTO DRIVE)

0001 1 0003 1

84630SWITCH ASSY, CRUISE CONTROL MAIN

main84630-30160iJZS155..ROY199707

main84630-33020iJZS155..4FC..ROY199512-199607

sub84630-26011

main84630-60030iJZS155..4FC..ROY199607-199707

88200BHOSE, CRUISE CONTROL VACUUM

main88283-30120iJZS155..RHD199512-199707

L=860

88200DACTUATOR ASSY, CRUISE CONTROL

main88200-30220iJZS155..RHD199512-199707

main88200-30260iJZS155..LHD..ROY199707-199909

88240COMPUTER ASSY, CRUISE CONTROL

main88240-30310iJZS155..LHD..4FC..ROY199512-199707

main88240-30330iJZS155..RHD199512-199707

main88240-30350iJZS155..LHD..ROY199707-199909

88291BRACKET, CRUISE CONTROL(AUTO DRIVE), NO.1

main88291-22150iJZS155..4FC..ROY199512-199707

main88291-30090iJZS155..LHD..ROY199707-199909

9015950199

main90159-50199

9017906244

main90179-06244

9017908185

main90179-08185

9046400151

main90464-00151

9046400220

main90464-00220

9046400301

main90464-00301

9046400627

main90464-00627

9163560616

main91635-60616

13 parts on this diagram · 2 diagrams in section
